4A B Building Zhuao Industrial Park Gushu Xixiang Baoan District Shenzhen,China,518126 | info@newbridge.com.cn |
Place of Origin: | SHENZHEN,CHINA |
Brand Name: | NEWBRIDGE |
Certification: | CE,FCC |
Model Number: | ND1104-EX11 |
Minimum Order Quantity: | 1PC |
---|---|
Price: | Negotiation |
Packaging Details: | packing can be done by customer's requested, usually used in carton |
Delivery Time: | According to the quantiy and stocking , 3-4 working days after payment |
Payment Terms: | T/T , Western Union |
Supply Ability: | According to the different products , the monthly output is different |
HDMI Resolution: | 3D /1080p/1080i/720p/576p/576i/480p/480i | Max Bandwidth: | 2250MHz |
---|---|---|---|
Max Baud Rate: | 6.75Gbps | Max Working Current: | 12V/1500MA |
Operating Temperature Range: | (-15 To +55 Degree) | Operating Humidity Range: | 82x44x22mm * 4cps |

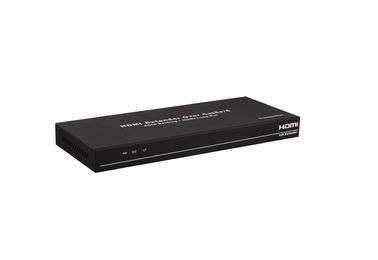

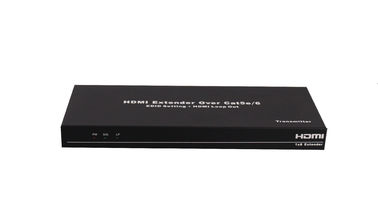

Splitter Extender 1x8 Extend HDMI Signal Over CAT6 Cable up to 60M
FEATURES
1. One HDMI input signal split to five HDMI sink devices(One is the LOOP output, the other four outputs is the RJ45 output)
2. Support 3D 1080P
3. Support deep color 30bit, 36bit
4. Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
5. Digital audio format, as DT-HD/Dol-trueHD/LPCM7.1/DT/Dol-AC/DSD
6. Support signal retiming
7. Support output up to 50metres CAT6 cable
8. No loss of quality
9. Installs in minutes

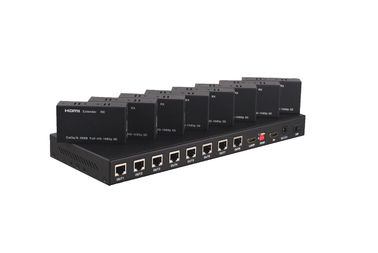

The accessories with the machines lists as below
1. 9 x Power Adaptor
2. 1 x User manual
3. 1 x Extender Splitter
4. 8 x RX

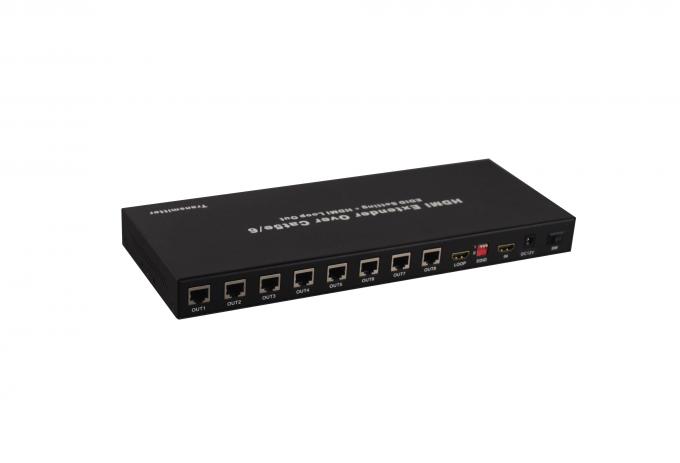

Physical Connection Showing Picture:
CAT1—8 : RJ45 output 1---8 EDID:EDID choose
IN: HDMI input LOOP: HDMI output
DC: 12V power input
Operating and Connecting:
Using HDMI splitter and Receiver pairing, you can achieve the transmission of HDMI signals to 50 meters, through the CAT6 Cable.
SPECIFICATIONS
HDMI resolution : 3D /1080p/1080i/720p/576p/576i/480p/480i
Support video color format : 24bit/deep color 30bit,36bit
Support audio format : DT-HD/Dol-trueHD/LPCM7.1/DT/Dol-AC/DSD
Max bandwidth : 2250MHz
Max baud rate : 6.25Gbps
Input/Output TMDS signal : 0.5~1.5Volts p-p(TTL)
Input/Output DDC signal : 5Volts p-p (TTL)
Input cable distance : ≤10m AWG26 HDMI standard cable
Output cable distance : ≤60m CAT6 cable
Max working current : 12V/1500MA
Power adapter format..Input : AC (50HZ, 60HZ) :100V-240V
Operating Temperature range : (-15 to +55 degree)
Operating Humidity range : 5 to 90%RH (No Condensation)
