| Place of Origin: | SHENZHEN,CHINA |
| Brand Name: | NEWBRIDGE |
| Certification: | CE,FCC |
| Model Number: | ND8210S-SP07 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | packing can be done by customer's requested, usually used in carton |
| Delivery Time: | According to the quantiy and stocking , 3-4 working days after payment |
| Payment Terms: | T/T , Western Union |
| Supply Ability: | According to the different products , the monthly output is different |
| HDMI Version: | HDMI 1.4b | Support Video Format: | Support Video Format |
|---|---|---|---|
| Baud: | 1680g | Max Working Current: | 2.15A |
| HDMI Output: | 4 HDMI | Size: | 460x150x40mm |
4K 1.4b 1 x 4 HDMI Splitter 1 In 4 Out Supporting 3D Video CE Certification
The 1x16 HDMI Splitter uses a single HDMI source,accessing to multiple HDMI sinks. It allows one HDMI device to be split easily to sixteen HDMI compatible monitors or projectors. The Splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.Resolution up to 3840X2160/30Hz.
Feature
★ Support HDMI 1.4b version
★ Support 3D video format
★ Support high resolution up to 3840X2160/30HZ
★ Support highest rate of 3.2 G and TMDS clock can be up to 320 MHz
★ Support 8/10/12 bit deep color
★ Support AWG26 HDMI standard cable: input up to 15 meters,output up to 25 meters.
(when the resolution is 4K, input up to 12 meters, output up to 15 meters.)
★ Support one single HDMI source,accessing to multiple HDMI sinks, the source can be DVD player, A/V receiver, set top box and ect.
★ 5V/1A power adapter
Specifications:
| HDMI version | HDMI 1.4b |
| HDMI resolution | UP TO 3840*2160/30Hz |
| Support video color format | 8/ 10/12bit deep color |
| Support audio format | DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD |
| Max bandwidth | 320MHz |
| Max baud rate | 3.2Gbps |
| Input cable distance | 1080p≤15m,4k≤12m |
| Output cable distance | 1080p≤25m,4k≤15m |
| Max working current | 500mA |
| Specifications of power adapter | Input:AC (50HZ, 60HZ) 100V-240V;output: DC5V/1A |
| Operating Temperature range | (-15 to +55℃) |
| Operating Humidity range | 5 to 90%RH (No Condensation) |
| Dimension (L x W x H) | 178x66x20 mm |
| Weight | 220g |

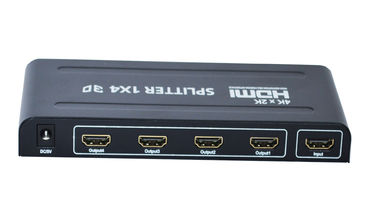

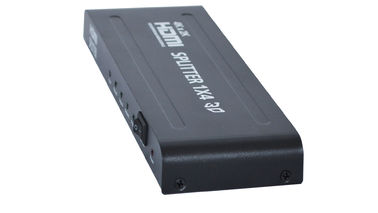

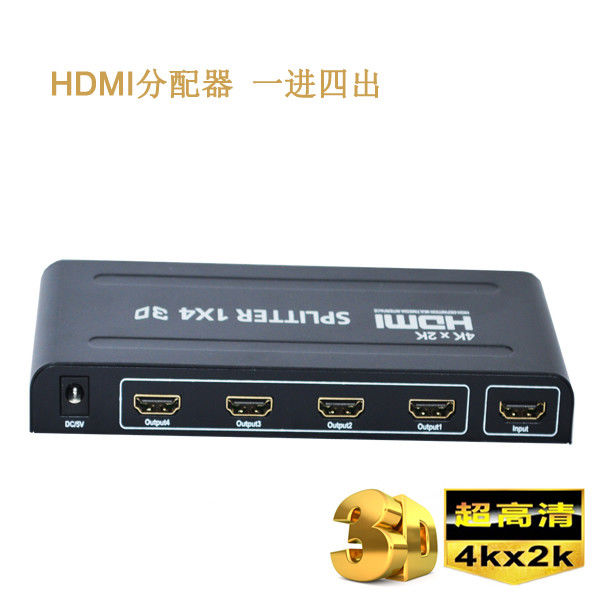

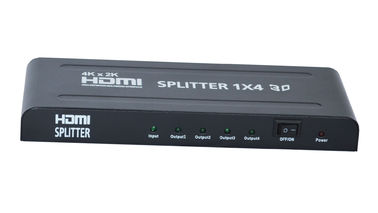

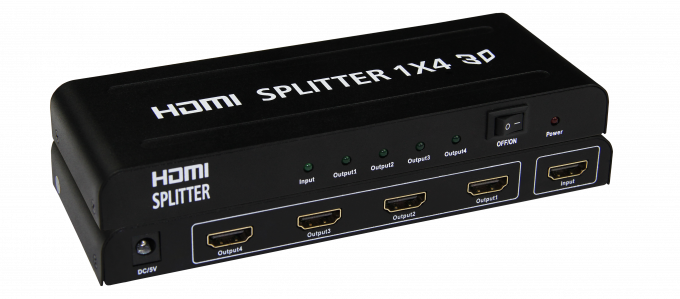

Product photos

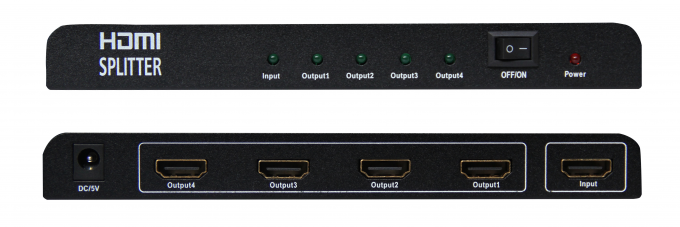

Interface Picture:

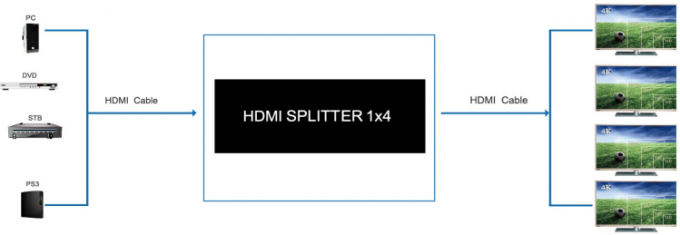

Operating and Connecting:
1. connect the HD source to the splitter input with one hdmi cable
2. connect the splitter output to the displays with 4 hdmi cables
3. connect 5V/1A power adapter to the splitter
The Package includes
1. HDMI splitter
2. Power adapter
3. User Manual
