Place of Origin: | SHENZHEN,CHINA |
Brand Name: | NEWBRIDGE |
Certification: | CE,FCC |
Model Number: | ND-8110HF |
Minimum Order Quantity: | 1PC |
---|---|
Price: | Negotiation |
Packaging Details: | packing can be done by customer's requested, usually used in carton |
Delivery Time: | According to the quantiy and stocking , 3-4 working days after payment |
Payment Terms: | T/T , Western Union |
Supply Ability: | According to the different products , the monthly output is different |
Size: | 113*80*28mm | Optical Fiber Type: | Single Mode |
---|---|---|---|
Wavelength: | 1310nm/1510nm | Transmission Distance: | Default:20km;Max. 80km |
Power: | DC 5V/2A | Humidity: | 5% ~ 90% |

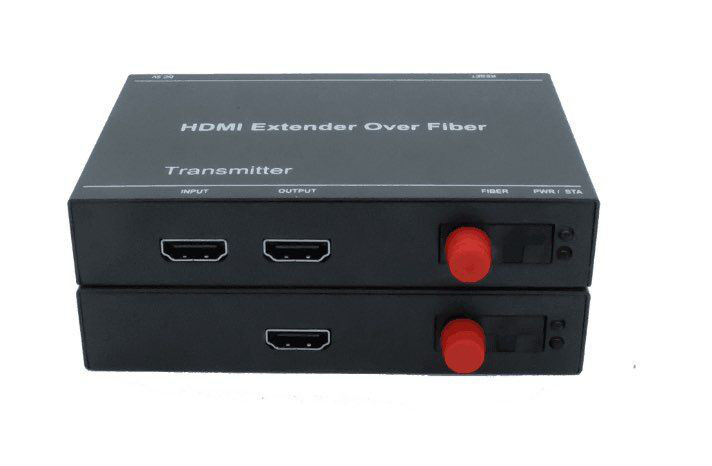

HDMI Fiber Extender single mode fiber optic media converter 20KM 1080p video Transmitter and Receiver
Introduction
ND-8110HF optical fiber extender can transmit high-definition video signals over a single fiber, and support the function of external infrared remote control. It can adapt to many complex application environments. The device has excellent image processing and transmission capabilities, enabling signal transmission to be smoother and stable. It is a reliable, high-performance and efficient way to extend HDMI signal.
Feature
★ Through the long distance transmission of HDMI video and audio signals, up to 20 km;
★ High definition video signal can reach the highest resolution of 1920*1080P@60Hz;
★ The sending side supports 1 HDMI signal local output;
★ Supporting remote infrared control;
★ Compatible with HDMI 1.3 standards;
★ In line with the HDCP 1.2 standard high bandwidth digital content protection technology;
★ Able to automatically identify and configure various display modes;
★ Built-in automatic balance system, the picture is fluent, clear and stable.
★ Built-in ESD electrostatic protection circuit, omni-directional protection system safety;
★ Simple and convenient installation, plug and play, no need to set up;
Parameter
Parameter name | Detailed description | |
vidoe | support agreement | HDMI 1.3; HDCP 1.2 |
Pixel bandwidth | 165MHz | |
The interface bandwidth | 6.75Gbps | |
Max. support resolution | 1920X1080P@60Hz | |
port | HDMI-A | |
impedance | 100Ω | |
Max. Input / output distance | <5m(1920X1080P@60Hz) | |
Infra-red | port | 3.5mm Stereo audio socket |
Signal type | digital signal | |
Signal direction | Unidirectional transmission | |
Input level carrier frequency | 38kHz | |
Optical fiber | Fiber optic interface | SC/FC |
Optical fiber type | single mode | |
wavelength | 1310nm/1510nm | |
Interface bandwidth | 6.25Gbps | |
Max. transmission distance | default:20km;Max. 80km | |
Other | power | DC 5V/2A |
power waste | MAX 5W | |
temperature | -5℃ ~ +70℃ | |
humidity | 5% ~ 90% | |
size | 113*80*28mm | |
Warranty | one year |
