4A B Building Zhuao Industrial Park Gushu Xixiang Baoan District Shenzhen,China,518126 | info@newbridge.com.cn |
Place of Origin: | SHENZHEN,CHINA |
Brand Name: | NEWBRIDGE |
Certification: | CE,FCC |
Model Number: | ND8110HE-200 |
Minimum Order Quantity: | 1pair |
---|---|
Price: | Negotiation |
Packaging Details: | packing can be done by customer's requested, usually used in carton |
Delivery Time: | According to the quantiy and stocking , 3-4 working days after payment |
Payment Terms: | T/T , Western Union |
Supply Ability: | According to the different products , the monthly output is different |
Impedance: | 100Ω | Size: | 160*80*25mm |
---|---|---|---|
IR Frequency: | 20-60kHz | Transmission Distance: | CAT6-200m,CAT5E-150m |
Operating Temperature: | (-5 To +70℃) | Weight: | 370g |

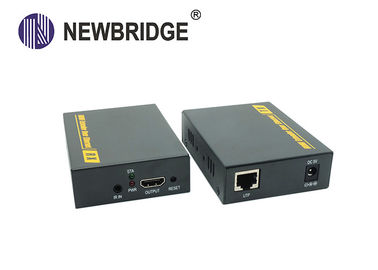

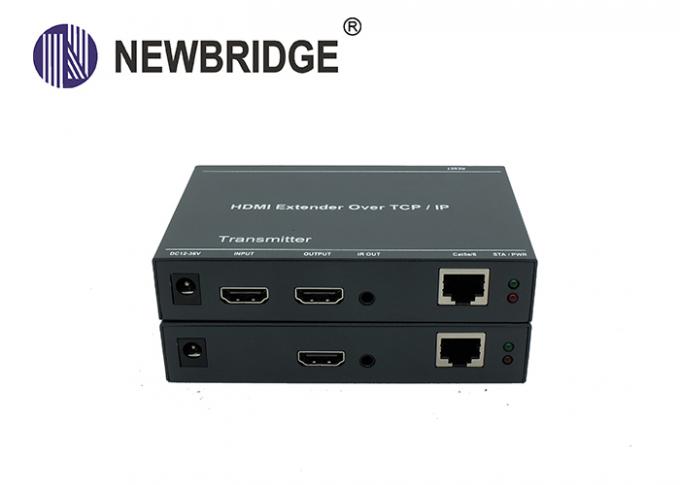

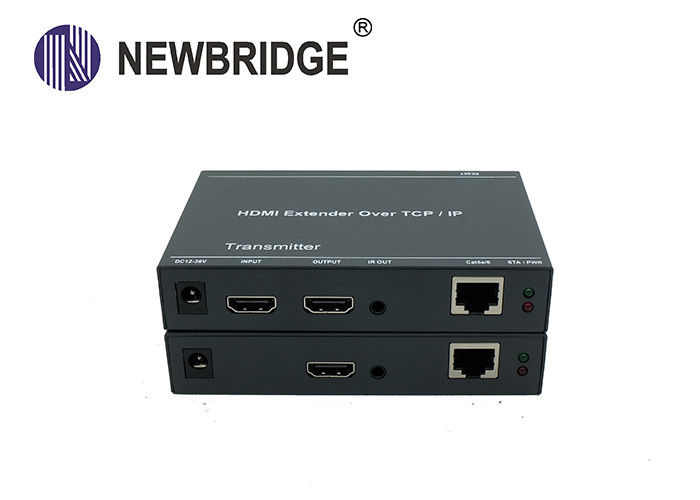

HDMI Extender over TCP/IP up to 200m fiber extender HDMI 1.3 and HDCP 1.2 standard
1. Overview
Newbridge®The euipment provides extension of HDMI signals long distances over a single CAT5e/6 cable up to 200m, it supports high resolution up to 1080p. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security
2.Feature
|
l Apply H.264 technology. l Distance up to 200m over CAT6 cable; l Video resolution max up to 1920*1080@60Hz; l Support 1 to many receivers(253pcs with ethernet switch) l Support wide IR(20-60khz) signal transmission;over TCP/IP. l HDMI 1.3 and HDCP 1.2 standard; l High compatibility, can auto-match source and display device; l Built-in automatic adjustment system, make the image smooth, clear and stable; l Built-in ESD protection system; Simple to install, plug and play; l Compact size TCP/IP Ethernet communication l Ordinary 100M or 1000M Ethernet switch , the extender data is 5-10M,could connect 100pcs RX with 1000M swtich. |
3.Application Diagram

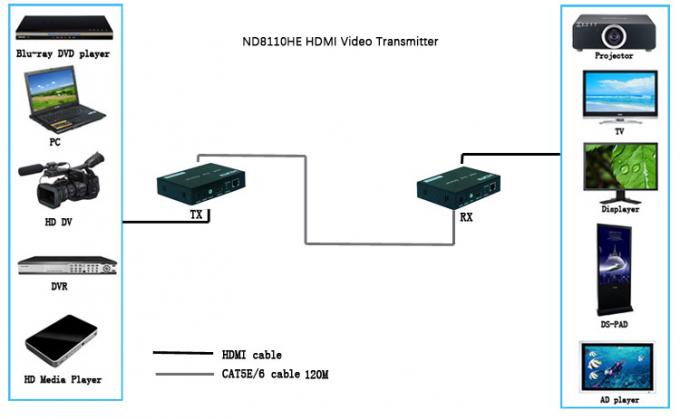

One to one

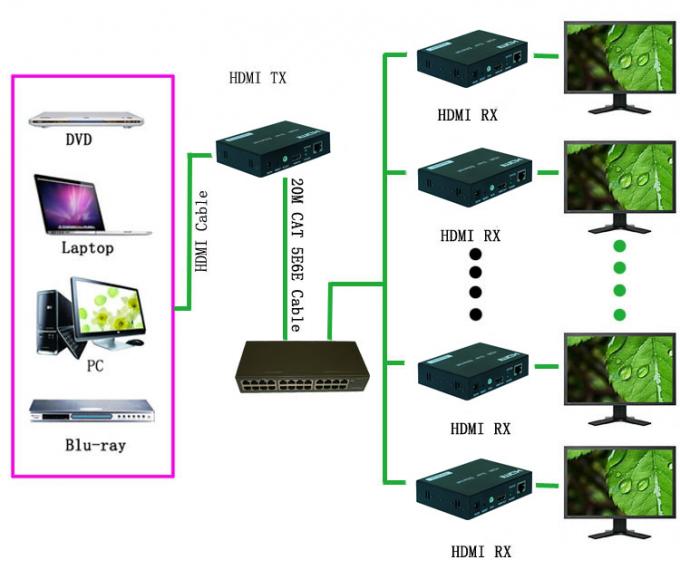

One to many

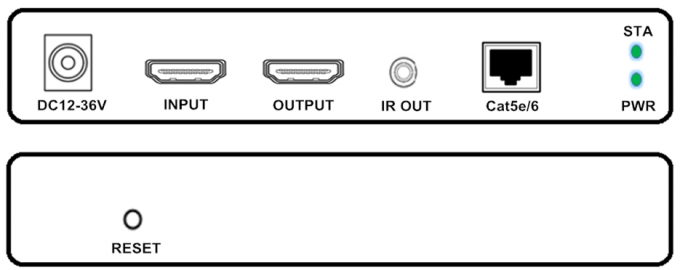

Transmitter:

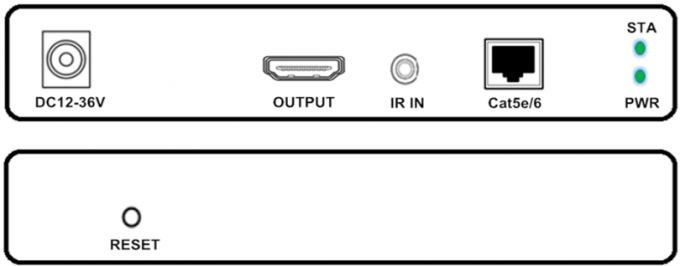

Receiver
Port name | Description |
INPUT/OUTPUT | HDMI signal input/output |
IR IN/OUT | IR signal input/output |
Cat5e/6 | Ethernet interface |
DC12-36V | Power adapter socket |
RESET | Press for 5 second to restore system setting to factory default |
LED indicator | Description |
STA | Video signal connection indicator |
PWR | System power indicator |
5. Specifications
Parameter | Description | |
Video | Standards | HDMI 1.3; HDCP 1.2 |
Maximum pixel clock | 165MHz | |
Maximum data rate | 6.75Gbps | |
Resolution | Max: 1920X1080@60Hz | |
Connector | HDMI-A | |
Impedance | 100Ω | |
IR | Interface | 3.5mm earphone seat |
Signal direction | Unidirectional | |
Signal type | Digital | |
IR frequency | 20-60kHz | |
Ethernet | Interface | RJ45 |
Transmission distance | CAT6-200m,CAT5E-150m | |
Other | Power supply | The power adapter: DC 12-36V |
Power dissipation | MAX 6W | |
Temperature | Operating: -5℃ ~ +70℃ | |
Humidity | Operating: 5% ~ 90% | |
Dimension | 160*80*25mm | |
The warranty | 1 year free warranty |
6. Order Information
Part No | Description of product | Unit |
ND8110HE-200 | HDMI extender,200m,HDMI 1.3; HDCP 1.2,5V1A/DC,up to 1920*1080/60Hz | pc |
