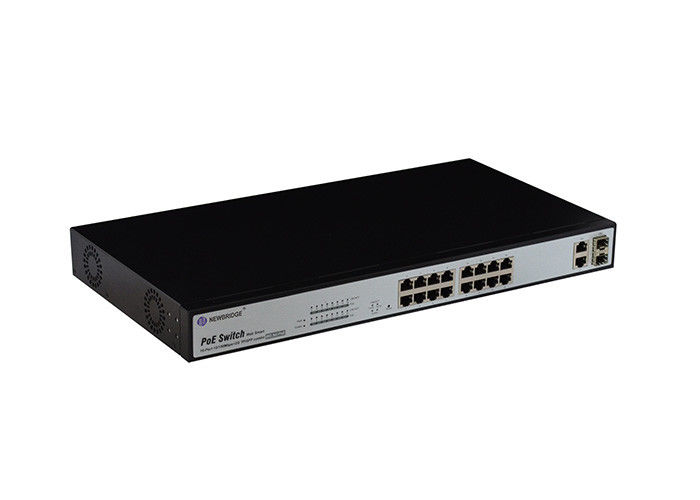

LCD Display 16 Port Ethernet Switch 10 100Mbps 2G TP / SFP AC 240V Accurate

LCD Display 16 Port Ethernet Switch 10 100Mbps 2G TP / SFP AC 240V Accurate

LCD Display 16 Port Ethernet Switch 10 100Mbps 2G TP / SFP AC 240V Accurate

Product Details:

Place of Origin: SHENZHEN,CHINA
Certification: FCC,CE
Model Number: ND-1116F -260

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: packing can be done by customer's requested, usually used in carton
Delivery Time: According to the quantiy and stocking , 3-4 working days after payment
Payment Terms: T/T , Western Union
Supply Ability: According to the different products , the monthly output is different
Contact Now
Detailed Product Description
LCD Display: Support Transfer Mode: Store-and-Forward
Power Input: AC: 100~240V, 50/60Hz Power Output: DC: 55V/ 4.5A, 55V /5.6A (Optional)
PoE Port: Port1~16 PoE Power On RJ45: Mode A 1/2(+),3/6(-)
PoE Power Output: Voltage: 55V DC Power: 32W(Max) PoE Power Budget: 240W/300W (According To The Power)


16-Port 10/100Mbps +2G TP/SFP Combo PoE Switch with LCD Display



Product Overview

PSL1116F is designed by Unipoe company Ethernet switch which has the fun -ction of LCD and PoE . It contains 18 RJ45 ports and 1~16 support PoE functions , The PoE ports can automatically detect and supply power to IEEE802.3af/at compliant Powered Devices (PD). The electrical power and data transmission on the same cable can expand your network to the places where no power lines or outlets, where you can install devices such as APs, IP cameras, or IP phones etc.

The LCD not only can display the PoE work status, accurate judgment port of load, can also help customer and engineer timely discover and solve the network failure, improve work efficiency and quality.




Interface information

  • 16*10/100Mbps RJ45 ports
  • 2*10/100/1000Mbps TP/SFP Combo ports
  • 16 PSE ports

PoE(Power over Ethernet)

  • Complies with IEEE802.3af/at Power over Ethernet
  • Supports PoE Power up to 32W for each PoE port
  • Auto detect power device
  • Remote power and Data feeding up to 100m


  • Flow Control for Full Duplex operation and back pressure for Half Duplex Operation
  • 4K MAC address, automatic address learning and address aging
  • Support LCD display



PoE Features

The PSL1116F can provide up to 32 Watts of power to attached devices, such as VoIP phones, wireless access points; surveillance cameras etc, all over existing cat. 5cables. The switch eliminates the need for individual power sources for devices in the network, saving on costs for power cables and avoiding power outlet availability issues.


LCD Features

PSL1116F is with the function of the LCD display and PoE Ethernet switch. The LCD can display the working condition of PoE port not only, still can accurately show the state of each port, such as: Output power, Overload, Short circuit, Light load, Low voltage, Over voltage,High temperature, and so on...


LCD Display 16 Port Ethernet Switch 10 100Mbps 2G TP / SFP AC 240V Accurate

LCD Display 16 Port Ethernet Switch 10 100Mbps 2G TP / SFP AC 240V Accurate



The PSL1116F providing 16 Port PoE in-line power interfaces , and can easily build a power centrally-controlled IP phone system, IP Camera system and Wireless AP group for the

enterprise. Cameras can be installed around the corner in the company or campus for surveillance demands. Without the power socket limitation, It makes the installation of cameras more easily and efficiently.

LCD Display 16 Port Ethernet Switch 10 100Mbps 2G TP / SFP AC 240V Accurate





Hardware information

Standard IEEE802.3, IEEE802.3u,IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at
Network Media

10BASE-T: UTP category 3,4,5 cable (≤100m)

100BASE-TX: UTP category 5,5e cable (≤100m)

1000BASE-T: UTP category 5e,6 cable(≤100m)

1000BASE-X: SMF or MMF SFP module(Optioanl)

LED Power (Green) PoE (Orange) LINK/ACT(Green) Speed(Green)
LCD Display Support
MAC Address Table 4K, Auto-learning, Auto-aging
Transfer mode Store-and-Forward
Maximum packet length 1536 Byte
Switching Capacity 7.2G
Dimensions (L*W*H) 445*207*45 mm
Fan Fan
Power Input AC: 100~240V, 50/60Hz
Power Output DC: 55V/ 4.5A, 55V /5.6A (Optional)
PoE(Power Over Ethernet)
PoE port Port1~16
PoE Power on RJ45 Mode A 1/2(+),3/6(-)
PoE Power Output Voltage: 55V DC Power: 32W(Max)
PoE Power Budget 240W/300W (According to the power)
Operating Temperature 0°C ~ 40 °C (32 °F ~104°F )
Storage Temperature -40 °C ~ 70 °C (-40 °F ~158°F )
Operating Humidity 10% ~ 90% non-condensing
Storage Humidity 5% ~ 90% non-condensing



Power Supply information


Power Supply PoE Power Budget
55V 240W
55V 300W



Ordering information

Model 10/100Mbps RJ45 Port


TP/SFP Combo

PSE Port Internal Adapter LCD Display PoE Standard
ND-1116F -260 16 2 16 260W





ND-1116F -330 16 2 16 330W
