DC 12V Hdmi To Hd Sdi Converter SDI Signal Loop Out With 158×120×36mm Size

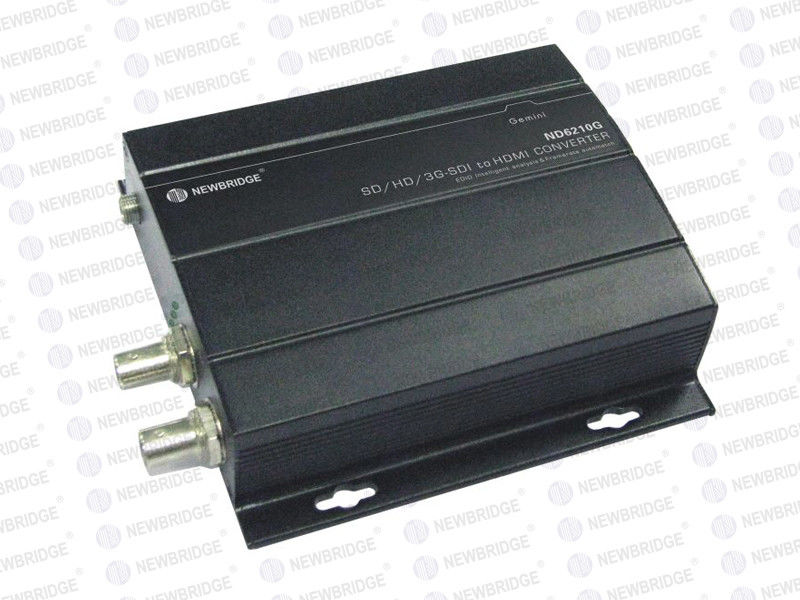

: Large Image : DC 12V Hdmi To Hd Sdi Converter SDI Signal Loop Out With 158×120×36mm Size

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	NEWBRIDGE
Certification:	FCC,CE
Model Number:	ND-6210G

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiation
Packaging Details:	packing can be done by customer's requested, usually used in carton
Delivery Time:	According to the quantiy and stocking , 3-4 working days after payment
Payment Terms:	T/T , Western Union
Supply Ability:	According to the different products , the monthly output is different

Contact Now

Detailed Product Description

Size:	158×120×36mm	InputInterface:	Sdi
PowerSupply:	DC 12V	PowerConsumption:	3~6 Watts
StorageTemperature:	-30°C~70°C/-22°F~158°F	RelativeHumidity:	20~90%RH

1080P HDMI to HD/SD/3G-SDI Converter with SDI signal loop out

Newbridge® ND6210G converter is an equipment which is exclusive using in converting single channel SDI signal to HDMI signal It integrates SDI transmitter and HDMI demodulator which conveniently converts SDI signal to HDMI signal, at the mean time, it will separate and convert SDI signal ‘s audio signal ,and then it will embed it to HDMI signal synchronously to realize the video and audio transmitting synchronously

Feature

◆ Support all type SDI resolution:
SD-SDI:480i,576i
HD-SDI:720p24/25/30/50/59.94/60 all frame rate.
1080i all frame rate,1035i all frame rate
1080p all frame rate
3G-SDI:1080p all frame rate Support
◆ Carry 1 channel SDI signal loop out.
◆ Support digital video formats in Deep Color Mode at up to 12bits/color.
◆ Support full HDMI audio and video.
◆ Support 1channel stereo Audio signal output separately ,So it is convenient to connect public-address system

Specification

Model	ND-6210G
InputInterface Type	1xBNCSDI
Input Signal	SD-SDI(270Mbps), HD-SDI(1.485Gbps),3G-SDI (2.97Gbps)
SupportInputFormat	SD:525i@ 59.94Hz,625i@ 50Hz HD:720p@ 50Hz/ 59.94Hz/ 60Hz 1080i@50Hz/59.94Hz/ 60Hz 1080p@23.98Hz/24Hz/25Hz/29Hz/30Hz 3G:1080p@ 50Hz/ 59.94Hz/ 60Hz
SDISignalRange	0.8Vp-p
SDIImpedance	75ohms
SDICouplingType	ACCoupling
Max.InputCoaxLength	Belden1694A SD-SDI 400m/ 1300ft ; HD-SDI 200m/ 600ft ; 3G-SDI140m/ 450ft
SDILoopOutInterface	1xBNCSDI
HDMI/DVIOutputInterface	1xHDMI
Audio Output Interface	1xAudio
FrequencyBandwidth	165MHz/upto standardwithHDCP:HDMI1.3
Power Supply	5~24DC
Power Consumption	3~5Watts
OperatingTemperature	-10°C~60°C/14°F~140°F
Storage Temperature	-30°C~70°C/-22°F~158°F
RelativeHumidity	20~90%RH(Non-condensation)
Dimension	158×120×36mm/6.22×4.72×1.42in
Weight	280g

Connection diagram

DC 12V Hdmi To Hd Sdi Converter SDI Signal Loop Out With 158×120×36mm Size

Order information

Part No	Description of product	Unit
ND-6210G	HDMI to SD/HD/3G-SDI Converter	pcs
