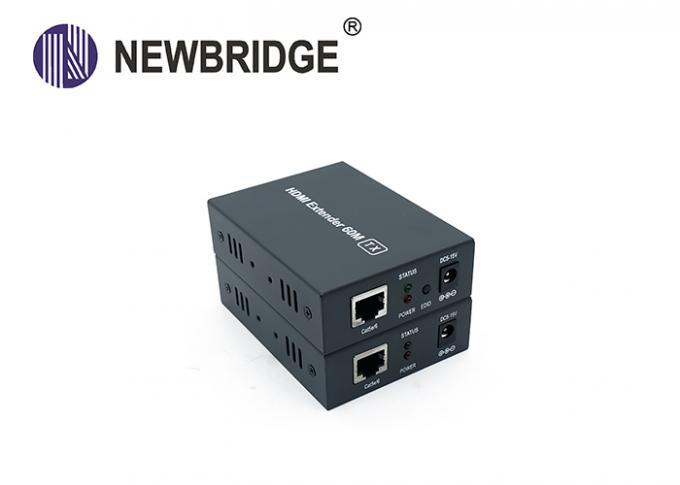

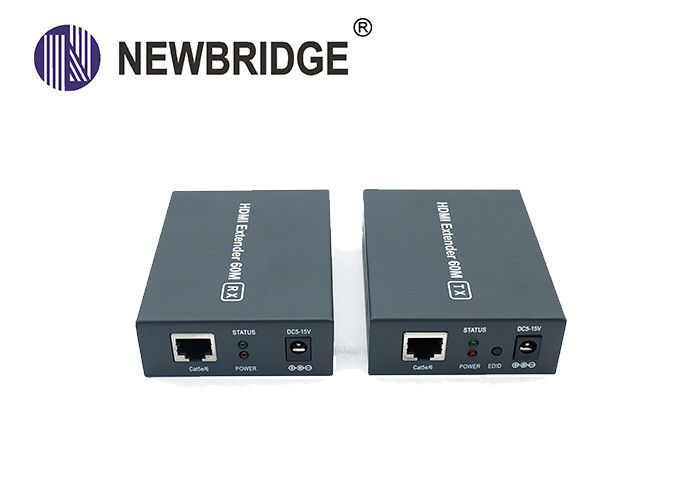

3 Watt Hdmi Over Fiber Optic Extender 1920*1200 Video Resolution 1 Year Warranty

3 Watt Hdmi Over Fiber Optic Extender 1920*1200 Video Resolution 1 Year Warranty

3 Watt Hdmi Over Fiber Optic Extender 1920*1200 Video Resolution 1 Year Warranty

Product Details:

Place of Origin: SHENZHEN,CHINA
Brand Name: NEWBRIDGE
Certification: CE,FCC
Model Number: ND8110HE-60

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: packing can be done by customer's requested, usually used in carton
Delivery Time: According to the quantiy and stocking , 3-4 working days after payment
Payment Terms: T/T , Western Union
Supply Ability: According to the different products , the monthly output is different
Contact Now
Detailed Product Description
Dimension: 94.5*71*26mm Humidity(stored): 5% ~ 90%
Transmitter Power Supply: DC 5-15V Stereo Audio Interface: 1xRJ45
Transmission Distance: CAT6-60M Temperature(stored): -5℃ ~ +70℃

Fiber Optic Extender HDMI Extender over TCP/IP up to 60m support video resolution up to 1920*1200@60Hz, 3D signal



1. Overview

3 Watt Hdmi Over Fiber Optic Extender 1920*1200 Video Resolution 1 Year WarrantyNewbridge® The euipment provides extension of HDMI signals long distances over a single CAT6 cable , it supports high resolution up to 1920*1200P . The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.



2.Feature



3 Watt Hdmi Over Fiber Optic Extender 1920*1200 Video Resolution 1 Year Warranty

  • Transmits HDMI video and audio signals up to 60M over a single CAT6 cable;
  • Support video resolution up to
  • 1920*1200@60Hz, 3D signal;
  • Support copy EDID function, can match many kind display device;
  • Compliance with HDMI 1.3 and HDCP 1.2 standard;
  • High compatibility, can auto-match source and display device;
  • Built-in automatic adjustment system, make the image smooth, clear and stable;
  • Built-in ESD protection system;

Simple to install, plug and play

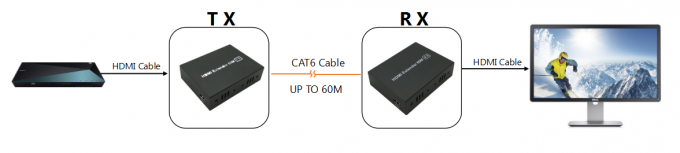

3.Application Diagram



3 Watt Hdmi Over Fiber Optic Extender 1920*1200 Video Resolution 1 Year Warranty

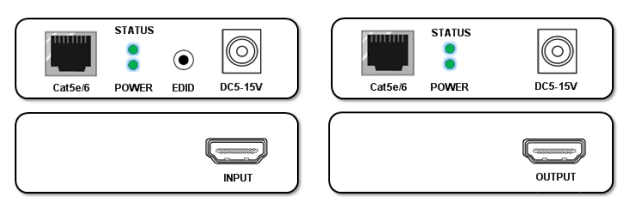

  • Panel



3 Watt Hdmi Over Fiber Optic Extender 1920*1200 Video Resolution 1 Year Warranty



Port name Description
INPUT/OUTPUT HDMI signal input/output
Cat5e/6 RJ45 port connect cat5e/6.
DC5-15V Power adapter socket
EDID EDID button, press 3 second to copy EDID form displayer that connect TX INPUT port.
LED indicator Description
POWER System power indicator
STATUS

Video signal indicator.

Copy EDID indicator







5. Specifications



Parameter Description
Video Standards HDMI 1.3; HDCP 1.2
Maximum pixel clock 165MHz
Maximum data rate 6.75Gbps
Maximum resolution 1920*1200@60Hz
Connector HDMI-A
Impedance 100Ω
UTP Interface RJ45
Transmission distance CAT6-60M
Other Power supply The power adapter: DC 5-15V
Power dissipation MAX 3W
Temperature Operating: -5℃ ~ +70℃
Humidity Operating: 5% ~ 90%
Dimension 94.5*71*26mm
The warranty 1 year free warranty



6. Order Information



Part No Description of product Unit
ND8110HE-60 HDMI extender,60m,HDMI 1.3; HDCP 1.2,5V1A/DC,up to 1920*1080/60Hz pc
