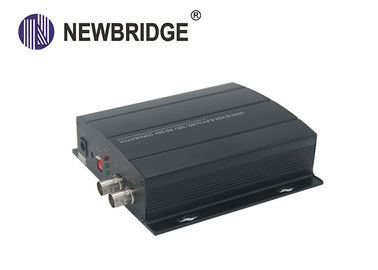

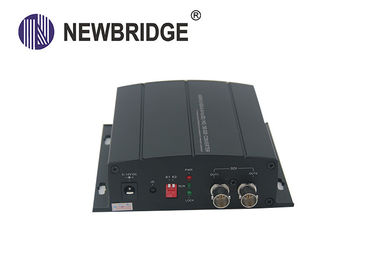

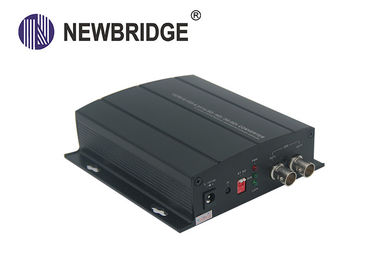

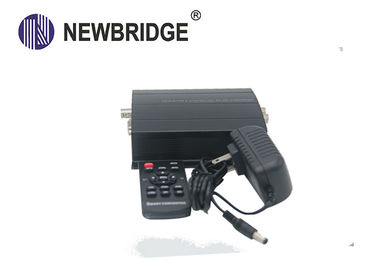

5V~24VDC Hdmi To Hd Sdi Converter 720p/1080p With 2 Channel SDI Signal Out

    • 5V~24VDC Hdmi To Hd Sdi Converter 720p/1080p With 2 Channel SDI Signal Out
    • 5V~24VDC Hdmi To Hd Sdi Converter 720p/1080p With 2 Channel SDI Signal Out
    • 5V~24VDC Hdmi To Hd Sdi Converter 720p/1080p With 2 Channel SDI Signal Out
    • 5V~24VDC Hdmi To Hd Sdi Converter 720p/1080p With 2 Channel SDI Signal Out
    • 5V~24VDC Hdmi To Hd Sdi Converter 720p/1080p With 2 Channel SDI Signal Out
  • 5V~24VDC Hdmi To Hd Sdi Converter 720p/1080p With 2 Channel SDI Signal Out

    Product Details:

    Place of Origin: SHENZHEN,CHINA
    Brand Name: NEWBRIDGE
    Certification: FCC,CE
    Model Number: ND-6325

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Price: Negotiation
    Packaging Details: packing can be done by customer's requested, usually used in carton
    Delivery Time: According to the quantiy and stocking , 3-4 working days after payment
    Payment Terms: T/T , Western Union
    Supply Ability: According to the different products , the monthly output is different
    Contact Now
    Detailed Product Description
    Size: 158×120×36 Mm InputInterface: 1xBNCSDI
    PowerSupply: 5V~24V DC PowerConsumption: 3~6 Watts
    StorageTemperature: -30°C~70°C/-22°F~158°F RelativeHumidity: 20~90%RH

    HDMI&VGA&AV to SD/HD/3G-SDI Converter HD Video Converter Carry 2 Channel SDI Signal Out



    Newbridge® ND6325 HDMI & VGA & AV to SD HD 3G-SDI Converts a single channel HDMI signals or VGA signals or AV(CVBS) signal to SD HD 3G-SDI signals It integrates SDI Cable equalizer and re-clocker to enhance video performance and stability Simultaneously, it also Integrates and converts the audio signals of CABS or VGA, then embed it to SDI signal It supports multiple resolution up to 1920x1080@60HZ



    Feature

    ◆ Support all type SDI resolution
    ◆ SMPTE 425M (A level and B level), SMPTE424M, SMPTE292M, SMPTE259M-C.
    ◆ Carry 2 channel SDI signal out.
    ◆ Support for OSD menu operation interface
    ◆ Automatically detect the HDMI EDID information adaptive HDMI best mode
    ◆ Support all formats asymmetric conversion
    ◆ The signal lost blue screen warning
    ◆ VGA output format can be specified 720p/1080p
    ◆ Automatically embed SDI audio signal to HDMI signal.
    ◆ User selectable output format



    Specification
    Model ND-6325
    HDMI Input 1xHDMI
    VGAInput 1xVGA
    AV (CVBS) Input 1xBNC –F



    InputSignalType

    SD-SDI(270Mbps), HD-SDI(1.485Gbps),

    3G-SDI(2.97Gbps)

    SupportInputFormat

    SD:525i@ 59.94Hz,625i@ 50Hz

    HD:720p@ 23.98Hz/ 24Hz/ 25Hz/ 29.97Hz/ 30Hz

    720p@ 50Hz/ 59.94Hz/ 60Hz

    1080i@50Hz/59.94Hz/ 60Hz

    1080p@ 23.98Hz/ 24Hz/ 25Hz/ 29.97Hz/ 30Hz

    3G:1080p@ 50Hz/ 59.94Hz/ 60Hz

    SDISignalRange 0.8Vp-p
    SDIImpedance 75ohms
    SDICouplingType AC Coupling
    Max.OutputCoaxLength

    Belden1694A

    SD-SDI 400m/ 1300ft ; HD-SDI 200m/ 600ft ;

    3G-SDI140m/ 450ft

    SDIOutInterface 2xBNCSDI
    FrequencyBandwidth 165MHz/upto standardwithHDCP:HDMI1.3
    Power Supply 5V~24VDC
    Power Consumption 3~6Watts
    OperatingTemperature -10°C~60°C/14°F~140°F
    StorageTemperature -30°C~70°C/-22°F~158°F
    RelativeHumidity 20~90%RH(Non-condensation)
    Dimension 158 × 120× 36 mm / 6.22 × 4.72× 1.42 in
    Weight 300g





    Connection diagram

    5V~24VDC Hdmi To Hd Sdi Converter 720p/1080p With 2 Channel SDI Signal Out



    Order information

    Part No Description of product Unit
    ND-6325 HDMI&VGA&AV to SD/HD/3G-SDI Converter pcs









    5V~24VDC Hdmi To Hd Sdi Converter 720p/1080p With 2 Channel SDI Signal Out

    5V~24VDC Hdmi To Hd Sdi Converter 720p/1080p With 2 Channel SDI Signal Out
