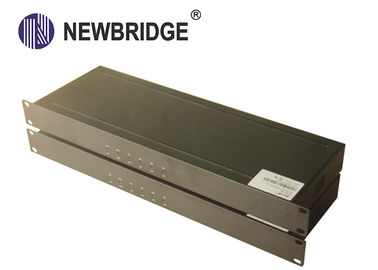

SD HD SDI Converter , 20km 40km 60km Optional Mini Converter with single mode or single fiber

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	NEWBRIDGE
Certification:	FCC,CE
Model Number:	ND-8014MD

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiation
Packaging Details:	packing can be done by customer's requested, usually used in carton
Delivery Time:	According to the quantiy and stocking , 3-4 working days after payment
Payment Terms:	T/T , Western Union
Supply Ability:	According to the different products , the monthly output is different

Contact Now

Detailed Product Description

Model:	ND8014MD	Wave Length:	1310nm/1550nm
Signal Type:	SD-SDI(270Mbps)/HD-SDI(1.485Gbps)	Power Supply:	AC110V/220V
Storage Temperature:	-30°C ~ 70°C / -22°F ~158°F	Dimension:	48016243mm/18.96.381.69inches

SD HD SDI Converter , 20km 40km 60km Optional Mini Converter with single mode or single fiber

1. Overview

Newbridge® ND8014MD SD/HD-SDI series Optical Transceivers are a group of perfect and economic transmission device to transmit 4CH/8CH SD/HD-SDI video to up to further distance by one fiber cable, embedded audio and RS485 data via fiber-optic.

Transmitter is used as sending and Receiver is used as receiving .System support in accordance with SMPTE292M, SMPTE259M standard, as well as DVB-ASI (EN50083-9) digital TV signal format.

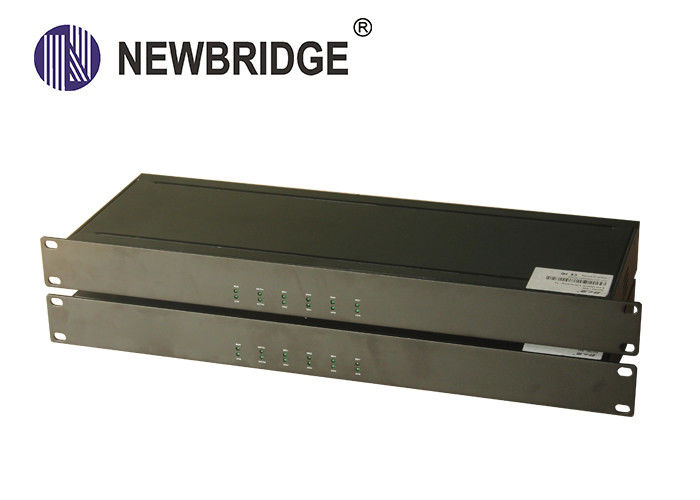

SD HD SDI Converter , 20km 40km 60km Optional Mini Converter with single mode or single fiber

ND-8014MD

l Support 4channel SD/HD-SDI video

l SD,HD auto-detection, supported transmission rate from 270M bit/s to 1.485G bit/s

l Transmission distance is from 0km to 60KM via multimode fiber or single mode fiber.

l Support SMPTE 259M (1.485Gbps),SMPTE 259M (270Mbps) and DVB-ASI

l With 2 piece ADD-card option as below:4 Bi-directional data card(RS232);

4 Bi-directional data card(RS485/RS422); 4 Bi-directional Audio card; 4 Bi-directional Alarm switch card; 4 PCM telephone card(FXO/FXS)

l With 2CH Bi-Di data, and 1ch network interface

l Support plug and play function

l Operation status indication by LED

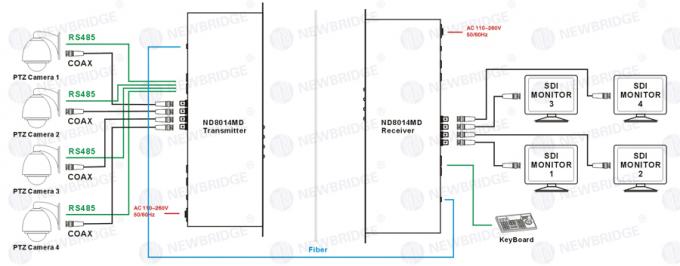

3．Application Diagram

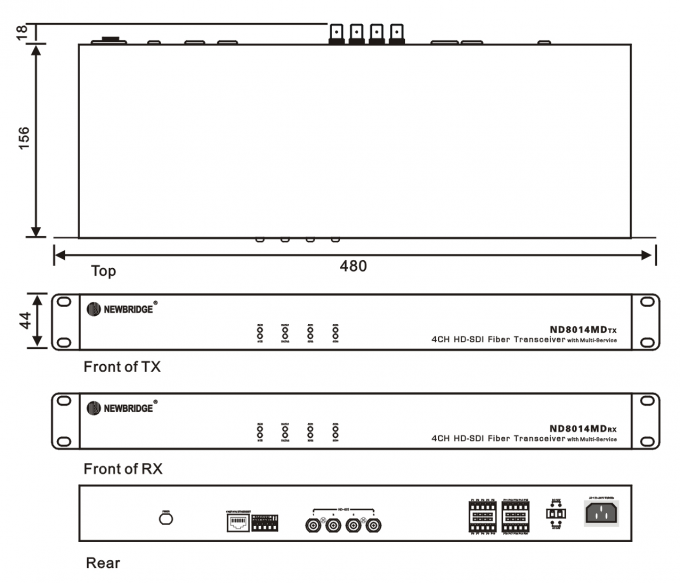

4. Dimensions

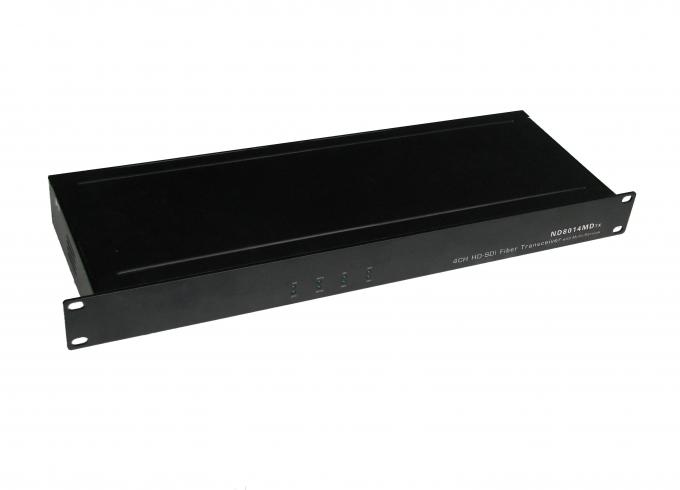

SD HD SDI Converter , 20km 40km 60km Optional Mini Converter with single mode or single fiber

ND8014MD

5. Specifications

Model/Name	ND-8014MD
Quantity/Type	Single Mode, Single Fiber
Video port	4CH BNC SD/HD-SDI
Transmission Distance	0m-20km/40km/60km optional
Fiber Connector	FC
Wave Length	1310nm/1550nm
Transmitted power	-10dbm～-3dbm
Maximum Receiving Sensitivity	-34dbm
Signal Type	SD-SDI(270Mbps)/HD-SDI(1.485Gbps)
Support Input Format	SD: 525i @ 59.94Hz, 625i @ 50Hz HD: 720p @ 25Hz / 29.97Hz / 30Hz 720p @ 50Hz / 59.94Hz / 60Hz 1080i @ 50Hz / 59.94Hz / 60Hz 1080p @23.98Hz/24Hz/25Hz/29Hz/30Hz
Video Standard	SMPTE 292M , SMPTE 259M
DATA comm. method	2CH RS-485/Half duplex/ Industrial terminals
Ethernet port	1 RJ45
In-out electrical level	800mVp-p±10%
In-0ut Ohm	75Ohm
Digital Audio	48KHz
AES digital audio channel	8CH
Power Supply	AC110V/220V
Power Consumption	3~5 Watts
Operating Temperature	0°C ~ 60°C / 32°F ~ 140°F
Storage Temperature	-30°C ~ 70°C / -22°F ~158°F
Relative Humidity	20~90% RH (Non-condensation)
Dimension	48016243mm/18.96.381.69in
Weight	2880g(Tx and Rx)

6. Order Information

Part No	Description of product	Unit
ND-8014MD-Tx	SD/HD-SDI Optical-Transmitter Multi-Service	pcs
ND-8014MD-Rx	SD/HD-SDI Optical-Receiver Multi-Service	pcs
