Place of Origin: | SHENZHEN,CHINA |
Brand Name: | NEWBRIDGE |
Certification: | CE,FCC |
Model Number: | ND8110HE-120 |
Minimum Order Quantity: | 1pair |
---|---|
Price: | Negotiation |
Packaging Details: | packing can be done by customer's requested, usually used in carton |
Delivery Time: | According to the quantiy and stocking , 3-4 working days after payment |
Payment Terms: | T/T , Western Union |
Supply Ability: | According to the different products , the monthly output is different |
Input/Output HDMI1.3 Cable Distance: | .≤15m AWG26 HDMI 1.3 Standard Cable | Size: | 81x70x25(mm) |
---|---|---|---|
Max Working Current: | 400mA | Relative Humidity: | 17 - 90% RH |
Operating Temperature: | (-15 To +75℃) | Weight: | 370g |

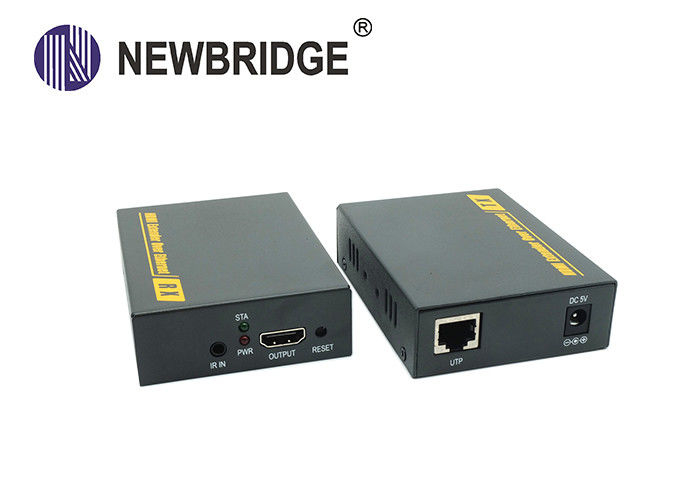

HDMI Extender over single CAT6 up to 120m fiber optic extender Compliance with HDMI 1.3 and HDCP 1.2 standard
1. Overview
Newbridge®The euipment provides extension of HDMI signals long distances over a single CAT5e/6 cable up to 120m, it supports high resolution up to 1080p. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security
2.Feature
|
l Transmits HDMI video and audio signals up to 120m over a single CAT5e/6 cable; l Support video resolution up to 1920*1080P@60Hz; l Support one to many application with Ethernet switch; l Compliance with HDMI 1.3 and HDCP 1.2 standard; l High compatibility, can auto-match source and display device; l Built-in automatic adjustment system, make the image smooth, clear and stable; l Built-in ESD protection system; l Simple to install, plug and play; |
3.Application Diagram

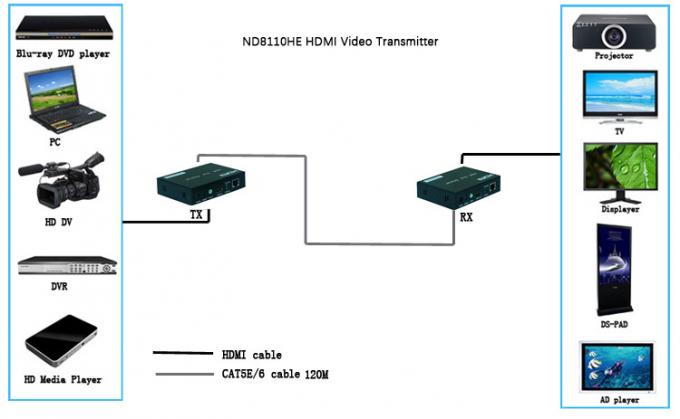

One to one

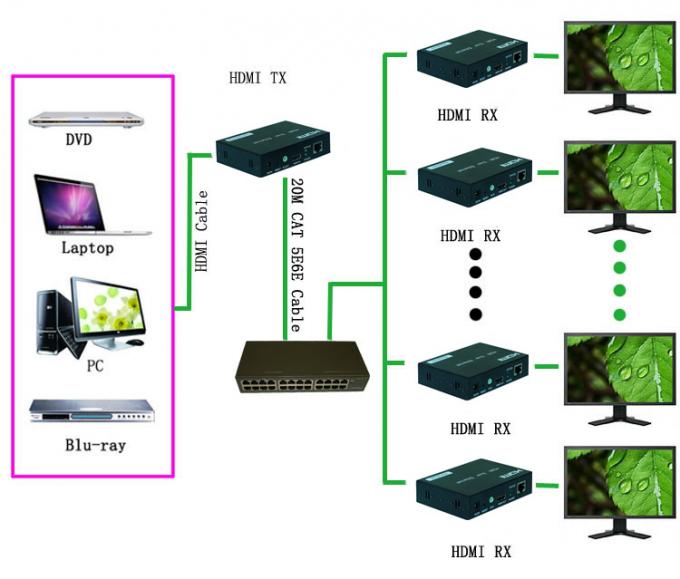

One to many

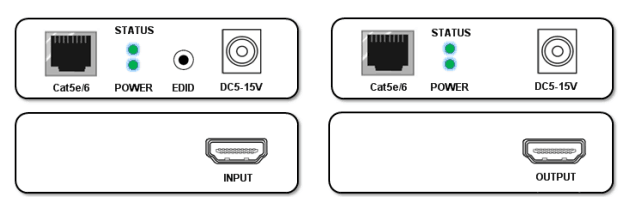

5. Specifications
Length of CAT-6 cable between Rx and TX |
Up to 120 meters |
HDMI Input | 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i |
Support audio format input | DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD |
HDMI Output | 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i |
Support audio format output | DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD |
Max transmission bandwidth | 6.75Gbps |
Input Video signal | 0.5~1.5Volts p-p |
Output DDC signal | 5Volts p-p (TTL) |
Input/Output HDMI1.3 cable distance | .≤15m AWG26 HDMI 1.3 standard cable |
Max working current | 400mA |
Power adapter format | Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1 A |
Operating Temperature range | (-15 to +75℃) |
Operating Humidity range | 5 to 90%RH (No Condensation) |
Dimension (L x W x H) | 81x70x25(mm) |
Weight | 0.37Kg |
Gross weight | 0.64kg |
BoxDimension(LXWXH) | 250x220x60 (mm) |
6. Order Information
Part No | Description of product | Unit |
ND8110HE-120 | HDMI extender,120m,HDMI 1.3; HDCP 1.2,5V1A/DC,up to 1920*1080/60Hz | pc |
