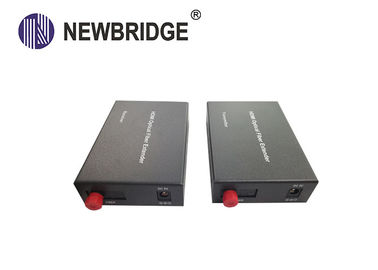

HDMI Fiber Optic Extender up to 20km support IR transmission
1. Overview
Newbridge® The equipment provides extension of HDMI signals long distances over one fiber optic cable, it supports high resolution up to 1080P and IR transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
2.Feature
|
|
Simple to install, plug and play |

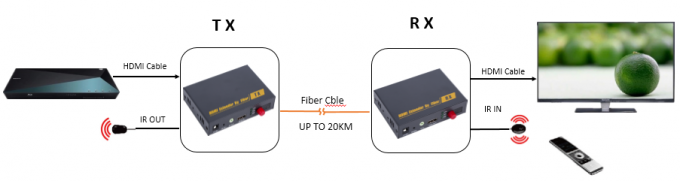

3．Application Diagram
Transmitter:
Receiver:

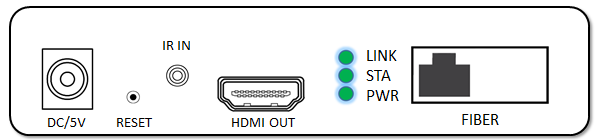

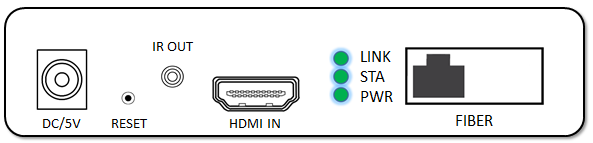

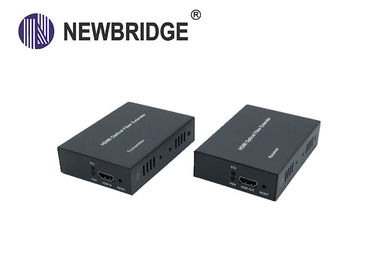

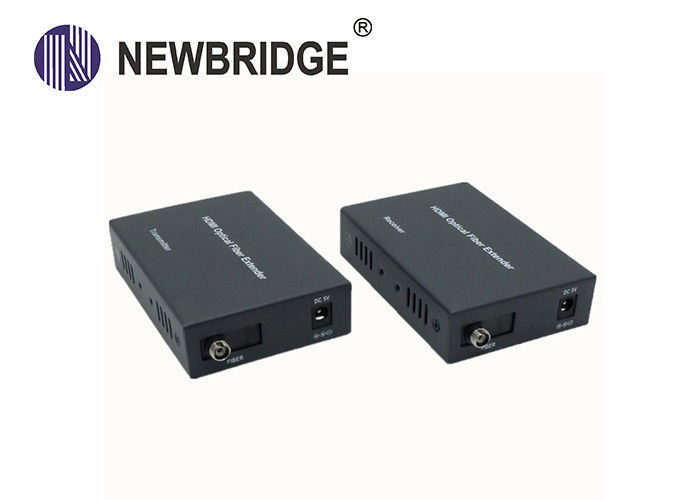

| Port name | Description |
| HDMI IN/OUT | HDMI signal input/output |
| IR IN/OUT | Infrared signal input/output |
| FIBER | Optical fiber interface |
| DC/5V | Power adapter socket |
| RESET | Restore button, press for 5 second to restore system setting to factory default |
| LED indicator | Description |
| LINK | Optical fiber signal connection indicator |
| STA | Video signal connection indicator |
| PWR | System power indicator |
5. Specifications
| Parameter | Description | |
| Video | Standards | HDMI 1.3; HDCP 1.2 |
| Maximum pixel clock | 165MHz | |
| Maximum data rate | 6.75Gbps | |
| Resolution range | Up to 1920X1080P@60Hz | |
| Connector | Female HDMI type A | |
| Impedance | 100Ω | |
| Infrared | Interface | 3.5mm earphone seat |
| Signal type | Digital | |
| Transmission direction | Unidirectional | |
| Carrier frequency | 38kHz | |
| Optical fiber | Interface | SC/FC connector |
| Fiber type | Single Mode | |
| Wavelength | 1310nm, 1510nm | |
| Interface bandwidth | 155Mbps | |
| Transmission distance | Standard: 20km; | |
| Other | Power supply | The power adapter: DC 5V/2A |
| Power dissipation | MAX 5W | |
| Temperature | Operating: -5℃ ~ +70℃ | |
| Humidity | Operating: 5% ~ 90% | |
| Dimension | 113*80*28mm | |
| The warranty | 1 year free warranty | |
6. Order Information
| Part No | Description of product | Unit |
| ND8110HF | HDMI Fiber Optic Extender(packed),1*HDMI+1*100M single Fiber,Video and audio,20km,FC port,up to 1920*1080@60Hz,HDMI1.3,HDCP1.2,DC5V2A | pair |
