High Efficiency 8 Port SFP PoE Ethernet Switch High Efficiency Easy Operating

High Efficiency 8 Port SFP PoE Ethernet Switch High Efficiency Easy Operating

High Efficiency 8 Port SFP PoE Ethernet Switch High Efficiency Easy Operating

Product Details:

Place of Origin: SHENZHEN,CHINA
Brand Name: NEWBRIDGE
Certification: FCC,CE
Model Number: ND-1108F -260

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: packing can be done by customer's requested, usually used in carton
Delivery Time: According to the quantiy and stocking , 3-4 working days after payment
Payment Terms: T/T , Western Union
Supply Ability: According to the different products , the monthly output is different
Contact Now
Detailed Product Description
LCD Display: Support Transfer Mode: Store-and-Forward
Power Input: AC: 100~240V, 50/60Hz Power Output: DC: 55V/ 4.5A, 55V /5.6A (Optional)
PoE Port: Port1~24 PoE Power On RJ45: Mode A 1/2(+),3/6(-)
PoE Power Output: Voltage: 55V DC Power: 32W(Max) PoE Power Budget: 240W/300W (According To The Power)



8-Port 10/100Mbps +2G TP/SFP Combo PoE Switch with LCD Display





Product Overview

PSL1124F is designed by Unipoe com -pany Ethernet switch which has the fun -ction of LCD and PoE . It contains 26 RJ45 ports and 1~24 support PoE functions , The PoE ports can automatically detect and supply power to IEEE802.3af/at compliant Powered Devices (PD). The electrical power and data transmission on the same cable can expand your network to the places where no power lines or outlets, where you can install devices such as APs, IP cameras, or IP phones etc.

The LCD not only can display the PoE work status, accurate judgment port of load, can also help customer and engineer timely discover and solve the network failure, improve work efficiency and quality.







Features

Interface information

  • 8*10/100Mbps RJ45 ports
  • 2*Gigabit TP/SFP Combo ports
  • 24 PSE ports

PoE(Power over Ethernet)

  • Complies with IEEE802.3af/at Power over Ethernet
  • Supports PoE Power up to 32W for each PoE port
  • Auto detect power device
  • Remote power and Data feeding up to 100m

Switch

  • Flow Control for Full Duplex operation and back pressure for Half Duplex Operation
  • 4K MAC address, automatic address learning and address aging
  • Support LCD display
  • Built-in power supply can be chosen by the customer





PoE Features

The PSL1124F can provide up to 32 Watts of power to attached devices, such as VoIP phones, wireless access points; surveillance cameras etc, all over existing cat. 5cables. The switch eliminates the need for individual power sources for devices in the network, saving on costs for power cables and avoiding power outlet availability issues.

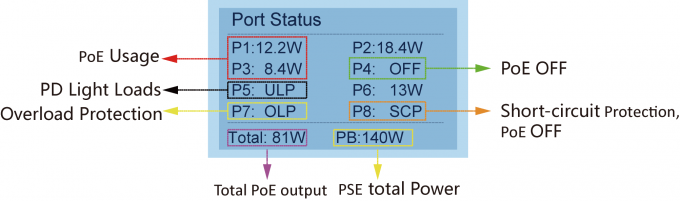

LCD Features

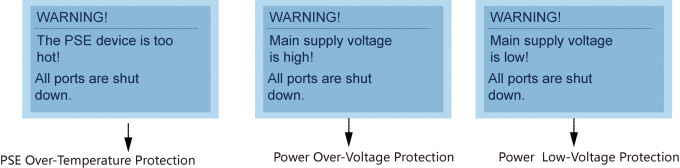

PSL1124F is with the function of the LCD display and PoE Ethernet switch. The LCD can display the working condition of PoE port not only, still can accurately show the state of each port, such as: Output power, Overload, Short circuit, Light load, Low voltage, Over voltage,High temperature, and so on...

High Efficiency 8 Port SFP PoE Ethernet Switch High Efficiency Easy Operating

High Efficiency 8 Port SFP PoE Ethernet Switch High Efficiency Easy Operating

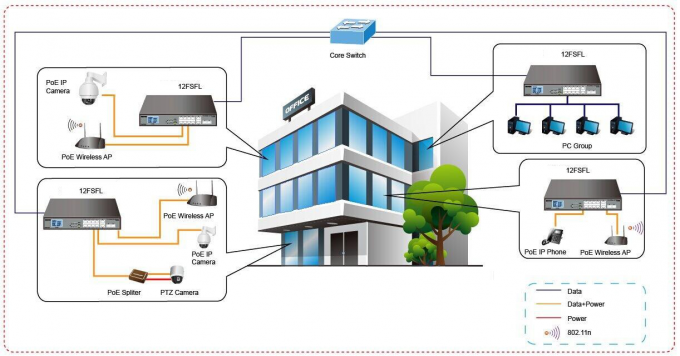

Application

The PSL1124F providing 24 Port PoE in-line power interfaces , and can easily build a power centrally-controlled IP phone system, IP Camera system and Wireless AP group for the enterprise. Cameras can be installed around the corner in the company or campus for surveillance demands. Without the powersocket limitation, It makes the installation of cameras more easily and efficiently.



High Efficiency 8 Port SFP PoE Ethernet Switch High Efficiency Easy Operating





Specification

Hardware information

Standard IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.1q, IEEE802.3af, IEEE802.3at
Network Media(Cable)

10BASE-T: UTP category 3,4,5 cable (≦100m)

100BASE-TX: UTP category 5,5e cable (≦100m)

1000BASE-T: UTP category 5e,6 cable(≦100m)

1000Base-X: MMF or SMF SFP Module (Optional)

LED

Power (Green)

Per port: PoE (Orange) LINK/ACT(Green) Speed(Green)

LCD Display Support
VLAN Function

the toggle switch control VLAN funtion
VLAN is ON: port 1 ~ 8 can communicate with port 9/10 ,

port 1 ~ 8 no direct communication
VLAN is OFF: can direct communication between 1-8 ports

MAC Address Table 4K, Auto-learning, Auto-aging
Transfer mode Store-and-Forward
Maximum packet length 1536 Byte
Switching Capacity 5.6G
Dimensions (L*W*H) 280*179*44.5mm
Fan Fanless
Power Input AC: 100~240V, 50/60Hz
Power Output DC:55V/2.3A, 55V/2.8A, 55V/3.6A(Optional)
PoE(Power Over Ethernet)
PoE port Port1~8
PoE Power on RJ45 Mode A 1/2(+),3/6(-)
PoE Power Output Voltage: 55V DC Power: 32W(Max)
PoE Power Budget 110W/140W/180W(According to the power)
Environmental
Operating Temperature 0°C ~ 40 °C (32 °F ~104°F )
Storage Temperature -40 °C ~ 70 °C (-40 °F ~158°F )
Operating Humidity 10% ~ 90% non-condensing
Storage Humidity 5% ~ 90% non-condensing




Power Supply information

Power Supply PoE Power Budget
55V 100W
55V 130W
55V 180W



Ordering information

Model 10/100Mbps port Gigabit Combo port PSE Port Internal Adapter LCD Display PoE Standard
ND-1108F -120 8 2 8 120W Support

802.3af/

802.3at

ND-1108F -150 8 2 8 150W
ND-1108F -200 8 2 8 200W
