4A B Building Zhuao Industrial Park Gushu Xixiang Baoan District Shenzhen,China,518126 | info@newbridge.com.cn |
Place of Origin: | SHENZHEN,CHINA |
Brand Name: | NEWBRIDGE |
Certification: | FCC,CE |
Model Number: | ND-8012D |
Minimum Order Quantity: | 1PC |
---|---|
Price: | Negotiation |
Packaging Details: | packing can be done by customer's requested, usually used in carton |
Delivery Time: | According to the quantiy and stocking , 3-4 working days after payment |
Payment Terms: | T/T , Western Union |
Supply Ability: | According to the different products , the monthly output is different |
Model: | ND8102D | Signal Type: | SD-SDI(270Mbps)/ HD-SDI(1.485Gbps) |
---|---|---|---|
Operating Temperature: | 0°C ~ 60°C / 32°F ~ 140°F | Power Supply: | 5~24DC |
Storage Temperature: | -30°C ~ 70°C / -22°F ~158°F | Dimension: | 176 X 150 X 30 Mm / 6.97x 6.10 X 1.18 Inches |

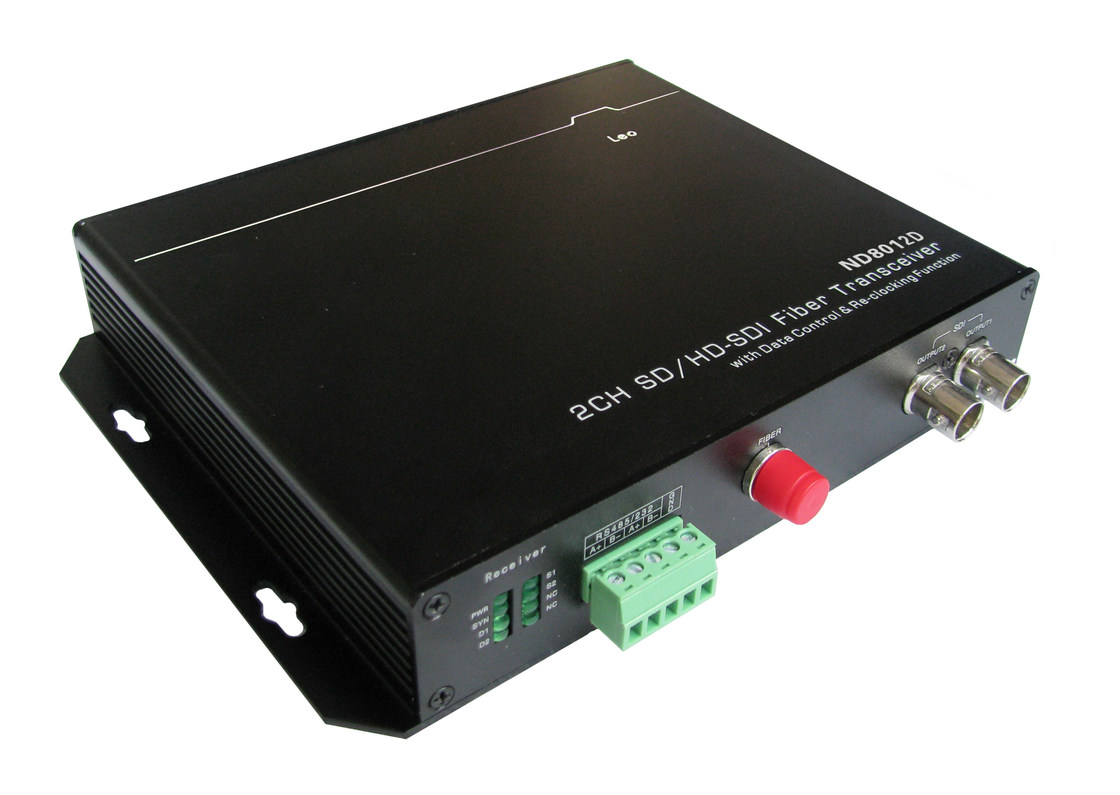

Plug And Play 60km HD SDI Converter , SD Auto Detection Optical Transceiver
1. Overview
Newbridge® ND8012D HD-SDI Optical Transceiver is a perfect and economic transmission device to transmit SD/HD-SDI video to up to 60KM and Plus, embedded audio and RS485 data via fiber-optic.
Transmitter is used as sending and Receiver is used as receiving .System support in accordance with SMPTE292M, SMPTE259M standard, as well as DVB-ASI (EN50083-9) digital TV signal format.
ND8012D |
l Support 2 channel SD/HD video embedded audio signal via fiber l SD,HD auto-detection, supported transmission rate from 270M bit/s to 1.485G bit/s l Transmission distance is from 0km to 40KM via multimode fiber or single mode fiber. l Support SMPTE 259M (1.485Gbps),SMPTE 259M (270Mbps) and DVB-ASI l Support plug and play function l Operation status indication by LED |
3.Application Diagram
4. Dimensions
5. Specifications
Model/Name | ND-8012D |
Quantity/Type | Single Mode, Single Fiber |
Video port | 2CH BNC SD/HD-SDI |
Transmission Distance | 0m-20Km/40km/60KM optional |
Fiber Connector | FC |
Wave Length | 1310nm/1550nm |
Transmitted power | -10dbm~-3dbm |
Maximum Receiving Sensitivity | <-34dbm |
Signal Type | SD-SDI(270Mbps)/HD-SDI(1.485Gbps) |
Support Input Format |
SD: 525i @ 59.94Hz, 625i @ 50Hz HD: 720p @ 25Hz / 29.97Hz / 30Hz 720p @ 50Hz / 59.94Hz / 60Hz 1080i @ 50Hz / 59.94Hz / 60Hz 1080p @23.98Hz/24Hz/25Hz/29Hz/30Hz |
Video Standard | SMPTE 292M , SMPTE 259M |
DATA comm. method | 2CH RS-485/Half duplex/ Industrial terminals |
In-out electrical level | 800mVp-p±10% |
In-0ut Ohm | 75Ohm |
Digital Audio | 48KHz |
AES digital audio channel | 8CH |
Power Supply | 5~24DC |
Power Consumption | 3~5 Watts |
Operating Temperature | 0°C ~ 60°C / 32°F ~ 140°F |
Storage Temperature | -30°C ~ 70°C / -22°F ~158°F |
Relative Humidity | 20~90% RH (Non-condensation) |
Dimension | 176 x 146 x 30 mm / 6.97x 6.75x 1.18 in |
Weight | 900g (Tx and Rx) |
6. Order Information
Part No | Description of product | Unit |
ND-8012D-Tx | SD/HD-SDI Optical-Transmitter | pcs |
ND-8012D-Rx | SD/HD-SDI Optical-Receiver | pcs |
