Maximum Pixel Clock: | 225MHz | Maximum Data Rate: | 6.75Gbps |
---|---|---|---|
Connector: | HDMI-A Interface | Impedance: | 100Ω |
Interface: | SFP Model-LC Connector | Fiber Type: | Single-mode |
Wavelength: | Single-mode 1310nm/1550nm | Interface Bandwidth: | 10Gbps |
Power Supply: | Power Adapter:DC 5V/2A |

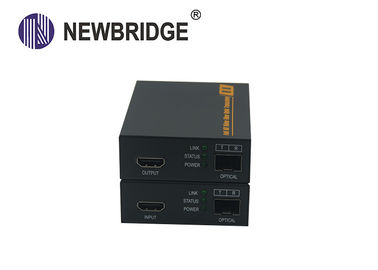

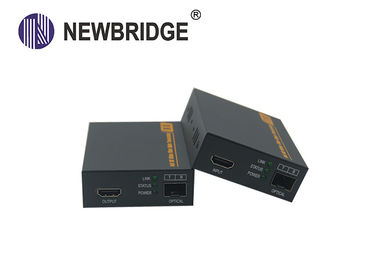

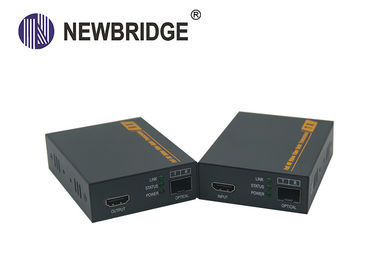

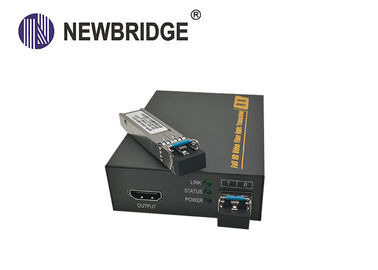

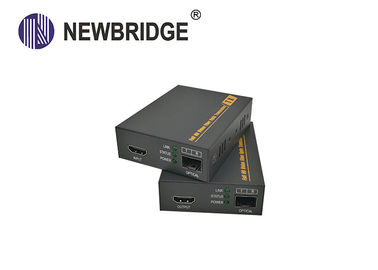

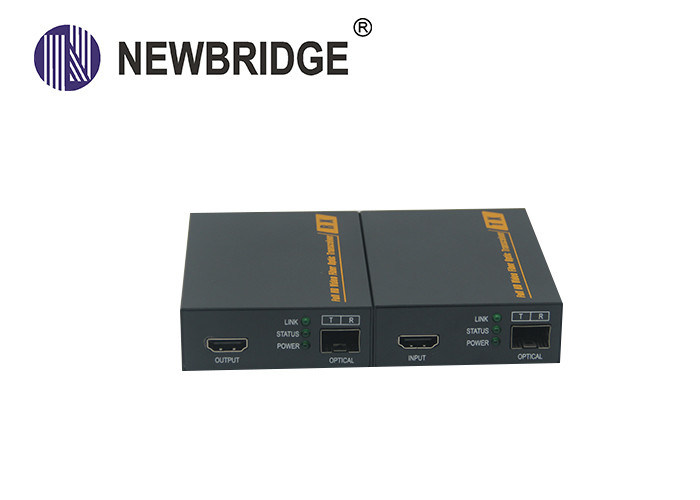

Full HD fiber optic extender with SFP model and data RS232
1.Description
The HDMI Fiber optic extender provides extension of HDMI and 3D signals
long distances over one fiber optic cable, it supports high resolution up to
4k*2k, EDID copy/pass-thru function. The extender can use for a wide range of
applications requiring long distance transmission of high resolution with high
quality by its good stability and powerful security.
2. Features
3. Specification
Parameter | Description | |
Video | Standards | HDMI 1.4 |
Maximum pixel clock | 225MHz | |
Maximum data rate | 6.75Gbps | |
Resolution range | Up to 4K*2K@30Hz 3D, 1920*1200@60Hz | |
Connector | HDMI-A Interface | |
Impedance | 100Ω | |
Optical fiber | Interface | SFP model-LC connector |
Fiber type | Single-mode | |
Wavelength | Single-mode 1310nm/1550nm | |
Interface bandwidth | 10Gbps | |
Transmission distance |
3840X2160@30Hz;Multi-mode fiber OM3 :300m Single-mode fiber:standard 2km(Maximum10-20KM) |
|
Other | Power supply | Power adapter:DC 5V/2A |
Power dissipation | MAX 5W | |
Temperature | Operating:-5℃ ~ +70℃ | |
Humidity | Operating:5% ~ 90% | |
Dimension | 94.5*73*26mm | |
Warranty | 1year free warranty |
4.Panel
Port | Description |
HDMI IN/OUT | HDMI signal input/output |
EDID | EDID Copy button, Press 3 seconds, copy EDID from HDMI IN display device to system . If HDMI IN interface no display connect, restore default EDID. |
DC |
Power adapter socket TX: Transmitter RX: Receiver |
RS232 | Industrial Terminal |
FIBER | SFP model- LC connector |
LED indicator | Description |
L | Optical fiber signal connection indicator |
S | Video signal connection indicator |
P TX/RX L, S, P all bright |
System power indicat Devices is on EDID,HDCP, pass-through process |
