4A B Building Zhuao Industrial Park Gushu Xixiang Baoan District Shenzhen,China,518126 | info@newbridge.com.cn |
Place of Origin: | SHENZHEN,CHINA |
Brand Name: | NEWBRIDGE |
Certification: | CE,FCC |
Model Number: | ND8110VFM |
Minimum Order Quantity: | 1pair |
---|---|
Price: | Negotiation |
Packaging Details: | packing can be done by customer's requested, usually used in carton |
Delivery Time: | According to the quantiy and stocking , 3-4 working days after payment |
Payment Terms: | T/T , Western Union |
Supply Ability: | According to the different products , the monthly output is different |
Power: | Adapter:DC 5V/2A | Power Dissipation: | MAX 4W |
---|---|---|---|
IR Frequency: | 20-60kHz | Temperature: | Operating:-5℃ ~ +70℃ |
Size: | 102*96*25mm | Audio Port: | 3.5mm Stereo Audio Socket |

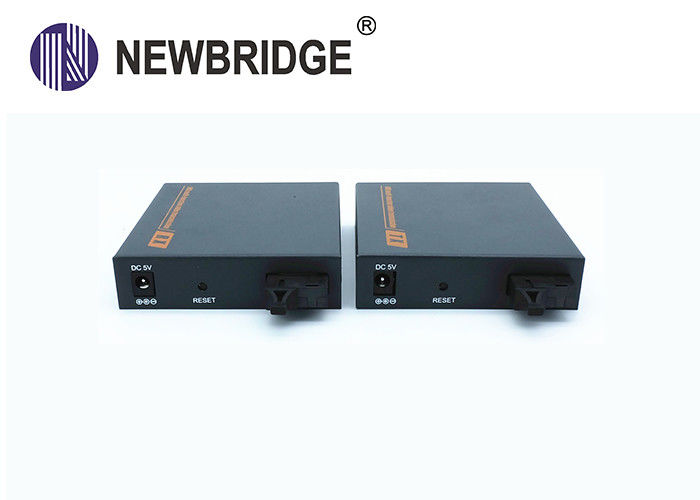

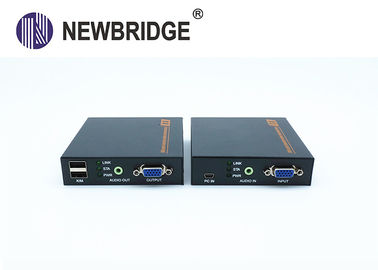

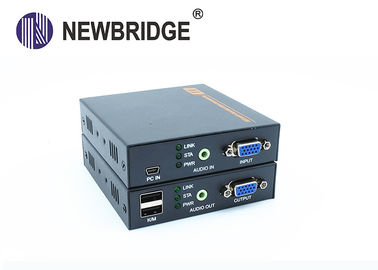

KVM USB extender ESD protection high resolution over 20KM singnal up 1920 x1080 @60Hz VGA HDMI extender
1. Overview
Newbridge® The Extender could transmission high-definition video long distance through a single cable , while support for USB keyboard and mouse transmission, external independent audio and other functions, can adapt to a variety of complex applications. The device has a superior image processing and transmission capacity, so that the signal transmission more smooth and stable, it is a good solution with a reliable, high-performance, efficient VGA, keyboard and mouse signals to extend the way.
2. Features
|
l Transmit VGA video and audio over long distances through the cable, up to 20KM;
l The highest resolution HD video signals up to 1080P @ 60Hz; l Compliance with VGA standard protocol; l Support for external one-way analog stereo audio signal transmission; l Support USB keyboard and mouse transmission; l It can automatically identify and configure a variety of display modes; l Built-in automatic equalization system, the picture is smooth, clear and stable; l Built-in ESD Protection Circuit, comprehensive protection system security; l Easy to install, plug and play, no need to set; |
3. Application Diagram
4.Specification
Parameter | Description | |
Video | Signal Type | VGA |
BW | 380MHz | |
Resolution |
1024X768 @ 60fps 1280X720@ 60fps 1280X800@ 60fps 1280X1024@ 60fps 1440x900 @ 60fps 1660x1200 @ 60fps 1680x1050 @ 60fps 1920x1080 @ 60fps |
|
Audio | Port | 3.5mm Stereo audio socket |
Type | Stereo | |
K/M | PIN | USB |
Ethernet port | Cable Type | Signals Fiber |
Max transmission distance | SC/FC 20KM | |
Other | Power | Adapter:DC 5V/2A |
Power dissipation | MAX 4W | |
Temperature | Operating:-5℃ ~ +70℃ | |
Humidity | Operating:5% ~ 90% | |
Size | 102*96*25mm | |
Warranty | 1 year |
5.Ordering information
Part No | Description of product | Unit |
ND8110VFM |
Packed VGA + KVM Fiber Extender,Transmit VGA video and audio over long distances through the cable, Single fiber single mode,up to 20KM,FC port;The highest resolution HD video signals up to 1080P @ 60Hz;
|
pair |
