4A B Building Zhuao Industrial Park Gushu Xixiang Baoan District Shenzhen,China,518126 | info@newbridge.com.cn |
Place of Origin: | SHENZHEN,CHINA |
Brand Name: | NEWBRIDGE |
Certification: | CE,FCC |
Model Number: | ND1104-EX07 |
Minimum Order Quantity: | 1PC |
---|---|
Price: | Negotiation |
Packaging Details: | packing can be done by customer's requested, usually used in carton |
Delivery Time: | According to the quantiy and stocking , 3-4 working days after payment |
Payment Terms: | T/T , Western Union |
Supply Ability: | According to the different products , the monthly output is different |
Weight: | 240g X 2 | Szie: | 92x79x20 Mm |
---|---|---|---|
Power Input: | AC 100-240V | Power Output: | DC 5V 1A |
Operating Temperature/Humidity: | 0℃~70℃ | Storage Temperature/Humidity: | -10℃~80℃ |

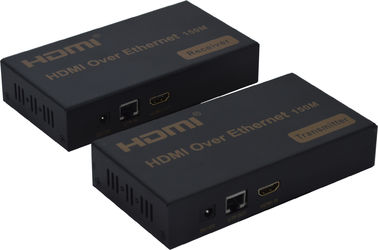

1080P HDMI KVM USB Extender 120M over IP/RJ45 Ethernet with IR Control,Fiber Optic Extender
IntroductionHDMI Over Ethernet is based on TCP/IP standard. It transmits your HD display with the high resolutions up to 150 meters away from your HDMI or DVI-D source by using one CAT5e/6 cable.At the same time, it's also convenient to transmit HDMI audio and video source bypoint-to-point mode, one point-to-many mode and cascade connection mode.
Specification
★ Support HDMI 1.3/HDCP1.1&1.2
★ Support point-to-point mode, one point-to-many mode and cascade connection mode.
★ 802.3 Ethernet standard.
★ Support IR remote control, you can control STB or Blue-Ray DVD at receiving site by remote control.
★ The design of pure hardware, plug and play, no need for additional software.
★ Support IR remote control 38KHz,NEC.
★ Support remote monitoring by mouse and keyboard.
HDTV Resolutions | 480p, 720p,1080p |
Audio | Sample rate:32kHz,44.1kHz,48kHz |
IR remote control | 38kHz;NEC |
HDMI | HDMI 1.3 |
HDCP | HDCP 1.2 |
Power adapter | DC:5V/2A |
Power consumption | HDMI Sender:3W HDMI receiver:3W |
Size(L-W-H) | 150*79*30mm |
Weight | 340g x 2 |
Operating Temperature/Humidity | 0℃-70℃/10%-80%RH(no condensation) |
Storage Temperature/Humidity | -10℃-80℃/5%-90%RH(no condensation) |
Package contents
Before attempting to use this unit, please check the packaging and make sure the
following items are contained in the shipping carton:
1) Main unit No. 1 Sender , Main unit No. 2 Receiver
2) Two pieces of 5V DC Power Supply.
3) one piece of IR transmitter and one piece of IR receiver
4) User’s Manual

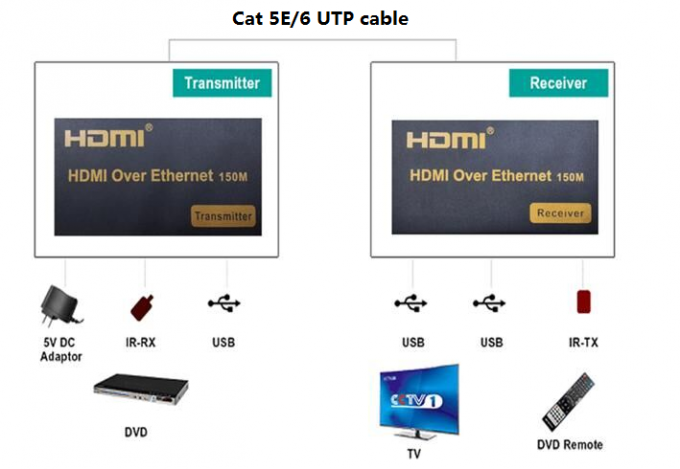

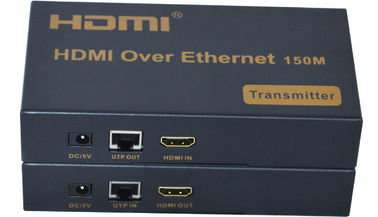

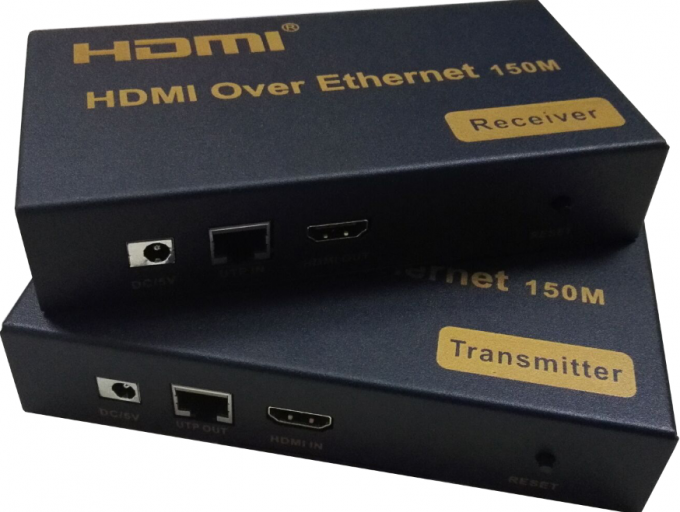

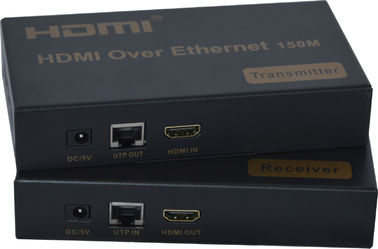

Physical interface diagram

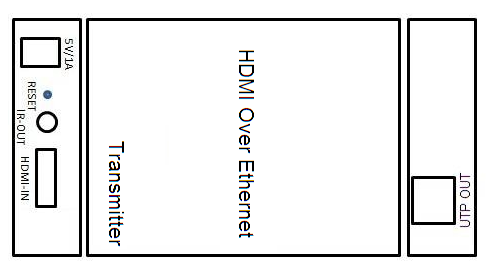

Transmitter
1. DC/5V Power input
2. UTP Output port
3. HDMI Input port
4. IR TX
5. USB Port
6. Power indicator
7. Signal indicator
Receiver
DC/5V Power input
1. UTP Input port
2. HDMI output port
3. IR RX
4. USB for KVM ( keyboard and mouse)
5. USB for KVM ( keyboard and mouse)
6. Power indicator
7. Signal indicator
PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and make sure the
following items are contained in the shipping carton:
1) One piece of Transmitter ;
2) One piece of Receiver
2) Two pieces of 5V/2A Power Supply.
3) One piece of IR transmitter and one piece of IR receiver
4) User’s Manual
Application diagrams

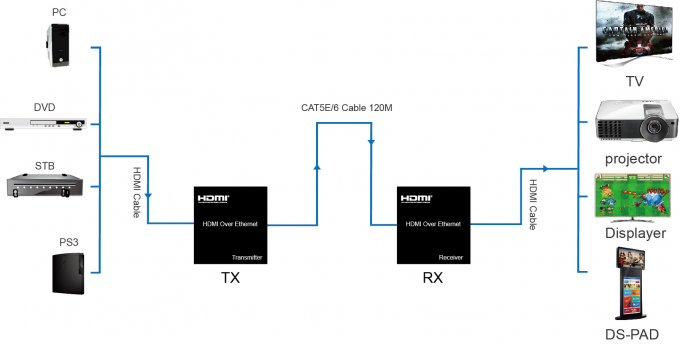

One to one application :

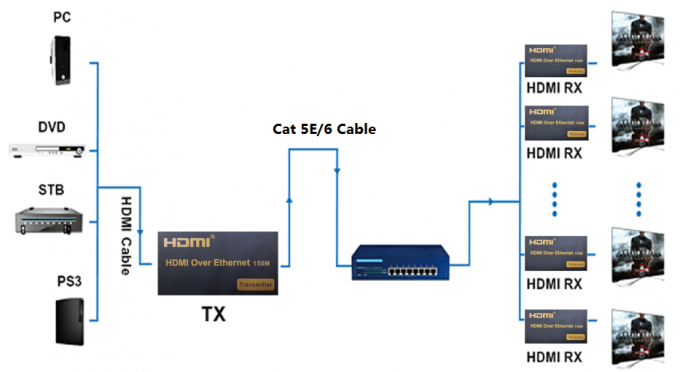

one to manny application:
Application diagrams
