| Place of Origin: | SHENZHEN,CHINA |
| Brand Name: | NEWBRIDGE |
| Certification: | CE,FCC |
| Model Number: | ND5105-RX |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | packing can be done by customer's requested, usually used in carton |
| Delivery Time: | According to the quantiy and stocking , 3-4 working days after payment |
| Payment Terms: | T/T , Western Union |
| Supply Ability: | According to the different products , the monthly output is different |
| Power Supply: | DC 5V 1A | Work Temperature: | - 40 ℃ ~ + 85 ℃ |
|---|---|---|---|
| Support HD Resolution: | 720p,960p,1080p | Operating Humidity: | 10 To 90% RH |
| Input: | BNC , 75ohm | Output: | RJ-45 |

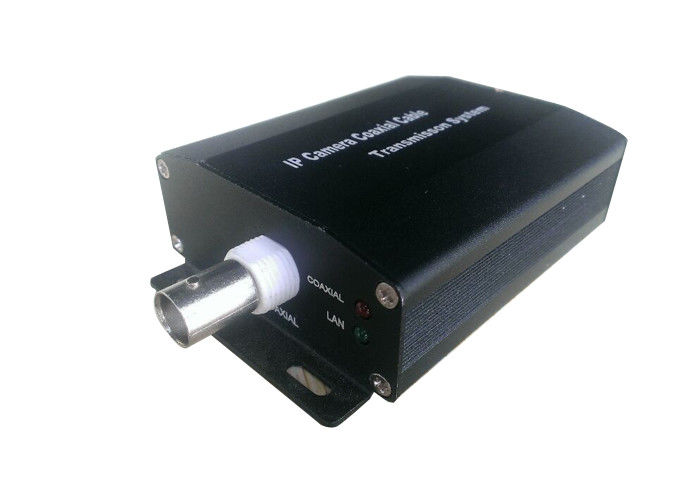

Smart 2km HDMI KVM Over IP Extender With IR 1080P Full HD Receiver Fiber Optic Extender
HD IP Extender over Coax cable Extend HP IP signal over coax cable, twisted pair,telephone line,power cable (two wire)
Feature
◆ Convert network signal to analog video signal to extend transmission distance up to 2000m
◆ Support HD IP resolution :720P,960P,1080P HD IP and SD IP resolution .
◆ Max Data bandwidth:100Mbps
◆ Distance:400M——92Mbps；1000M——74Mbps； 50Mbps (twisted pair) , 40Mbps (Telephone line)2000M——30Mbps
◆ Support Auto-networking over series or shunt connection up to 60 piece
◆ Support plug and play function
◆ Apply to three class lightning-proof configuration
Specification
| Type | ND5105-TX transmitter | ND5105-RX Receiver |
| Input | RJ-45 | BNC , 75ohm |
| Output | BNC, 75 ohm | RJ-45 |
| Ethernet port | RJ-45 | |
| Max data | 100M | |
| Standard | IEEE 802.3 10BaseT, 802.3u 100BaseTX,802.3u 100BaseFX | |
| Compliance | TCP/IP , Auto-learning MDI/MDIX, Auto-sense Half or full duplex | |
| Output--CVBS | BNC , 75ohm | |
| Max distance (Coax cable ) | 400M——92Mbps； 1000M——74Mbps； 50Mbps (twisted pair) , 40Mbps (Telephone line) 2000M——30Mbps |
|
| Work temperature | -40 ℃～+85 ℃ | |
| Relative humidity | 0～95% (no cond) | |
| Storage temperature | -60℃～+100℃ | |
| Power consumption | 5W(Input:DC12V 400mA) | |
| Size | 98x 65x28 mm | |
| Power supply | AC85-260V/50Hz/60Hz. DC12V,2.1A | |

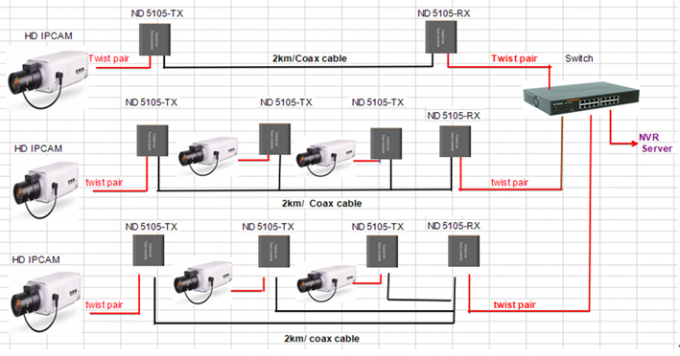

Connection diagram
Order information
| Part No | Description of product | Unit |
| ND5105-RX | Receiver | 1pcs |
