4A B Building Zhuao Industrial Park Gushu Xixiang Baoan District Shenzhen,China,518126 | info@newbridge.com.cn |
Place of Origin: | SHENZHEN,CHINA |
Brand Name: | NEWBRIDGE |
Certification: | FCC,CE |
Model Number: | ND-H8110FD |
Minimum Order Quantity: | 1PC |
---|---|
Price: | Negotiation |
Packaging Details: | packing can be done by customer's requested, usually used in carton |
Delivery Time: | According to the quantiy and stocking , 3-4 working days after payment |
Payment Terms: | T/T , Western Union |
Supply Ability: | According to the different products , the monthly output is different |
Fiber: | SFP Module-LC Connector | DC/5V: | Power Adapter Socket |
---|---|---|---|
RS232: | DB9 Socket | Audio IN/OUT: | Stereo Audio Signal Input/output |
DVI IN/OUT: | VGA Input/output | Temperature: | Operating: -5℃ ~ +70℃ |
Humidity: | Operating: 5% ~ 90% | Dimension: | 165*80*30mm |

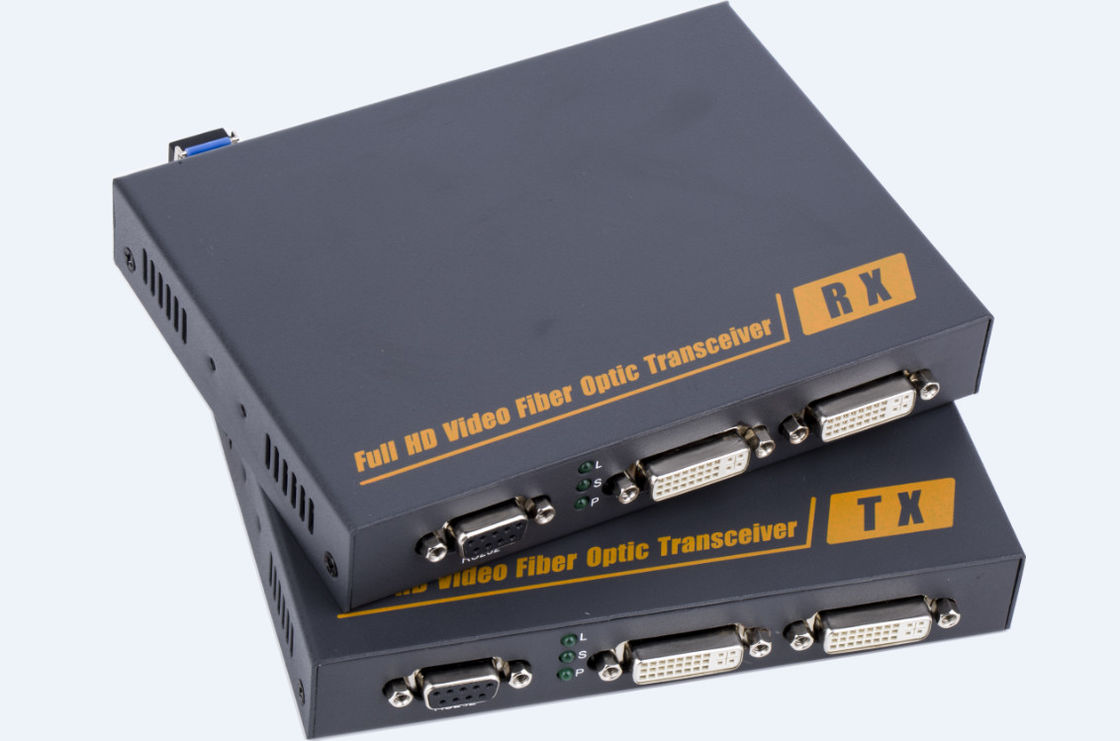

DVI Fiber Optic Extender with SFP model
1. Description
The DVI-D Fiber optic extender provides extension of DVI signals long distances over one fiber optic cable, it supports high resolution up to 1080P, EDID copy, RS232 signal transmission and transmitter local output function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
2. Features
l Transmits DVI video signals up to 2km-10km over one fiber optic cable;
l Support video resolution up to 1920*1080P@60Hz;
l Support RS232 signal unidirectional transmission, baud rate self-adaptive;
l Support copy EDID, can match many kind display device;
l Transmitter support one channel DVI local output;
l Receiver support two channel DVI output;
l Compliance with DVI 1.0 and HDCP 1.2 standard;
l High compatibility, can auto-match source and display device;
l Built-in automatic adjustment system, make the image smooth, clear and stable;
l Built-in ESD protection system;
l Simple to install, plug and play;
3.Specifications
Parameter | Description | |
Video | Standards | DVI 1.0; HDCP 1.2 |
Maximum pixel clock | 165MHz | |
Maximum data rate | 6.75Gbps | |
Resolution range | Up to 1920X1200@60Hz | |
Connector | DVI-D | |
Impedance | 100Ω | |
RS232 | Interface | DB9 socket |
Signal direction | Unidirectional | |
Baud rate | Self-adaptive, Max:115200bps | |
Data bits | 8 | |
Optical fiber | Interface | SFP model – LC connector |
Fiber type | single-mode | |
Wavelength | Single-mode 1310nm | |
Interface bandwidth | 10Gbps | |
Transmission distance | Single-mode fiber: standard 2km;maximum 10km | |
Other | Power supply | The power adapter: DC 5V/2A |
Power dissipation | MAX 5W | |
Temperature | Operating: -5℃ ~ +70℃ | |
Humidity | Operating: 5% ~ 90% | |
Dimension | 165*80*30mm | |
The warranty | 1 year free warranty |
4.Panel

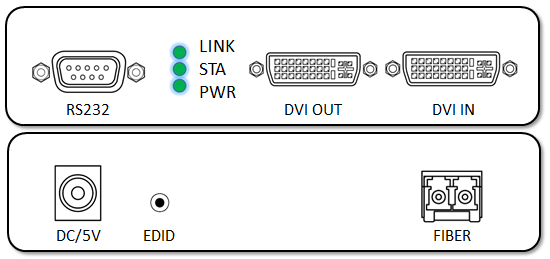

Transmitter:

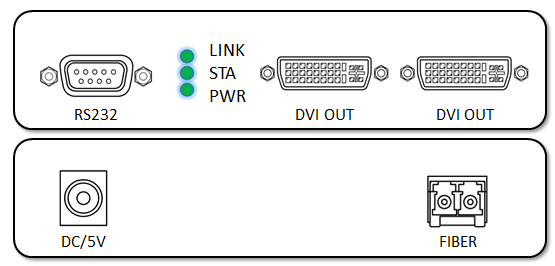

Receiver:
Port name | Description |
DVI IN/OUT | DVI signal input/output |
EDID | EDID button, press 3 second to copy EDID of display device |
RS232 | DB9 socket |
DC/5V | Power adapter socket |
Fiber | SFP model --- LC connector |
LED indicator | Description |
LINK | Optical fiber signal connection indicator |
STA | Video signal connection indicator |
PWR | System power indicator |
5. Package list
l DVI optical fiber transmitter ………. 1 pc
l DVI optical fiber receiver ……………. 1 pc
l Fiber optic module TX/RX ……………1 set
l Power adapter …………………………….2 pcs
l User manual ………………………………. 1 pc
6. Installation
1) Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver,
2) Connect an DVI cable between the DVI input port of transmitter and the DVI output port of the video source,
3) Connect the DVI output port of receiver to the display device with DVI cable,
4) Connect the transmitter optical port to the receiver optical port using one fiber optic cable.

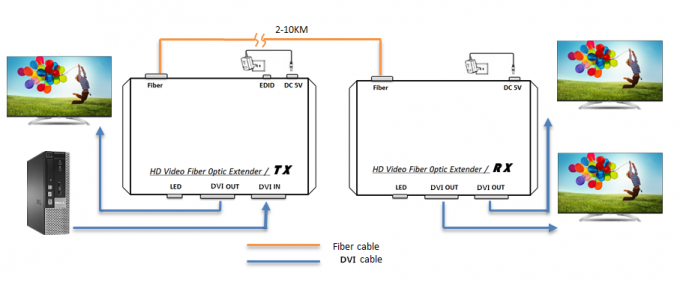

7. Diagram
