HD-SDI Distribution Amplifier 1x2 port 3G/HD-SDI Distribution Amplifier Splitter

HD-SDI Distribution Amplifier 1x2 port 3G/HD-SDI Distribution Amplifier Splitter

    • HD-SDI Distribution Amplifier 1x2 port 3G/HD-SDI Distribution Amplifier Splitter
    • HD-SDI Distribution Amplifier 1x2 port 3G/HD-SDI Distribution Amplifier Splitter
    • HD-SDI Distribution Amplifier 1x2 port 3G/HD-SDI Distribution Amplifier Splitter
    • HD-SDI Distribution Amplifier 1x2 port 3G/HD-SDI Distribution Amplifier Splitter
    • HD-SDI Distribution Amplifier 1x2 port 3G/HD-SDI Distribution Amplifier Splitter
    • HD-SDI Distribution Amplifier 1x2 port 3G/HD-SDI Distribution Amplifier Splitter
  • HD-SDI Distribution Amplifier 1x2 port 3G/HD-SDI Distribution Amplifier Splitter

    Product Details:

    Place of Origin: SHENZHEN,CHINA
    Brand Name: NEWBRIDGE
    Certification: FCC,CE
    Model Number: ND1202G

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Price: Negotiation
    Packaging Details: packing can be done by customer's requested, usually used in carton
    Delivery Time: According to the quantiy and stocking , 3-4 working days after payment
    Payment Terms: T/T , Western Union
    Supply Ability: According to the different products , the monthly output is different
    Contact Now
    Detailed Product Description
    SDI Standard: HD-SDI, SD-SDI Data Rates: 270Mbps/1.485 Gbps/2.97Gbps
    Signal Type: SMPTE 292M, SMPTE 259M,SMPTE424M Voltage: DC 5-24V
    Size: 92*120*36mm SDI Standards: 3G-SDI, SD-SDI, HD-SDI

    HD-SDI Distribution Amplifier 1x2 port 3G/HD-SDI Distribution Amplifier Splitter



    Newbridge® ND1202G SD HD-SDI 1:2 Repeater& Distribution Amplifier is a 1 to 2 repeater and distribution amplifier with Re-clocking function It receive one SDI input and perfectly duplicates it Then it re-transmits two SDI outputs for real time multi-viewing It is a reliable video device splitting a SDI or HD-SDI video source to two 3G-SDI or HD-SDI or SD-SDI display at the same time and takes one input then re-clocks and equalizes the signal and distributes it to two identical outputs

    Feature

    ◆SDI Standard: HD-SDI, SD-SDI
    ◆ Data Rates: 270Mbps/1.485 Gbps/2.97Gbps
    ◆ Signal Type: SMPTE 292M, SMPTE 259M,SMPTE424M
    ◆ Two separately buffered outputs
    ◆ Cable equalization (Beldon 1694A) retiming and signal
    ◆ Re-clocking function capability – unlimited repeater connection
    ◆ Dual color LED indication of nput locik and rate
    ◆ Pass all ancillary data
    ◆5V~24V DC





    Specification

    Model ND1202G
    Re-clocking Function Yes
    SDI Standards 3G-SDI, SD-SDI, HD-SDI
    HD/SD-SDI Detection Auto
    Data Rates 270 / 1483 / 1485 /2970Mbps
    V ideo Support SD: 525i @ 59.94Hz, 625i @ 50Hz
    HD: 720p @ 23.98/24Hz/25Hz/29.97Hz/30Hz/50Hz / 59.94Hz / 60Hz
    1080i @ 50Hz / 59.94Hz / 60Hz
    1080p @23.98Hz/24Hz/25Hz/29.97Hz/30Hz
    3G:1080p @ 50Hz / 59.94Hz / 60Hz
    SDI Signal Type SMPTE-292M, SMPTE-259M, SMPTE-424M
    Output Impedance 75 ohms

    Max. Distance
    Belden 1694A
    SD-SDI 400m / 1300ft ; HD-SDI 200m / 600ft ;3G-SDI 140m / 450ft
    Audio Support Yes
    Input 1x BNC [SDI]
    Output 2x BNC [SDI]
    BNC Connector 75 ohms inter-locked socket
    Power Consumption 2~4 Watts
    Relative Humidity 20~90% RH (no condensation)
    Dimension 92*120*36
    Weight 160g

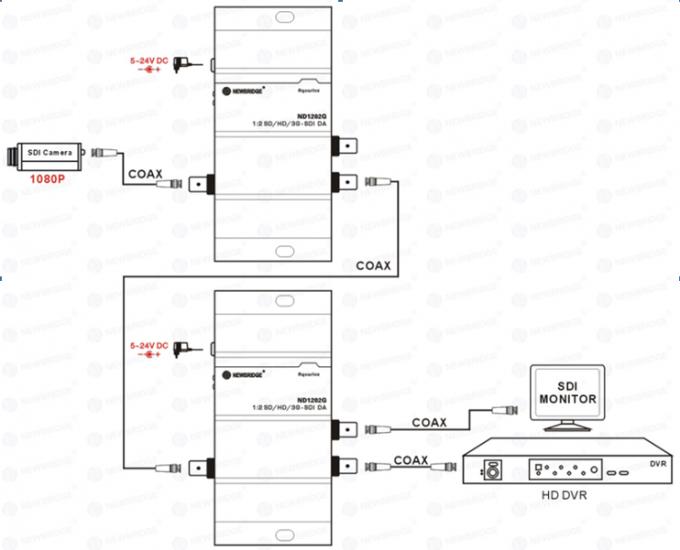

    Connection diagram
    HD-SDI Distribution Amplifier 1x2 port 3G/HD-SDI Distribution Amplifier Splitter


    Order information
    Part No Description of product Unit
    ND1202G

    1x2 port 3G/HD-SDI Distribution Amplifier Splitter

    pcs
