| Place of Origin: | SHENZHEN,CHINA |
| Brand Name: | NEWBRIDGE |
| Certification: | CE,FCC |
| Model Number: | ND1103CATX-Tx |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | packing can be done by customer's requested, usually used in carton |
| Delivery Time: | According to the quantiy and stocking , 3-4 working days after payment |
| Payment Terms: | T/T , Western Union |
| Supply Ability: | According to the different products , the monthly output is different |
| Standard: | SMPTE 259M, SMPTE 292M | SMPTE 259M (270Mb/s), SMPTE 292M: | 270Mb/s, 1.485Gb/s |
|---|---|---|---|
| Power Supply: | DC12V 1A | Operating Temperature: | -10°C ~ 60°C / 14°F ~ 140°F |
| Weight: | 240g | Size: | 98 X 65 X 28mm |

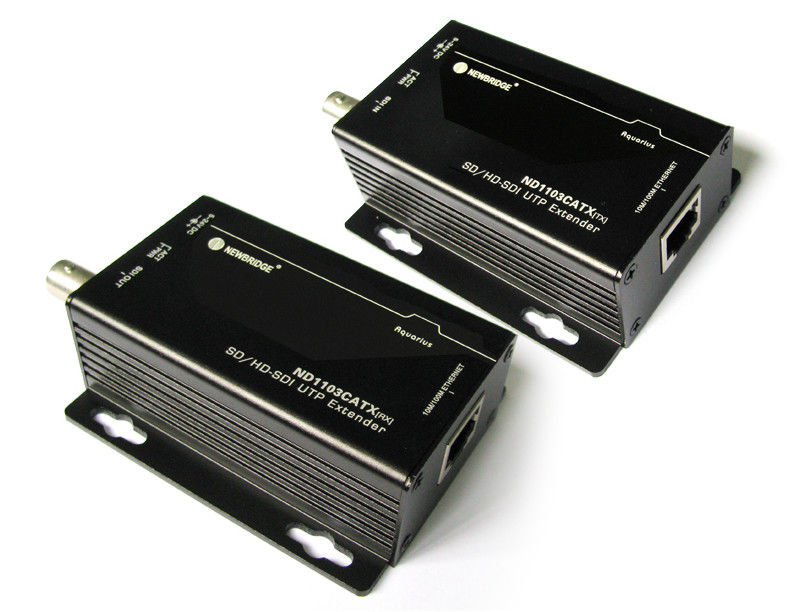

SD/HD-SDI Video Extender over CAT5/ 6 Kit Transmitter and Receiver
Overview
Newbridge® ND1103CATX allows HD-SDI signal to be transmitted up to 60m / 200ft via CAT5/CAT6 cable in a point-to-point configuration. The SDI-UTP Extender supports video bandwidth up to 1.485 Gbps uncompressed, un-encrypted digital video (optionally including embedded Audio and/or Time Code) , widely applied to television facilities and professional video equipment.
Features
★ lSDI Standard: HD-SDI, SD-SDI
★ lUp to 50m / 160ft via CAT5e cable
★ lUp to 60m / 200ft via CAT6 cable
★ lSupports SDI-SMPTE 259M-C (270Mbps);
★ lHD-SDI-SMPTE 292M (1.485, 1.485 / 1.001 Gbps)
★ lLED diagnostics: sync, SDI auto-detection
★ 5V~24V DC
Connection diagram
Specifications
| Model | ND1103CTAX | |
| Type | Transmitter | Receiver |
| Standard Supported | SMPTE 259M (270Mb/s), SMPTE 292M | |
| Speed | 270Mb/s, 1.485Gb/s (automatic selection) | |
| Support Input Format | SD: 525i @ 59.94Hz, 625i @ 50Hz HD: 720p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz 720p @ 50Hz / 59.94Hz / 60Hz 1080i @ 50Hz / 59.94Hz / 60Hz 1080p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz @24 Hz, 1080p @25 Hz, 1080p @29.97 Hz, 1080p @30Hz | |
| Indicators | Power on (on both end) Sync detection (on both end) Link between the two units working (on both end) | |
| Connectors | 1x BNC 75 ohm female 1x RJ45 of CAT5e/6 unshielded or shielded twisted pair 1x power plug, 2.1mm | |
| Maximum Distance | All resolutions CAT5 UTP/STP: 50m / 160ft CAT6 UTP/STP: 60m / 200ft | |
| Power Supply | DC12V/1A | |
| Power Consumption | 2.5W (Tx and Rx) | |
| Operating Temperature | -10°C ~ 60°C / 14°F ~ 140°F | |
| Storage Temperature | -30°C ~ 70°C / -22°F ~158°F | |
| Dimensions | 98 x 65 x 28mm / 3.85x 2.55 x 1.1 inches | |
| Weight | 240 g(Tx and Rx) | |
Order Information
| Part No | Description of product | Unit |
| ND1103CTAX-Tx | SD/HD-SDI Video Extender over CAT5/ 6 Kit Transmitter; | pcs |
| ND1103CTAX-Rx | SD/HD-SDI Video Extender over CAT5/ 6 Kit Receiver | pcs |
