HD SDI Distribution Amplifier SD SDI 1 To 4 Distribution Amplifier

Home Products HD SDI Distribution Amplifier

HD SDI Distribution Amplifier SD SDI 1 To 4 Distribution Amplifier

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	NEWBRIDGE
Certification:	FCC,CE
Model Number:	ND3104D,ND3104G

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiation
Packaging Details:	packing can be done by customer's requested, usually used in carton
Delivery Time:	According to the quantiy and stocking , 3-4 working days after payment
Payment Terms:	T/T , Western Union
Supply Ability:	According to the different products , the monthly output is different

Contact Now

Detailed Product Description

SDI Standard:	HD-SDI, SD-SDI,3G-SDI	Data Rates:	270Mbps/1.485 Gbps/2.97Gbps
Signal Type:	SMPTE 292M, SMPTE 259M,SMPTE424M	Voltage:	DC 5-24V
Size:	93×120×36mm	Certification:	CE,FCC

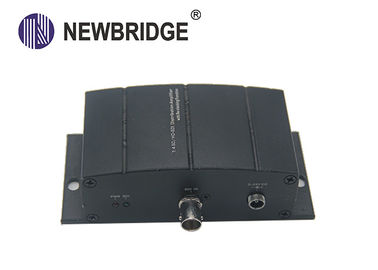

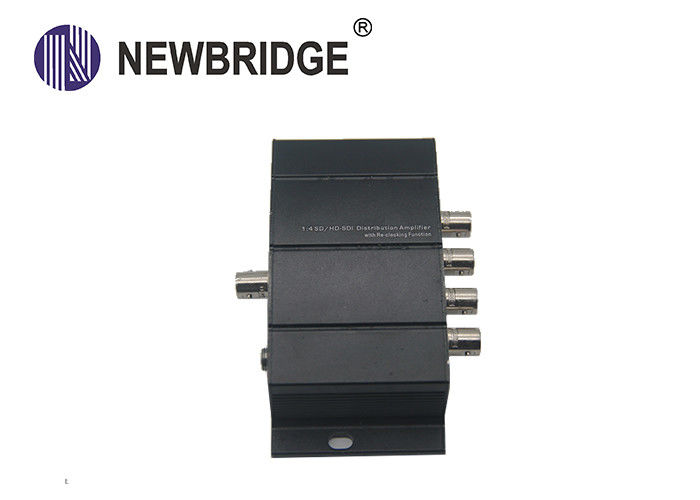

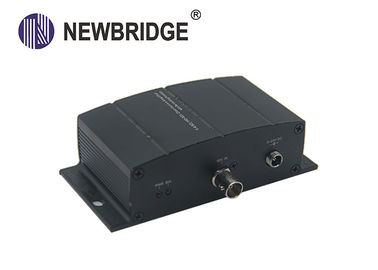

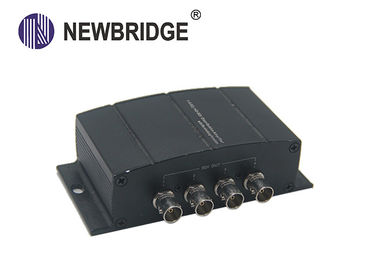

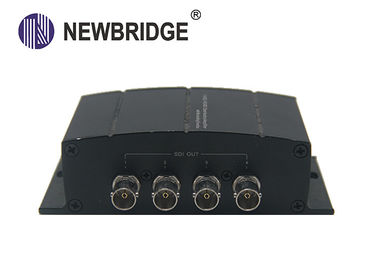

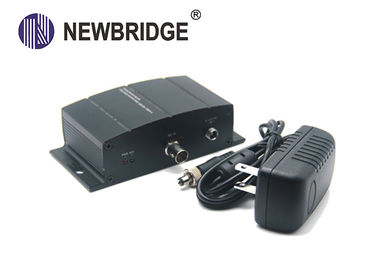

HD SDI Distribution Amplifier SD SDI 1 To 4 Distribution Amplifier

Newbridge® ND1202G SD HD-SDI 1:2 Repeater& Distribution Amplifier is a 1 to 2 repeater and distribution amplifier with Re-clocking function It receive one SDI input and perfectly duplicates it Then it re-transmits two SDI outputs for real time multi-viewing It is a reliable video device splitting a SDI or HD-SDI video source to two 3G-SDI or HD-SDI or SD-SDI display at the same time and takes one input then re-clocks and equalizes the signal and distributes it to two identical outputs

Feature

◆Support SD-SDI (270Mbps), HD-SDI (1.485Gbps) , 3G-SDI (2.97Gbps)

◆Full HD video format

◆Built-in Cable Equalizer, Re-clocker & Cable Driver

◆Max. cable length (Belden 1694A): SD-SDI 400m/1300ft, HD-SDI 200m/600ft, 3G-SDI 140m/450ft

◆Excellent SDI signal jitter suppression function

◆Power supply and SDI signal format indicator

◆Embedded ESD to protect the circuit

◆5V~24V DC

Specification

Model	ND3104D		ND3104G
Inputsignal	1xBNCSDI,HD-SDI		1xBNCSDI,HD-SDI,3G-SDI
InputSignalType	SD-SDI(270Mbps) HD-SDI(1.485Gbps),		SD-SDI(270Mbps) HD-SDI(1.485Gbps), 3G-SDI(2.95Gbps)
SupportInputFormat	SD-SDI:525i@59.94Hz,625i@50Hz HD SDI:720p@23.98Hz/24Hz/25Hz/29.97Hz /30Hz@50Hz/59.94Hz/60Hz 1080i50Hz/59.94Hz/60Hz 1080p@23.98Hz/24Hz/25Hz/29.97H/30Hz		SD-SDI:525i@59.94Hz,625i@50Hz HDSDI:720p@23.98Hz/24Hz/25Hz/29.97Hz/ 30Hz@50Hz/59.94Hz/60Hz 1080i50Hz/59.94Hz/60Hz 1080p@23.98Hz/24Hz/25Hz/29.97H/ 30Hz 3G-SDI:1080p@50Hz/59.94Hz/60Hz
VideoStandard	SMPTE424M,SMPTE292MandSMPTE259M ITU-RBT.601,ITU-RBT.1120
SDI SignalRange	0.8Vp-p
SDI Impedance	75ohms
SDI CouplingType	ACCoupling
Max.InputCoaxLength	Belden1694A SD-SDI 400m/ 1300ft;HD-SDI 200m/ 600ft ;3G-SDI140m/ 450ft
Outputsignal	4x BNC SD-SDI, HD-SDI,3G-SDI
Re-clocking	Auto Support 270Mbps/1.485Gbps/2.97Gbps
PowerSupply	5V~24V DC /LockingPower Connector
PowerConsumption	10Watts(max)
OperatingTemperature	-10°C~60°C/14°F~140°F
StorageTemperature	-30°C~70°C/-22°F~158°F
RelativeHumidity	20~90%RH(Non-condensation)
Dimension	83x 120x 36mm/3.27 x 4.72x1.42in	93x 120x 36mm /3.66 x 4.72 x 1.42 in
Weight	170g	180g
