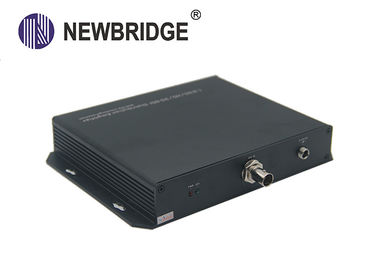

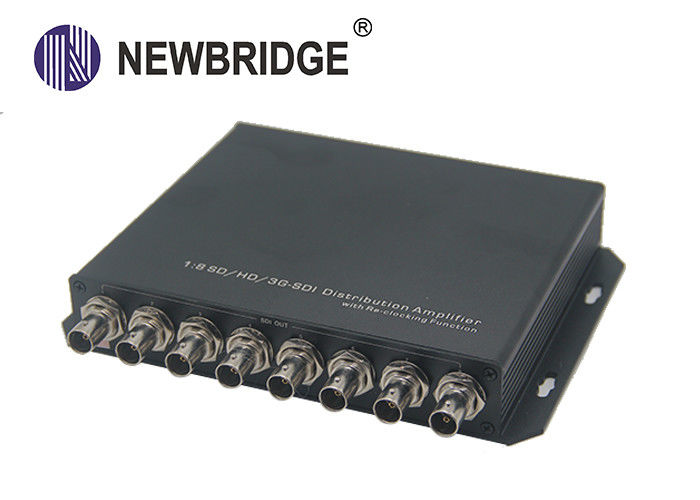

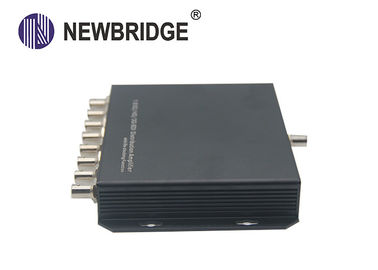

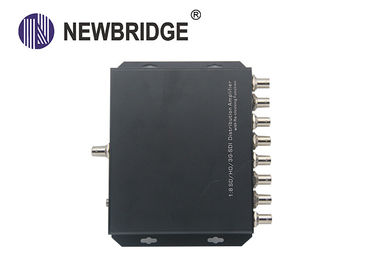

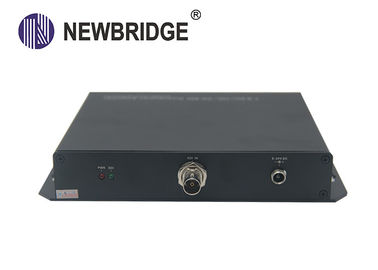

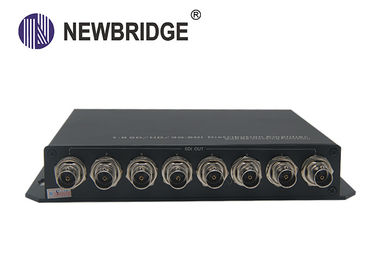

1x8 HD SDI Distribution Amplifier Support Re-Clocking

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	NEWBRIDGE
Certification:	FCC,CE
Model Number:	ND3108

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiation
Packaging Details:	packing can be done by customer's requested, usually used in carton
Delivery Time:	According to the quantiy and stocking , 3-4 working days after payment
Payment Terms:	T/T , Western Union
Supply Ability:	According to the different products , the monthly output is different

Contact Now

Detailed Product Description

Model:	ND3108	Input Signal:	1x BNC SDI, HD-SDI
SDI Signal Range:	0.8V P-p	SDI Impedance:	75 Ohms
Power Supply:	5V~24V DC / Locking Power Connector	Dimension:	176 X 152 X 30mm / 6.92 X 5.98 X 1.18 Inches

1x8 HD SDI Distribution Amplifier Support Re-Clocking

1. Overview

Newbridge® ND3108D/ND3108G distribution amplifier could splits a single SDI source data to several video display and simultaneously amplify SDI signal . There is no video signal loss in the switching process. It supports almost all HD video formats which is SMPTE compliant. It can also achieve up to 1080p@60Hz for Full HD video performance perfectly.

In professional application systems, it is specially designed to several digital display terminals to show the same SDI video simultaneously. It is widely applied to surveillance, broadcast TV station, TV media, video conferences, electronic teaching, wired network areas, etc.

2．Features

1x8 HD SDI Distribution Amplifier Support Re-Clocking

ND3108G

l Support SD-SDI (270Mbps), HD-SDI (1.485Gbps), 3G-SDI (2.97Gbps)
l Full HD video format
l Built-in Cable Equalizer, Re-clocker & Cable Driver
l Max. cable length (Belden 1694A): SD-SDI 400m/1300ft, HD-SDI 200m/600ft, 3G-SDI
140m/450ft
l Excellent SDI signal jitter suppression function
l Power supply and SDI signal format indicator
l Embedded ESD to protect the circuit
l 5V~24V DC

3．Application Diagram

1x8 HD SDI Distribution Amplifier Support Re-Clocking

4. Dimensions

ND3108D

1x8 HD SDI Distribution Amplifier Support Re-Clocking

ND3108G

5. Specifications

Model	ND3108D		ND3108G
Input signal	1x BNC SDI, HD-SDI		1x BNC SDI, HD-SDI,3G-SDI
Input Signal Type	SD-SDI (270Mbps) HD-SDI (1.485Gbps),		SD-SDI (270Mbps) HD-SDI (1.485Gbps), 3G-SDI(2.95Gbps)
Support Input Format	SD-SDI: 525i@59.94Hz,625i@50Hz HD-SDI:720p@23.98Hz/24Hz/25Hz/29.97Hz/ 30Hz@50Hz/59.94Hz/60Hz 1080i 50Hz/59.94Hz/60Hz 1080p@23.98Hz/24Hz/25Hz/29.97H/ 30Hz		SD-SDI: 525i@59.94Hz,625i@50Hz HD-SDI:720p@23.98Hz/24Hz/25Hz/29.97Hz/ 30Hz@50Hz/59.94Hz/60Hz 1080i 50Hz/59.94Hz/60Hz 1080p@23.98Hz/24Hz/25Hz/29.97H/ 30Hz 3G-SDI: 1080p@50Hz/59.94Hz/60Hz
V ideo Standard	SMPTE 424M, SMPTE 292M and SMPTE 259M ITU-R BT.601,ITU-R BT.1120
SDI Signal Range	0.8V p-p
SDI Impedance	75 ohms
SDI Coupling Type	AC Coupling
Max. Input Coax Length	Belden 1694A SD-SDI 400m / 1300ft ; HD-SDI 200m / 600ft ;3G-SDI 140m / 450ft
Output signal	8x BNC SD-SDI, HD-SDI	8x BNC SD-SDI, HD-SDI,3G-SDI
Re-clocking	Auto Support 270Mbps/1.485Gbps
Power Supply	5V~24V DC / Locking Power Connector
Power Consumption	10 Watts (max)
Operating Temperature	-10°C ~ 60°C / 14°F ~ 140°F
Storage Temperature	-30°C ~ 70°C / -22°F ~158°F
Relative Humidity	20~90% RH (Non-condensation)
Dimension	176 x 152 x 30mm / 6.92 x 5.98 x 1.18 inches	176 x 155 x 30mm / 6.92 x 6.38 x 1.18 inches
Weight	480g
