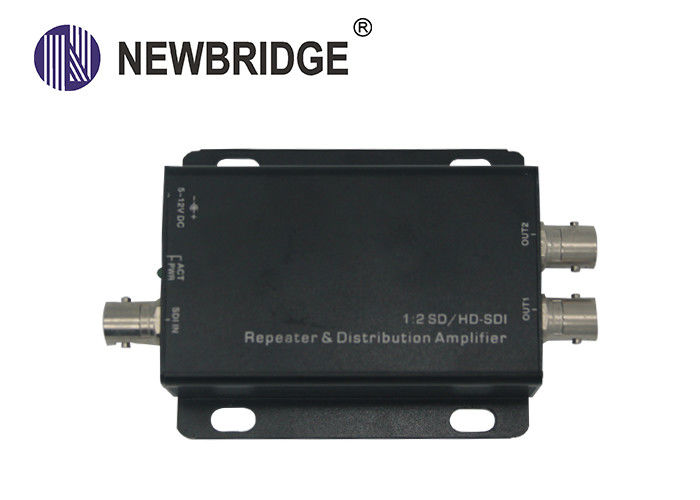

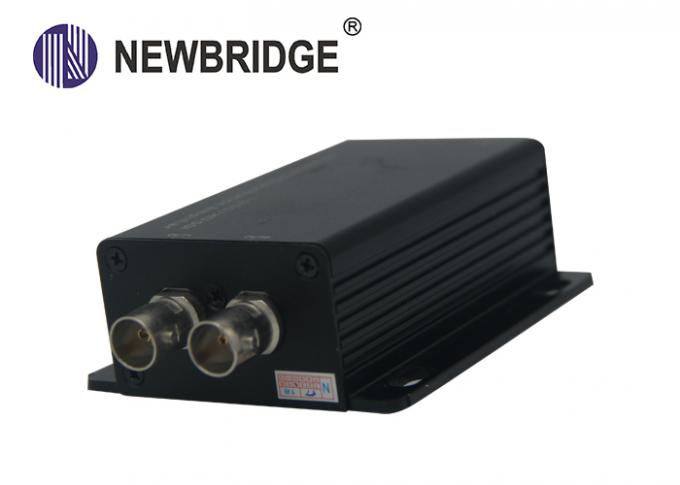

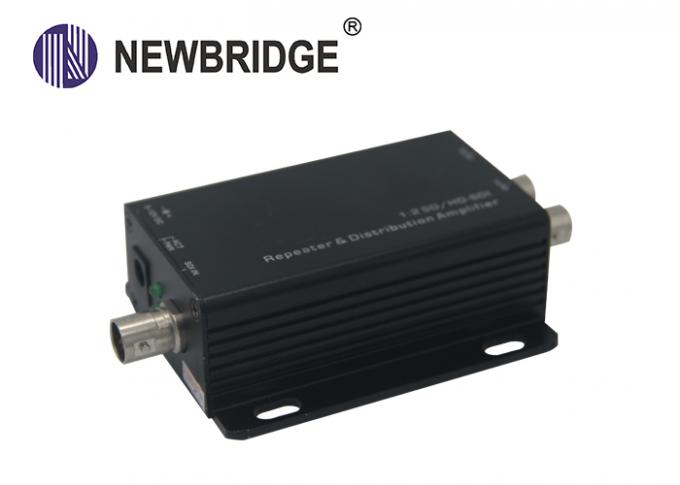

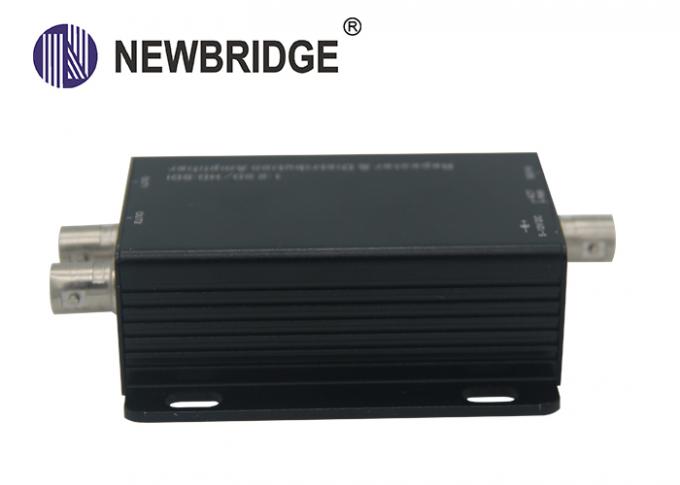

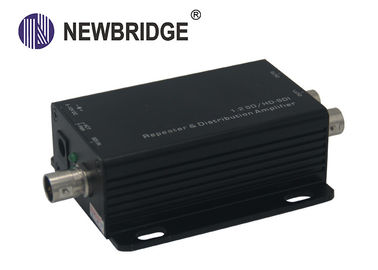

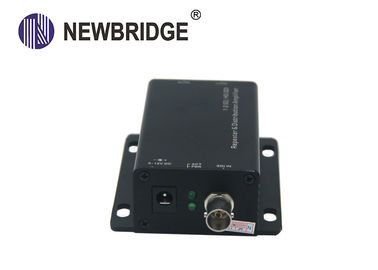

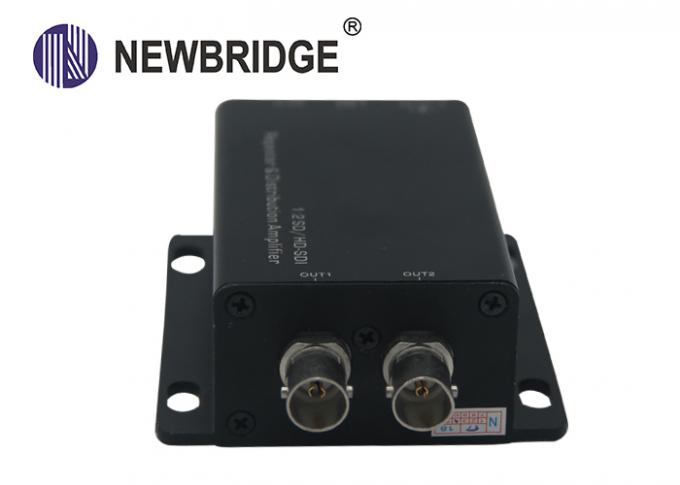

HD-SDI Distribution Amplifier 1 x 2 SD/HD -SDI Repeaters​

HD-SDI Distribution Amplifier 1 x 2 SD/HD -SDI Repeaters​

    • HD-SDI Distribution Amplifier 1 x 2 SD/HD -SDI Repeaters​
    • HD-SDI Distribution Amplifier 1 x 2 SD/HD -SDI Repeaters​
    • HD-SDI Distribution Amplifier 1 x 2 SD/HD -SDI Repeaters​
    • HD-SDI Distribution Amplifier 1 x 2 SD/HD -SDI Repeaters​
    • HD-SDI Distribution Amplifier 1 x 2 SD/HD -SDI Repeaters​
    • HD-SDI Distribution Amplifier 1 x 2 SD/HD -SDI Repeaters​
    • HD-SDI Distribution Amplifier 1 x 2 SD/HD -SDI Repeaters​
  • HD-SDI Distribution Amplifier 1 x 2 SD/HD -SDI Repeaters​

    Product Details:

    Place of Origin: SHENZHEN,CHINA
    Brand Name: NEWBRIDGE
    Certification: FCC,CE
    Model Number: ND1102BD

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Price: depends on the quantity
    Packaging Details: packing can be done by customer's requested, usually used in carton
    Delivery Time: According to the quantiy and stocking , 3-4 working days after payment
    Payment Terms: T/T , Western Union
    Supply Ability: According to the different products , the monthly output is different
    Contact Now
    Detailed Product Description
    SDI Standard: HD-SDI, SD-SDI Data Rates: 270Mbps/1.485 Gbps/2.97Gbps
    Signal Type: SMPTE 292M, SMPTE 259M,SMPTE424M Power Supply: DC 5-24V
    Size: 80*61*28mm Certification: CE,FCC

    HD-SDI Distribution Amplifier 1 x 2 SD/HD -SDI Repeaters​



    Newbridge® ND1102BD SD HD-SDI 1:2 Repeater& Distribution Amplifier is a 1 to 2 repeater and distribution amplifier with Re-clocking function It receive one SDI input and perfectly duplicates it Then it re-transmits two SDI outputs for real time multi-viewing It is a reliable video device splitting a SDI or HD-SDI video source to two HD-SDI or SD-SDI display at the same time and takes one input then re-clocks and equalizes the signal and distributes it to two identical outputs





    Feature

    ◆SDI Standard: HD-SDI, SD-SDI
    ◆Data Rates: 270Mbps/1.485 GbpsSignal Type: SMPTE 292M, SMPTE 259M
    ◆Two separately buffered outputs
    ◆Cable equalization (Beldon 1694A) retiming and signalRe-clocking function capability – unlimited repeater connection
    ◆With LED indication of input lock and rate
    ◆Pass all ancillary data
    ◆5V~12V DC





    Specification



    Model ND1102BD
    HD-SDE-122R
    Re-clocking Function Yes
    SDI Standards SD-SDI, HD-SDI
    HD/SD-SDI Detection Auto
    Supported Protocols SMPTE 259M SMPTE 292M SMPTE 344M
    Data Rates 270 / 1483 / 1485 Mbps
    V ideo Support SD: 525i @ 59.94Hz, 625i @ 50Hz
    HD: 720p @ 23.98/24Hz/25Hz/29.97Hz/30Hz/50Hz / 59.94Hz / 60Hz
    1080i @ 50Hz / 59.94Hz / 60Hz
    1080p @23.98Hz/24Hz/25Hz/29.97Hz/30Hz
    SDI Signal Type SMPTE-292M, SMPTE-259M
    Output Impedance 75 ohms

    Max. Distance
    Belden 1694A
    SD-SDI 400m / 1300ft ; HD-SDI 200m / 600ft
    Audio Support Yes
    Input 1x BNC [SDI]
    Output 2x BNC [SDI]
    BNC Connector 75 ohms inter-locked socket
    Power Consumption 2~4 Watts
    Relative Humidity 20~90% RH (no condensation)
    Dimension 80*61*28mm
    Weight 120g

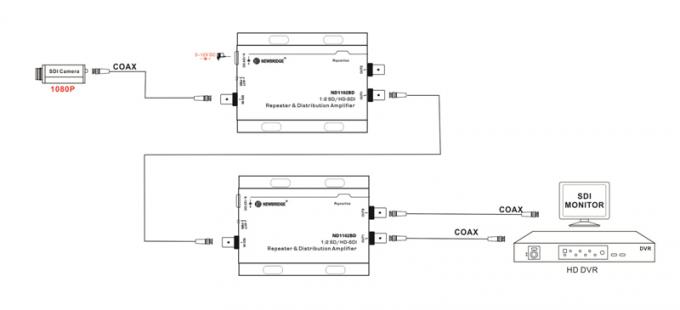

    Connection diagram
    HD-SDI Distribution Amplifier 1 x 2 SD/HD -SDI Repeaters​


    Order information
    Part No Description of product Unit
    ND1120BD 1X2 SD/HD -SDI Repeaters pcs
