Detailed Product Description

SDI Standard:	HD-SDI, SD-SDI,3G-SDI	Data Rates:	270Mbps/1.485 Gbps/2.97Gbps
Signal Type:	SMPTE 292M, SMPTE 259M,SMPTE424M	SDI Output Interface:	8×BNC SDI
Size:	176×162×30mm	Certification:	CE,FCC

HD-SDI Distribution Amplifier SD/HD/3G-SDI 1 to 4 Distribution Amplifier

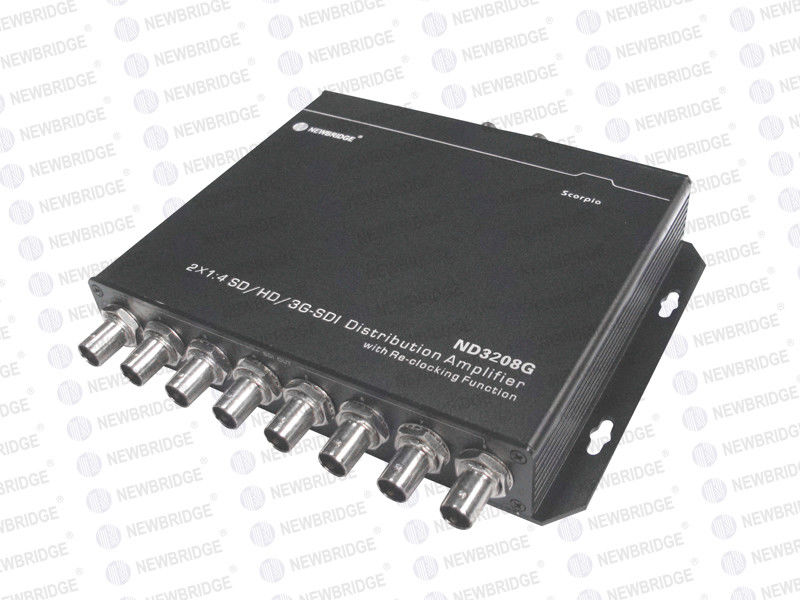

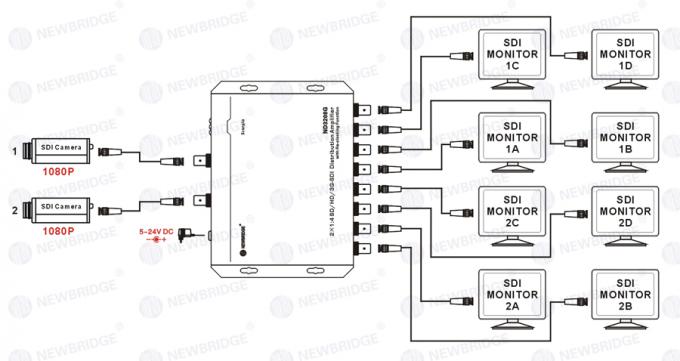

The Newbridge ND3208G2 x 1:4 SD/HD/3G-SDI splitter is a video signal adaptation magnifying device that assigns two SDI video signal data to 4/8 SDI signals simultaneously. In the process of conversion, there is no signal loss, and the clean, high clear picture is exported to each SDI display device. The device fully supports a variety of formats (NTSC, PAL and other formats), and the perfect realization of the 1080p@60Hz Full HD output.

Feature

◆The implementations of 2 to 8 SDI video distribution;

◆Support SD SDI (270Mbps) HD-SDI (1.485Gbps), HD and full HD 3G-SDI video format (2.97Gbps);

◆The built-in cable equalizer Equilizer clock regeneration circuit Reclocker and cable driver Cable Driver;

◆The maximum cable length (Belden-B1694): SD 400m, HD 200m support, 3G support 140m;

◆SDI - excellent signal jitter suppression function, near perfect eye index;

◆It has the power and SDI signal format indicator, user-friendly real-time monitoring;

◆The built-in ESD protection circuit can effectively prevent electrostatic damage;

◆The CE and FCC certification;

Specification

Model	ND3208G
InputInterface	2xBNCSDI
InputSignalType	SD-SDI(270Mbps),HD-SDI(1.485Gbps), 3G-SDI(2.97Gbps)
SupportInputFormat	525i,576i 720p@23.98/24/25/29.97/30 /50/60,1080i@50/601080p@24/25/30 1080p@50/59.94/60
SDISignalRange	0.8Vp-p
SDIImpedance	75ohms
SDICouplingType	ACCoupling
Maximum input cable length	Belden 1694A: SD-SDI 400m,HD-SDI 200m,3G-SDI 140m
SDILoopOutInterface	1xBNCSDI
HDMI/DVIOutputInterface	1xHDMI1.3
FrequencyBandwidth	165MHz/upto standardwithHDCP:HDMI1.3
VGAOutput	1xVGA
AV (CVBS)	1xBNC –F
Power Supply	5V~24VDC
SDI output interface	8×BNC SDI
OperatingTemperature	0℃~40℃/32°F~104°F
StorageTemperature	-30°C~70°C/-22°F~158°F
RelativeHumidity	20~90%RH(Non-condensation)
SDI signal jitter (typical value)	SD-SDI≤0.1UI HD-SDI≤0.2UI 3G-SDI≤0.4 UI
