Place of Origin: | SHENZHEN,CHINA |
Brand Name: | NEWBRIDGE |
Certification: | FCC,CE |
Model Number: | ND3204G |
Minimum Order Quantity: | 1PC |
---|---|
Price: | Negotiation |
Packaging Details: | packing can be done by customer's requested, usually used in carton |
Delivery Time: | According to the quantiy and stocking , 3-4 working days after payment |
Payment Terms: | T/T , Western Union |
Supply Ability: | According to the different products , the monthly output is different |
Model: | ND3204G | SDI Signal Range: | 0.8V P-p |
---|---|---|---|
SDI Impedance: | 75 Ohms | Power Supply: | 5V~24V DC / Locking Power Connector |
Storage Temperature: | -30°C ~ 70°C / -22°F ~158°F | Dimension: | 93 X 120x 36 Mm / 3.66 X 4.72 X 1.42 Inches |

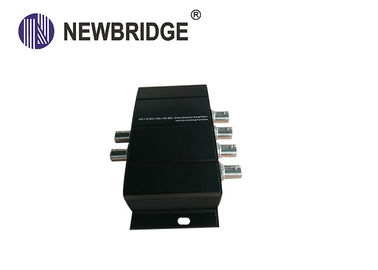

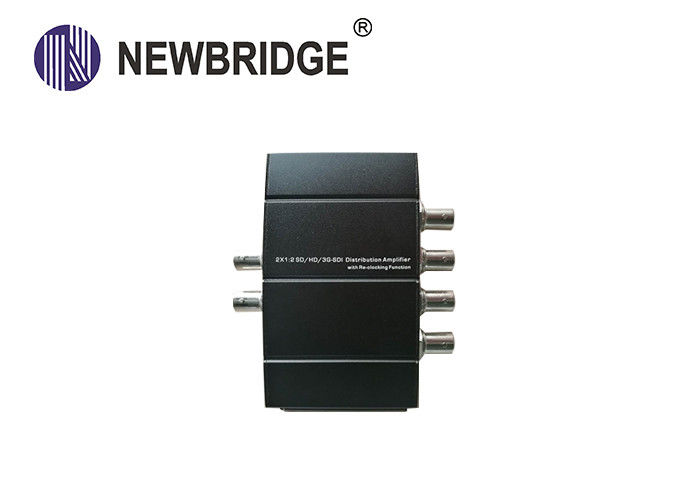

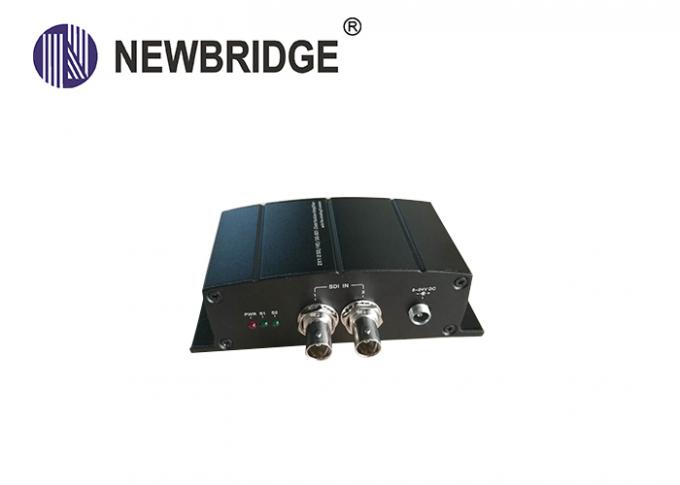

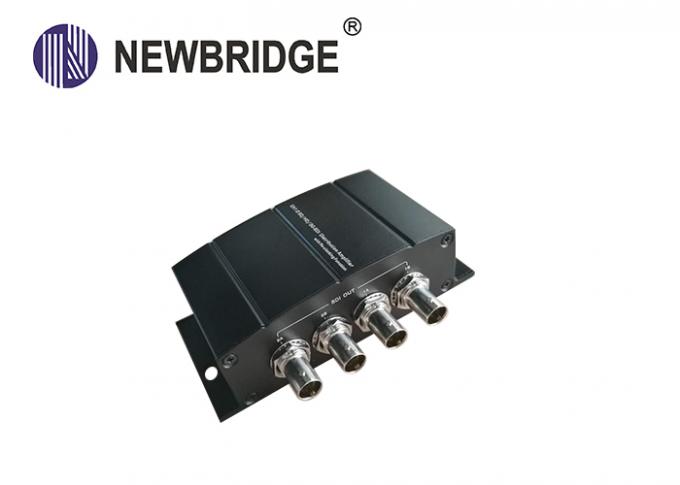

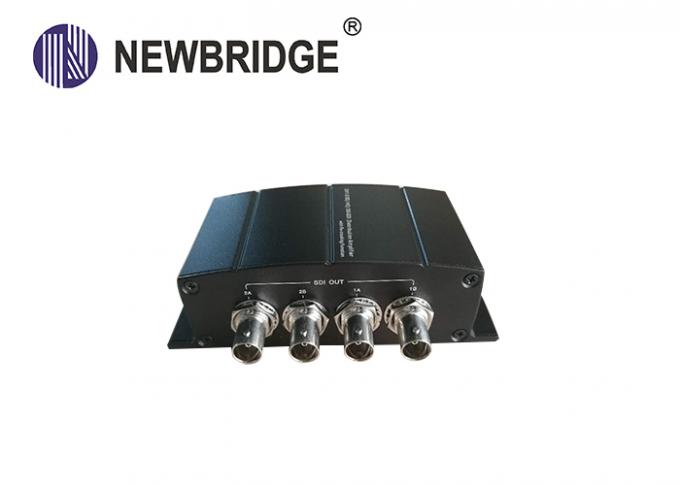

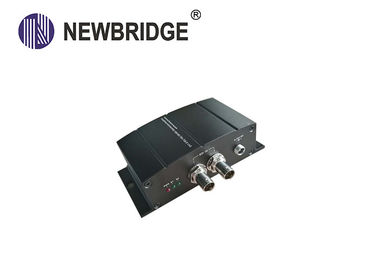

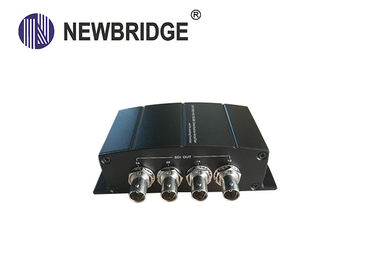

2 to 4 HD SDI Distribution Amplifier with Video Signal Distribution Amplifier
1. Overview
Newbridge® ND3204Gdistribution amplifier could splits a single SDI source data to several video display and simultaneously amplify SDI signal . There is no video signal loss in the switching process. It supports almost all HD video formats which is SMPTE compliant. It can also achieve up to 1080p@60Hz for Full HD video performance perfectly.
In professional application systems, it is specially designed to several digital display terminals to show the same SDI video simultaneously. It is widely applied to surveillance, broadcast TV station, TV media, video conferences, electronic teaching, wired network areas, etc.
2.Features
| l Support SD-SDI (270Mbps), HD-SDI (1.485Gbps) & 3G-SDI (2.97Gbps) l Full HD video format l Built-in Cable Equalizer, Re-clocker & Cable Driver l Max. cable length (Belden 1694A): SD-SDI 400m/1300ft, HD-SDI 200m/600ft, 3G-SDI 140m/450ft l Excellent SDI signal jitter suppression function l Power supply and SDI signal format indicator l Embedded ESD to protect the circuit l 5V~24V DC |
3.Application Diagram
4. Dimensions

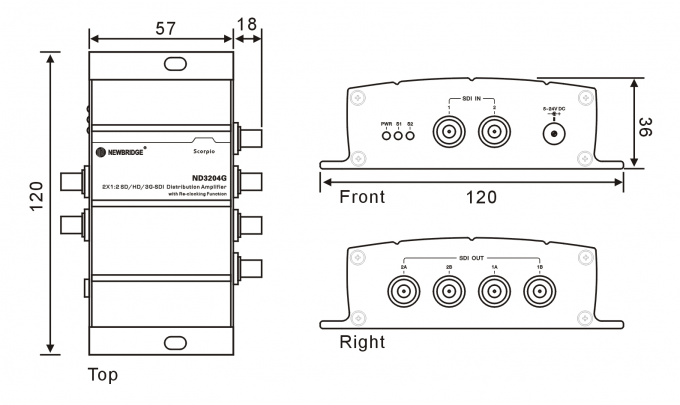

ND3204G

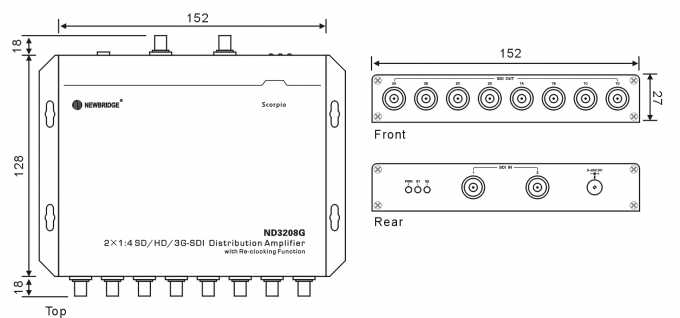

ND3208G
5. Specifications
Model | ND3204G | ND3208G | ||
Input signal | 2x BNC( SD-SDI, HD-SDI, 3G-SDI) | |||
Input Signal Type | SD-SDI (270Mbps), HD-SDI (1.485Gbps) 3G-SDI(2.97Gbps) | |||
Support Input Format | SD-SDI: 480i, 576i HD-SDI: 720p24/25/30/50/59.94/60 all frame rate; 1080i all frame rate 1080p all frame rate 3G-SDI: 1080p all frame rate | |||
V ideo Standard | SMPTE 424M, SMPTE 292M and SMPTE 259M ITU-R BT.601,ITU-R BT.1120 | |||
SDI Signal Range | 0.8V p-p | |||
SDI Impedance | 75 ohms | |||
SDI Coupling Type | AC Coupling | |||
Max. Input Coax Length | Belden 1694A SD-SDI 400m / 1300ft ; HD-SDI 200m / 600ft ; 3G-SDI 120m / 400ft | |||
Output signal | 4x BNC SD-SDI, HD-SDI | 8x BNC SD-SDI, HD-SDI, 3G-SDI | ||
Re-clocking | Auto Support 270Mbps/1.485Gbps/2.97Gbps | Auto Support 270Mbps/1.485Gbps/2.97Gbps | ||
5V~24V DC, 2A w/ Locking Power Connector | ||||
Power Consumption | 2~3 Watts | 4~5Watts | ||
Operating Temperature | -10°C ~ 60°C / 14°F ~ 140°F | |||
Storage Temperature | -30°C ~ 70°C / -22°F ~158°F | |||
Relative Humidity | 20~90% RH (Non-condensation) | |||
Dimension | 93 x 120x 36 mm / | 176 x 162 x 30mm / | ||
Weight | 180g | 500g |
6. Order Information
Part No | Description of product | Unit |
ND3204G | 2 x1:2 SD/HD/3G-SDI Distribution Amplifier | pcs |
ND3208G | 2 x1:4 SD/HD/3G-SDI Distribution Amplifier | pcs |
