Power Supply: | DC 48V-57V | Dimensions: | 63.2mm×82mm×25mm |
---|---|---|---|
Input: | RJ-45 | Power Consumption: | <2W |
Storage Temperature: | -40℃~80℃ | Network Delay: | <1ms |
Weight: | IPC:134g,SV:134g |

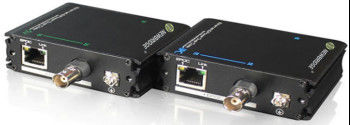

PoE HD IP extender with RJ45 and BNC port
Overview :
ND - 5105 EPOC products by ND - 5105 - SV and ND - 5105 EPOC - IPC, SV side has 48-57 VDC terminals, a PoE input ports, two output port: BNC and RJ45: IPC side has two input ports: BNC and RJ45, a PoE output port.
The products are mainly for hd network transmission distance section design, power supply for a difficult problem, through converts the signal to the IPC network carrier signal through the transmission medium extended to SV side, and then converts the signal carrier network signal, greatly satisfy the needs of long-distance network signal transmission.
Feature :
◆ Mixer adopts advanced transmission and power supply technology, SV port which can be PoE by electricity can also be the power adapter, power supply, compatible with a variety of power supply mode, the IPC side power supply output, accord with standard of af, and the at power supply.
◆ Coaxial cable of the mixer can be as far as network signal and the signal transmission to 500 m.
◆ In pieces cable network signal and the signal transmission can be as far as to 400 m.
◆ In pieces the network delay is less than 1 ms.
◆ Mixer can meet peer-to-peer applications.
Technical specification :
Type | ND-5105EPOC IPC transmitter | ND-5105EPOC SV Receiver | |
Input | RJ-45 | BNC , 75ohm | |
Output | BNC, 75 ohm | RJ-45 | |
Network port parameters
|
Ethernet port |
EPOC:0-100Mbps network:10/100Mbps |
|
Max distance (Coax cable ) |
EPOC Coax:0-500m EPOC cat5/6:0-400m |
||
Output—CVBS | BNC , 75ohm and Cat5e/6 | ||
Standard | IEEE802.3af,IEEE802.3at | ||
PoE by way of electricity | Compatible with jumper and intermediate crossover method at the end | ||
Standard | web standard |
IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX |
|
network delay | <1ms | ||
power section | power supply mode | PoE power supply or power adapter power supply | |
Power Supply | DC 48V-57V | ||
Power consumption | <2W | ||
Environmental | Operating Temperature | 0-55℃ | |
Storage Temperature | -40℃-85℃ | ||
Operating | 10% ~ 90% non-condensing | ||
The body attribute | Dimensions (LxWxH) | 63.2mm×82mm×25mm | |
weight | IPC:134g,SV:134g | ||
reliability | MTBF | >30000h |

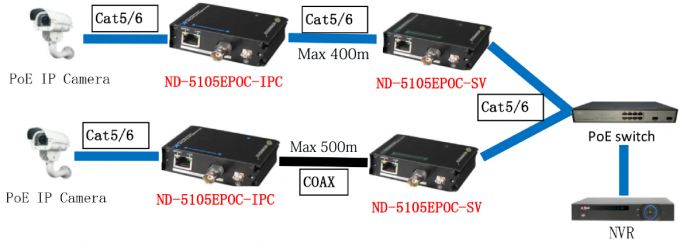

Typical application :
Order Information
Part No | Description of product | Unit |
ND-5105EPOC IPC | transmitter | 1pcs |
ND-5105EPOC SV | Receiver | 1pcs |
