| Place of Origin: | SHENZHEN,CHINA |
| Brand Name: | NEWBRIDGE |
| Certification: | FCC,CE |
| Model Number: | ND-1104-150 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | packing can be done by customer's requested, usually used in carton |
| Delivery Time: | According to the quantiy and stocking , 3-4 working days after payment |
| Payment Terms: | T/T , Western Union |
| Supply Ability: | According to the different products , the monthly output is different |
| Type: | HDMI Extender Over Cat5/6 | Power Adapter: | Input: 100V - 240V (50 - 60Hz) Output: 5V/1A |
|---|---|---|---|
| Operating Temperature Range: | 0℃ - 70℃ | Size(L-W-H): | 100×60×25mm |
| Weight: | 70g | Storage Temperature: | -10℃ - 80℃ |
HDMI Fiber Optic Extender with resolution 1080P ,IR control
1. Overview
ND1104 HDMI extender via cat5 is used to extend HDMI audio and video via twist pair up to 150M.. The Kit device includes a transmitter and a receiver . At the same time, this product support the built-in IR remote control function.
|
|
l Support HDMI 1.3/HDCP1.1 & 1.2 l Transmission distance is up to 150M via twist pair l Support IR remote control l LED indicator to show work status |

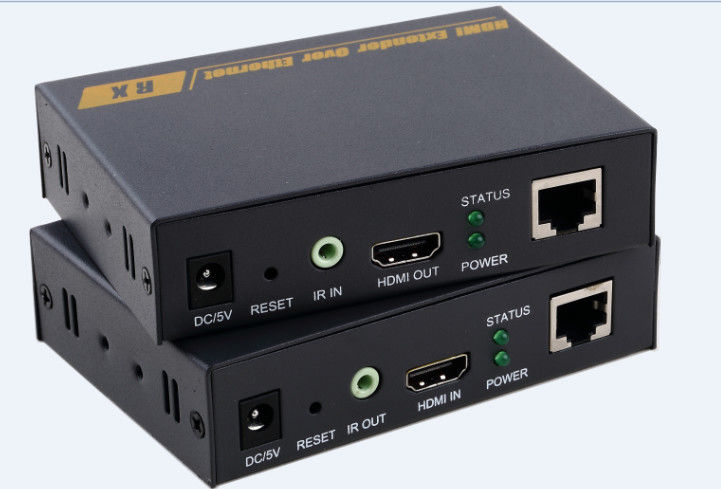

2. Panel Description
LED indications description :
| 5V/1A | Supply power |
| RESET | Hold down the key for 10 seconds, the model will Restore the default setting |
| IR-OUT | Connect IR transmitter to this Port. |
| HDMI - IN | Connect HDMI Source to this Port. |
| STATUS | When system start up, the Green LED will be on,When transmit video, the led will blink. |
| HDMI - Out | Connect HDMI sink device to this Port. |
| Power | Power on, The Red led is on |
3. Specifications
| Type | HDMI extender over cat5/6 |
| HDMI Resolutions | 480p,576p,720p 25/30/50/60 ,1080p 25/30 |
| Audio | Sample rate:32kHz, 44.1kHz and 48kHz |
| IR remote control | 38KHz; NEC |
| HDMI | HDMI 1.3 |
| HDCP | HDMI 1.2 |
| Power adapter | Input: 100V - 240V (50 - 60Hz) Output: 5V/1A |
| Power consumption | 3W |
| Size(L-W-H) | 100×60×25mm |
| Weight | 70g |
| Operating Temperature/Humidity | 0℃ - 70℃ / 10% - 80%RH(no condensation) |
| Storage Temperature/Humidity | -10℃ - 80℃/ 5% -90% RH(no condensation) |
. Application :

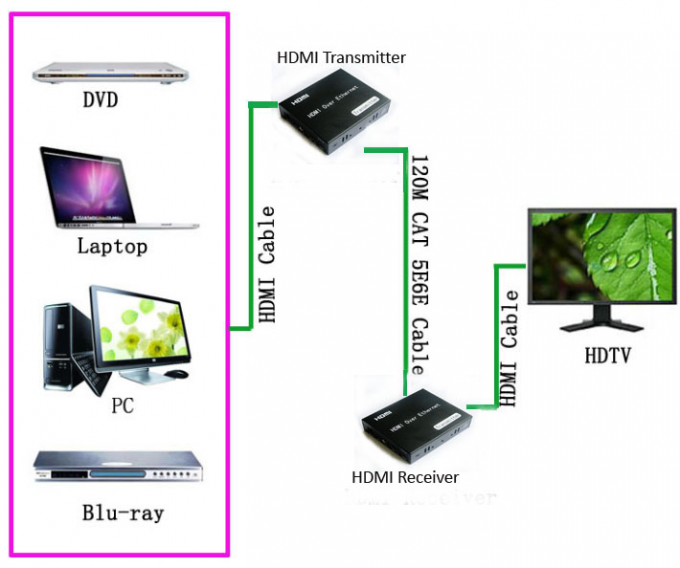

1) 1 transmitter to 1 receiver application
 |

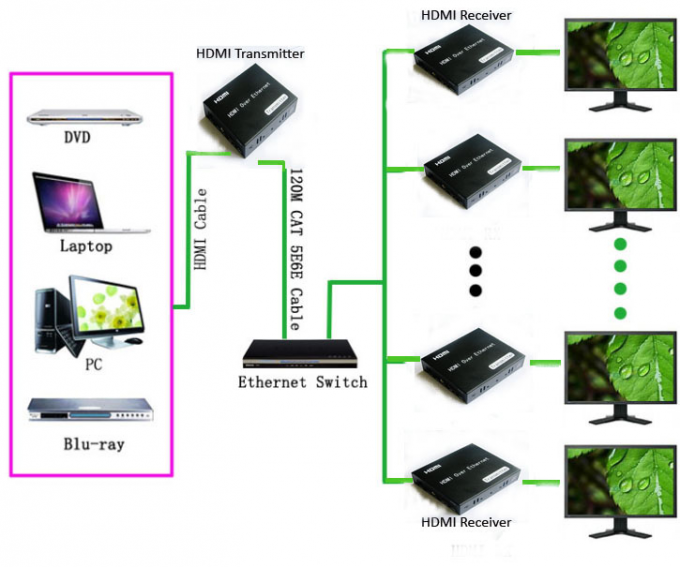

2) 1 transmitter to N receiver application :
