4A B Building Zhuao Industrial Park Gushu Xixiang Baoan District Shenzhen,China,518126 | info@newbridge.com.cn |
Place of Origin: | SHENZHEN,CHINA |
Brand Name: | NEWBRIDGE |
Certification: | FCC,CE |
Model Number: | ND-8110H |
Minimum Order Quantity: | 1PC |
---|---|
Price: | Negotiation |
Packaging Details: | packing can be done by customer's requested, usually used in carton |
Delivery Time: | According to the quantiy and stocking , 3-4 working days after payment |
Payment Terms: | T/T , Western Union |
Supply Ability: | According to the different products , the monthly output is different |
Resolution: | 1080p | Power Supply: | DC 5V |
---|---|---|---|
Operating Temperature Range: | -5 To +35°C | Operating humidity range: | 5 To 90 % RH (no Condensation) |
Input and output audio interface: | 3.5MM Audio |

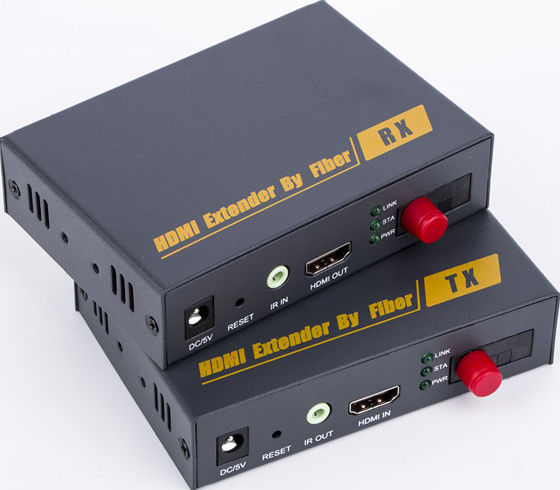

HDMI Fiber Optic Extender with resolution 1080P ,IR control
Description
The PW-DT200 Fiber optic extender provides extension of HDMI signals long distances over one fiber optic cable, it supports high resolution up to 1080P and IR transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Features
Specifications
Parameter | Description | |
Video | Standards | HDMI 1.3; HDCP 1.2 |
Maximum pixel clock | 165MHz | |
Maximum data rate | 6.75Gbps | |
Resolution range | Up to 1920X1080P@60Hz | |
Connector | Female HDMI type A | |
Impedance | 100Ω | |
Infrared | Interface | 3.5mm earphone seat |
Signal type | Digital | |
Transmission direction | Unidirectional | |
Carrier frequency | 38kHz | |
Optical fiber | Interface | SC/FC connector |
Fiber type | Single Mode | |
Wavelength | 1310nm, 1510nm | |
Interface bandwidth | 155Mbps | |
Transmission distance | Standard: 20km; | |
Other | Power supply | The power adapter: DC 5V/2A |
Power dissipation | MAX 5W | |
Temperature | Operating: -5℃ ~ +70℃ | |
Humidity | Operating: 5% ~ 90% | |
Dimension | 113*80*28mm | |
The warranty | 1 year free warranty |
Panel

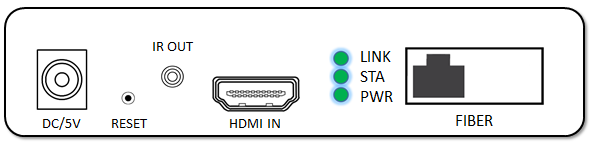

Transmitter:

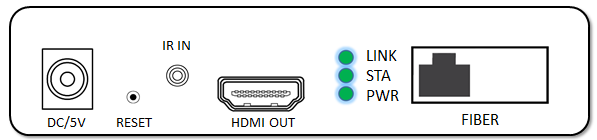

Receiver:
Port name | Description |
HDMI IN/OUT | HDMI signal input/output |
IR IN/OUT | Infrared signal input/output |
FIBER | Optical fiber interface |
DC/5V | Power adapter socket |
RESET | Restore button, press for 5 second to restore system setting to factory default |
LED indicator | Description |
LINK | Optical fiber signal connection indicator |
STA | Video signal connection indicator |
PWR | System power indicator |
Package list
Installation

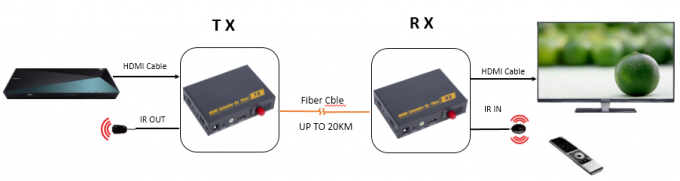

Diagram
Warranty
Thank you very much for using our products.
The warranty time is one year and life-long maintenance. During this period, any belongs to under normal usage circumstance cause because of the product quality’s problem of breakdown, our company will be responsible for giving free maintain.
Free maintain won’t be given under the following circumstance:
