Support 3D 1080P Hdmi Extender Over Fiber Cat 5E / 6 Cable Bi Directional IR Control

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	NEWBRIDGE
Certification:	CE,FCC
Model Number:	ND1104-EX08

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiation
Packaging Details:	packing can be done by customer's requested, usually used in carton
Delivery Time:	According to the quantiy and stocking , 3-4 working days after payment
Payment Terms:	T/T , Western Union
Supply Ability:	According to the different products , the monthly output is different

Contact Now

Detailed Product Description

TX Dimension:	93x80x25 Mm	Max Bandwidth:	340MHz
Max Band Rate:	3.4Gbps	Power Output:	DC 5V 1A
TX Max Working Current:	510mA	TX Weight:	614g

60m HDMI 1X2 splitter Extender by cat 5E/6 Cable,Fiber Optic Extender

Dear customer
Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.

The Extender uses twos way single cat-6(recommended) cable instead of HDMI cable to transmit high definition signal up to 60 meters, cutting down the cost. The Extender is designed to supply for long distance transmission of high definition signal.

Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

Feature
★ Support HDMI 1.4a
★ Support 3D
★ Supports Bi-directional IR control
★ Support highest video resolution 1080p/60Hz
★ Support 1.5Gbps data rate and tmds clock up to 148.5MHz
★ Support 8 bit deep color
★ Support AWG26 HDMI standard cable, input up to 10 metres, output up to 15 metres
★ Signal transmission: By using single cat-5e or cat-6(recommended) cable instead of HDMI cable, it can extend the distance up to 60 meters between TX and RX.
★ No loss of quality
★ Install in minutes
★ Need DC5V/1A power supply

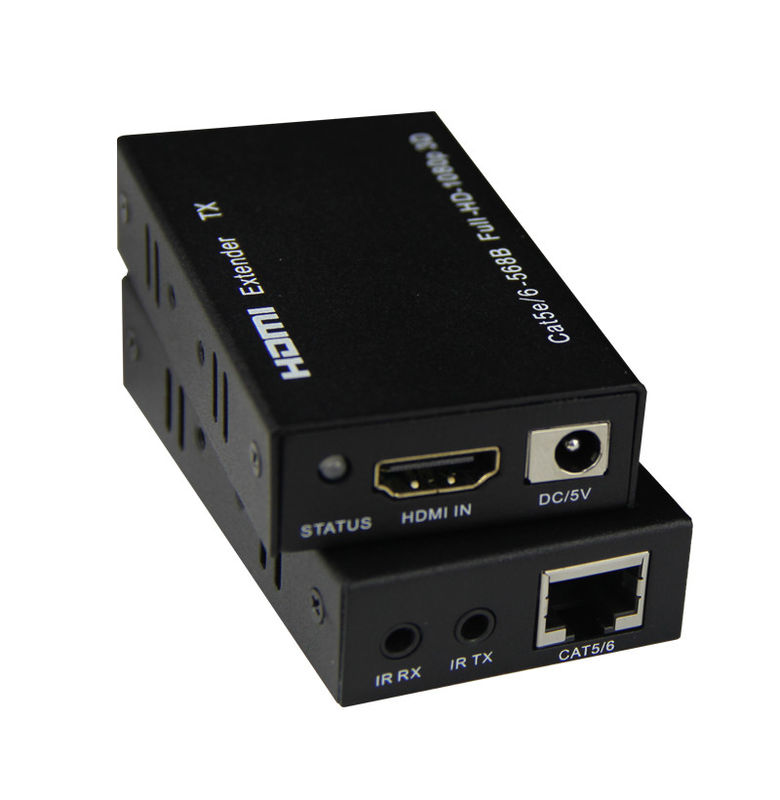

Product Picture

Support 3D 1080P Hdmi Extender Over Fiber Cat 5E / 6 Cable Bi Directional IR Control

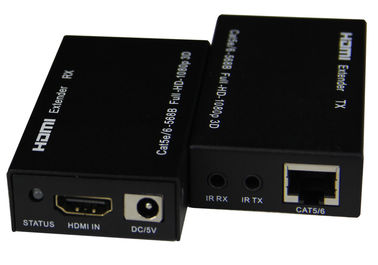

Physical Connection Showing Picture

Support 3D 1080P Hdmi Extender Over Fiber Cat 5E / 6 Cable Bi Directional IR Control

Operating and Connecting
1.Connect one HDMI cable between source device and TX Extender, the max cable distance is 10 meters
2.Connect one HDMI cable between display device and RX Extender, the max cable distance is 15 meters
3.Connect TX and RX Extender via single cat 5E/ 6 cable , the max distance is 60 meters
4.Pls insert the IR RX cables and IR TX cables into the ports of IR RX and IR TX on Transmitter and Receiver
5.Connect 5V power supply to the TX and RX.
6.LED indicator light
TX LED indicator light: When there is no signal input, it turns blue; When there is signal input, it turns red.
RX LED indicator light: When there is no signal input, it turns blue; When there is signal input, it turns red.

Specification

Length of CAT-5E/CAT-6 cable between RX and TX	Up to 60 meters
HDMI Input	24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support Audio input	DTS/Dolby/DTD
HDMI Output	24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support Audio output	DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth	148.5MHz
Max band rate	1.5Gbps
Input Video signal	0.5~1.5Volts p-p
Output DDC signal	5Volts p-p (TT1L)
Input HDMI cable distance	≤10m AWG26 HDMI standard cable
Output HDMI cable distance	≤15m AWG26 HDMI standard cable
TX Max working current	510mA
RX Max working current	100mA
Power adapter format	Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range	(-15 to +55℃)
Operating Humidity range	5 to 90%RH (No Condensation)
TX Weight	100g
Dimension (L x W x H)	81x45x18 (mm)
RX Weight	120g

The Package includes

1. TX Extender x 1pcs
RX Extender x 1 pcs
2. DC 5V Power adapter x 2pcs
3. Bi-directional IR cable x 4pair
4. User Manual

Notes

Please use the machine based on the instruction listed to keep long use lifetime of the machine.

1. The machine should be placed at the spot far from the Damp, High-Temperature, Dusty, Erosive, and oxidative environment.

2. All parts will be free from the strong shake, hit, fall.

3. Touching the power adaptor with the wet hands is prohibited.

4. Please hold the power adaptor head and do not pull the power cord when cut off from the socket.

5. Please turn the power off when the machine is not used for long time.

6. Please do not open the cover and do not touch inside parts.

7. Please use the original factory power adaptor.

Before power on, please check the connection line carefully. And make sure that all interfaces are normally connected. The common trouble shooting way shows below:

Serial NO	Trouble Description	Cause and Ways to deal with
1	Non-Power-Connected	1. Check if the power adaptor head is truly and correctly inserted to the power socket. 2. Check the power switch if it is on status.
2	No Picture	1. Please make sure the TV turns on and connected with the machine well. 2. To check if the signal source turns on and connected well. 3. Check the system connection well. 4. Check if the cables are all in good quality. 5. HDMI Cable should be Standard Cable.
3	Obscure Picture	1. Please try to connect all ports again to avoid bad connection. 2,HDMI Cable Quality ( HDMI Standard cable)
