1080P 60Hz Fiber Optic Extender 60m HDMI 1 x 2 Splitter By Cat 5E / 6 Cable

1080P 60Hz Fiber Optic Extender 60m HDMI 1 x 2 Splitter By Cat 5E / 6 Cable

    • 1080P 60Hz Fiber Optic Extender 60m HDMI 1 x 2 Splitter By Cat 5E / 6 Cable
    • 1080P 60Hz Fiber Optic Extender 60m HDMI 1 x 2 Splitter By Cat 5E / 6 Cable
    • 1080P 60Hz Fiber Optic Extender 60m HDMI 1 x 2 Splitter By Cat 5E / 6 Cable
    • 1080P 60Hz Fiber Optic Extender 60m HDMI 1 x 2 Splitter By Cat 5E / 6 Cable
  • 1080P 60Hz Fiber Optic Extender 60m HDMI 1 x 2 Splitter By Cat 5E / 6 Cable

    Product Details:

    Place of Origin: SHENZHEN,CHINA
    Brand Name: NEWBRIDGE
    Certification: CE,FCC
    Model Number: ND1104-EX09

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Price: Negotiation
    Packaging Details: packing can be done by customer's requested, usually used in carton
    Delivery Time: According to the quantiy and stocking , 3-4 working days after payment
    Payment Terms: T/T , Western Union
    Supply Ability: According to the different products , the monthly output is different
    Contact Now
    Detailed Product Description
    Input Video Signal: 0.5~1.5Volts P-p Bandwidth: 340MHz
    Max Band Rate: 3.4Gbps Operating Temperature Range: (-15 To +55℃)
    TX Weight: 164g RX Weight: 112g

    60m HDMI 1X2 splitter Extender by cat 5E/6 Cable,Fiber Optic Extender



    Dear customer
    Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.


    The Extender uses twos way single cat-6(recommended) cable instead of HDMI cable to transmit high definition signal up to 60 meters, cutting down the cost. The Extender is designed to supply for long distance transmission of high definition signal.



    Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.





    Feature
    ★ Support HDMI 1.4a

    ★ Support 3D
    ★ Support highest video resolution
    ★ Support 3.4Gbps data rate and TMDS clock up to 340MHz
    ★ Support 8/10/12 bit deep color
    ★ Support AWG26 standard HDMI cable, input up to 10 meters, output up to15 meters
    ★ Support twos way cable extender by cat 6
    ★ No loss of quality
    ★ Install in minutes
    ★ Need DC5V/1A power supply

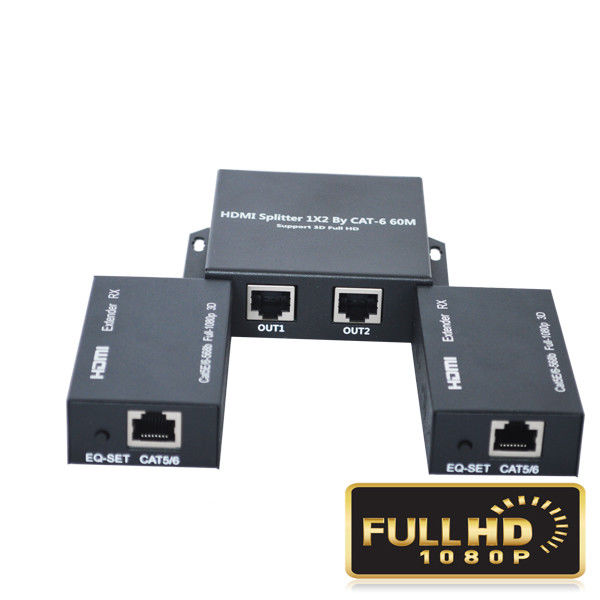

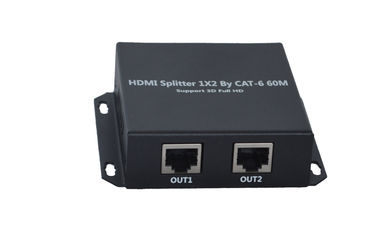

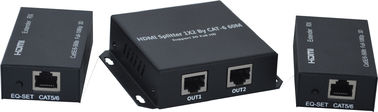

    Physical Connection Showing Picture

    1080P 60Hz Fiber Optic Extender 60m HDMI 1 x 2 Splitter By Cat 5E / 6 Cable

    Interface:​

    RX:1080P 60Hz Fiber Optic Extender 60m HDMI 1 x 2 Splitter By Cat 5E / 6 Cable

    FX:

    1080P 60Hz Fiber Optic Extender 60m HDMI 1 x 2 Splitter By Cat 5E / 6 Cable





    Operating and Connecting
    1. Connect one HDMI cable between source device and TX (Transmitter) Extender, the max cable distance is 15 meters
    2. Connect one HDMI cable between display device and RX (Receiver) Extender, the max cable distance is 20 meters
    3. Connect single cat-5e or cat-6(recommended) cables instead of HDMI cables between TX (Transmitter) and RX (Receiver) Extender, the max cable distance is 60 meters
    4. Connect 5V power supply to the TX (Transmitter) and RX (Receiver). The Power LED light
    device connects well.







    Specification

    Length of CAT-5E/CAT-6 cable between RX and TX Up to 60 meters
    HDMI Input 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
    Support Audio input DTS-HD/Dolby-true HD/DTS/Dolby-AC3/DSD
    HDMI Output 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
    Support Audio output DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
    Max bandwidth 340MHz

    Max band rate

    3.4Gbps

    Input Video signal

    0.5~1.5Volts p-p

    Output DDC signal

    5Volts p-p (TT1L)

    Input HDMI cable distance

    ≤15m AWG26 HDMI standard cable

    Output HDMI cable distance

    ≤20m AWG26 HDMI standard cable

    TX Max working current

    510mA

    RX Max working current

    100mA

    Power adapter format

    Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

    Operating Temperature range

    (-15 to +55℃)

    Operating Humidity range

    5 to 90%RH (No Condensation)

    TX Weight

    164g

    TX Dimension (L x W x H)

    93x80x25 (mm)

    RX Weight

    112g

    RX Dimension (L x W x H)

    80X45X23 (mm)





    The Package includes

    1. TX Extender:1 pcs RX Extender:2 pcs
    2. 5V DC Power adapter 3pcs
    3 .User Manual


    Notes
    Please use the machine based on the instruction listed to keep long use lifetime of the machine.
    1. The machine should be placed at the spot far from the Damp, High-Temperature, Dusty, Erosive, and oxidative environment.
    2. All parts will be free from the strong shake, hit, fall.
    3. Touching the power adaptor with the wet hands is prohibited.
    4. Please hold the power adaptor head and do not pull the power cord when cut off from the socket.
    5. Please turn the power off when the machine is not used for long time.
    6. Please do not open the cover and do not touch inside parts.
    7. Please use the original factory power adaptor.


    Before power on, please check the connection line carefully. And make sure that all interfaces are normally connected. The common trouble shooting way shows below:



    Serial NO Trouble Description Cause and Ways to deal with
    1 Non-Power-Connected

    1. Check if the power adaptor head is truly and correctly inserted to the power socket.

    2. Check the power switch if it is on status.

    2 No Picture

    1. Please make sure the TV turns on and connected with the machine well.

    2. To check if the signal source turns on and connected well.

    3. Check the system connection well.

    4. Check if the cables are all in good quality.

    5. HDMI Cable should be Standard Cable.

    3 Obscure Picture

    1. Please try to connect all ports again to avoid bad connection.

    2,HDMI Cable Quality ( HDMI Standard cable)



    Contact Details
