4A B Building Zhuao Industrial Park Gushu Xixiang Baoan District Shenzhen,China,518126 | info@newbridge.com.cn |
Place of Origin: | SHENZHEN,CHINA |
Brand Name: | NEWBRIDGE |
Certification: | FCC,CE |
Model Number: | ND-5105 |
Minimum Order Quantity: | 1PC |
---|---|
Price: | Negotiation |
Packaging Details: | packing can be done by customer's requested, usually used in carton |
Delivery Time: | According to the quantiy and stocking , 3-4 working days after payment |
Payment Terms: | T/T , Western Union |
Supply Ability: | According to the different products , the monthly output is different |
Ethernet Port: | RJ-45 | Power Adapter: | Input: 100V - 240V (50 - 60Hz) Output: 5V/1A |
---|---|---|---|
Work Temperature: | -40 ℃~+85 ℃ | Relative Humidity: | 0~95% (no Cond) |
Storage Temperature: | -60℃~+100℃ | Power Consumption Erature: | 5W(Input:DC12V 400mA) |
Size: | 98x 65x28 Mm | Power Supply: | AC85-260V/50Hz/60Hz. DC12V,2.1A |

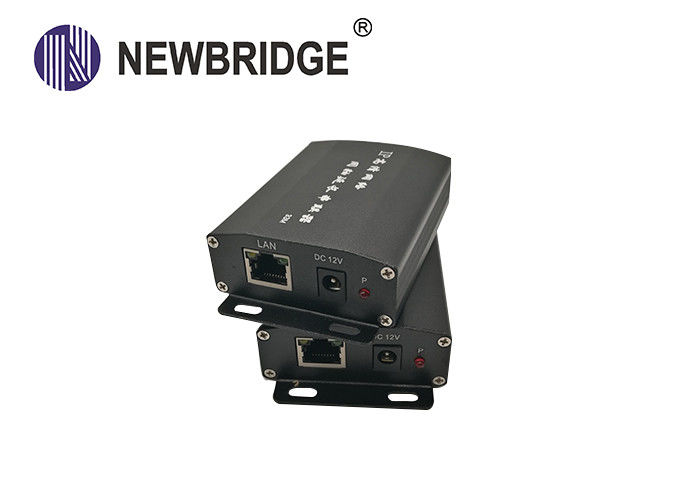

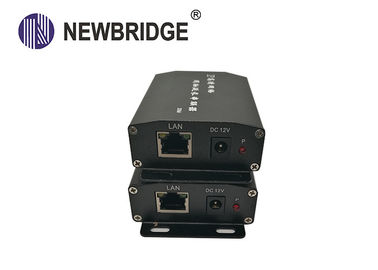

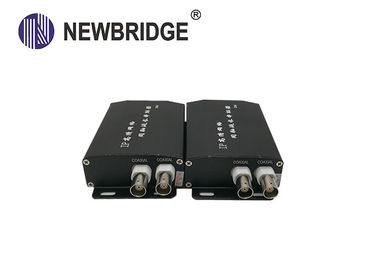

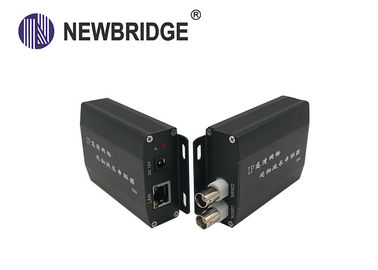

Fiber optic extender ip+power supply Ethernet Over Coax Extender with 2 BNC ports & 1 rj45 port
Overview :
Our IP extender is designed to extend the distance over coax cable , twisted pair and telephone line up to 2000m .It apply to security link over coax technology to realize HD IP and SD IP video surveillance by utilizing
existed analog system .
This device is used as pair. One is transmitter , another is receiver. It is another main feature to support up to 60 transmitters parallel or series connection . So it is easy to networking.
Our device realize upgrading from analog surveillance system to HD IP surveillance easily .
Feature :
◆ Extend HP IP signal over coax cable, twisted pair,telephone line,power cable (two wire)
◆ Convert network signal to analog video signal to extend transmission distance up to 2000m
◆ Support HD IP resolution :720P,960P,1080P HD IP and SD IP resolution .
◆ Max Data bandwidth:100Mbps
◆ Support Auto-networking over series or shunt connection up to 60 piece
◆ Support plug and play function
◆ Apply to three class lightning-proof configuration
Technical specification :
Type | ND-5105-TX transmitter | ND-5105-RX Receiver |
Input | RJ-45 | BNC , 75ohm |
Output | BNC, 75 ohm | RJ-45 |
Ethernet port | RJ-45 | |
Max data | 100M | |
Standard | IEEE 802.3 10BaseT, 802.3u 100BaseTX,802.3u 100BaseFX | |
Compliance | TCP/IP , Auto-learning MDI/MDIX, Auto-sense Half or full duplex | |
Output--CVBS | BNC , 75ohm | |
Max distance (Coax cable ) | 400M——92Mbps; 1000M——74Mbps; 50Mbps (twisted pair) , 40Mbps (Telephone line) 2000M——30Mbps |
|
Work temperature | -40 ℃~+85 ℃ | |
Relative humidity | 0~95% (no cond) | |
Storage temperature | -60℃~+100℃ | |
Power consumption | 5W(Input:DC12V 400mA) | |
Size | 98x 65x28 mm | |
Power supply | AC85-260V/50Hz/60Hz. DC12V,2.1A |
Layout

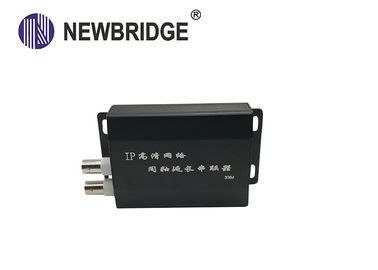

Top views:

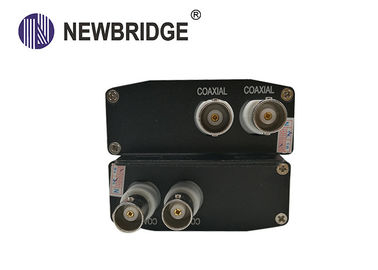

Left panel of transmitter
Rift panel of transmitter
Typical application :
Order Information
Part No | Description of product | Unit |
ND-5105-TX | transmitter | 1pcs |
ND-5105-RX | Receiver | 1pcs |
