| Place of Origin: | SHENZHEN,CHINA |
| Brand Name: | NEWBRIDGE |
| Certification: | FCC,CE |
| Model Number: | ND-E1 SM/FC |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | packing can be done by customer's requested, usually used in carton |
| Delivery Time: | According to the quantiy and stocking , 3-4 working days after payment |
| Payment Terms: | T/T , Western Union |
| Supply Ability: | According to the different products , the monthly output is different |
| Size: | 227× 147 ×42mm | Humidity: | 5-90% |
|---|---|---|---|
| Power Supply: | DC5V 1A | Operating Temperature: | 0° C ~ 50°C |
| Storage Temperature: | -40℃—70℃ | Distance: | 20km |

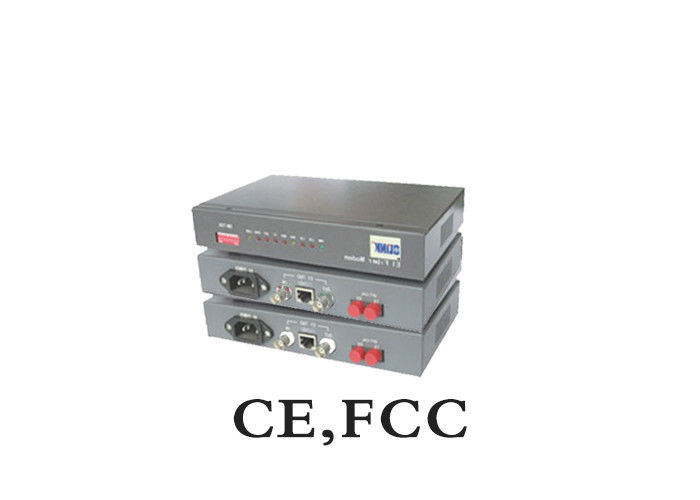

E1 fiber modem SM 1310nm FC 20KM G7.03 G7.04 G8.23 Standard , Rack Mount Media Converter
◆ Transparent transfer E1 to Ethernet interface
◆ Have 2 loop back functions: E1 local loop, E1 external loop
◆ E1 interface compatible with ITU-T G.703,G.704,and G.823.
◆ Support E1 channel hot plug, and auto detect available E1 channels not pause the transmission
◆ E1 Support 75Ω/unbalance impedance or 120Ω/balance
◆ 10M/100M Ethernet, full/half duplex self adapt, support VLAN
◆ Ethernet support AUTO-MDIX
◆ Support Dynamic Ethernet MAC address(4096), having local address filter
Feature
Specification
Order info
| Part No | Description of product |
| ND - E1 SM/FC | E1 fiber modem, SM ,1310nm, FC, 20KM |
