| Place of Origin: | SHENZHEN,CHINA |
| Brand Name: | NEWBRIDGE |
| Certification: | FCC,CE |
| Model Number: | ND-816-1 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | packing can be done by customer's requested, usually used in carton |
| Delivery Time: | According to the quantiy and stocking , 3-4 working days after payment |
| Payment Terms: | T/T , Western Union |
| Supply Ability: | According to the different products , the monthly output is different |
| Slots Insert: | 16 Slots | Power Output: | DC +5V |
|---|---|---|---|
| Power Input: | AC100 ~ 260V, 50~60Hz; Or DC48V | Warranty: | 3 Years |
| OEM,ODM: | Support |

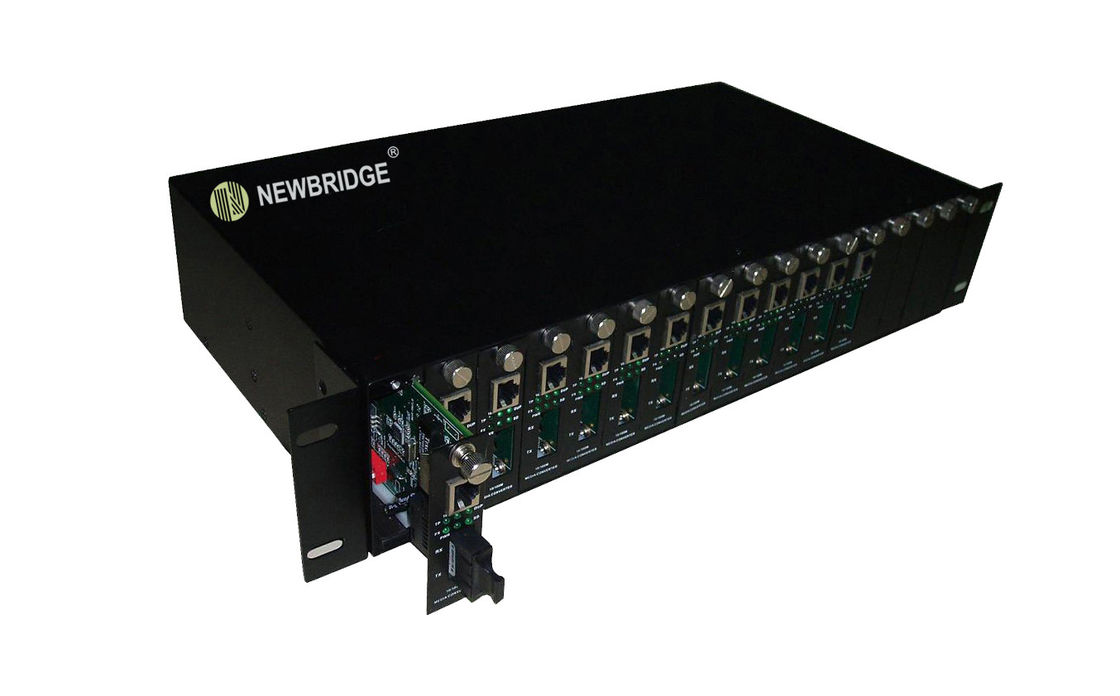

2U 16 Slots Rack mount Chassis Rack Mount Media Converter
Overview
The NF-1600D 19 inch media converter rack mount chassis is designed to supply 16 slots of various types of
media converter modules at a central location for multiple segments cross connection. Users can transparently
link backbone equipment such as switches, routers to LAN work group segments. Installation is easy, simply slide module into the chassis. All of the modules are hot swappable, thus eliminating costly network downtime. In addition to the internal power supply, a back up supply is available as an optional extra.
Features
♦2U 16 Slots Rack mount,
♦19inch standard
♦can put in 16pcs cards
♦one power supply
Specification
| Parameter | Specifications |
| Number of slots | 16 |
| Structure | 2U rack |
| Power input | AC Voltage: AC 85~265V; frequency: 50/60 Hz |
| DC voltage: DC -36~72V | |
| Power output | DC5V 16A |
| Power configuration | Single power supply, or dual power supply for warm backup mode |
| LED indication | POWER (power supply) |
| Max power consumption | 95W |
| Operating temperature | -10~55iC |
| Operating humidity | 5%~90% |
| Maintaining temperature | -40~70iC |
| Maintaining humidity | 5% ~ 90% non-condensing |
Order Information
| Part No | Description of product | Unit |
| ND-816-1 | 2U-16 Rack Mount |
