| Place of Origin: | SHENZHEN,CHINA |
| Brand Name: | NEWBRIDGE |
| Certification: | FCC,CE |
| Model Number: | ND-R1600D |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | packing can be done by customer's requested, usually used in carton |
| Delivery Time: | According to the quantiy and stocking , 3-4 working days after payment |
| Payment Terms: | T/T , Western Union |
| Supply Ability: | According to the different products , the monthly output is different |
| Slots Insert:: | 16 Slots | Power Output:: | DC 5V 12A |
|---|---|---|---|
| Power Input:: | AC100 ~ 260V, 50~60Hz; Or DC48V | Warranty: | 3 Years |
| Storage Temp: | -20 °C To +80 °C | Size: | 485* 352*90mm |

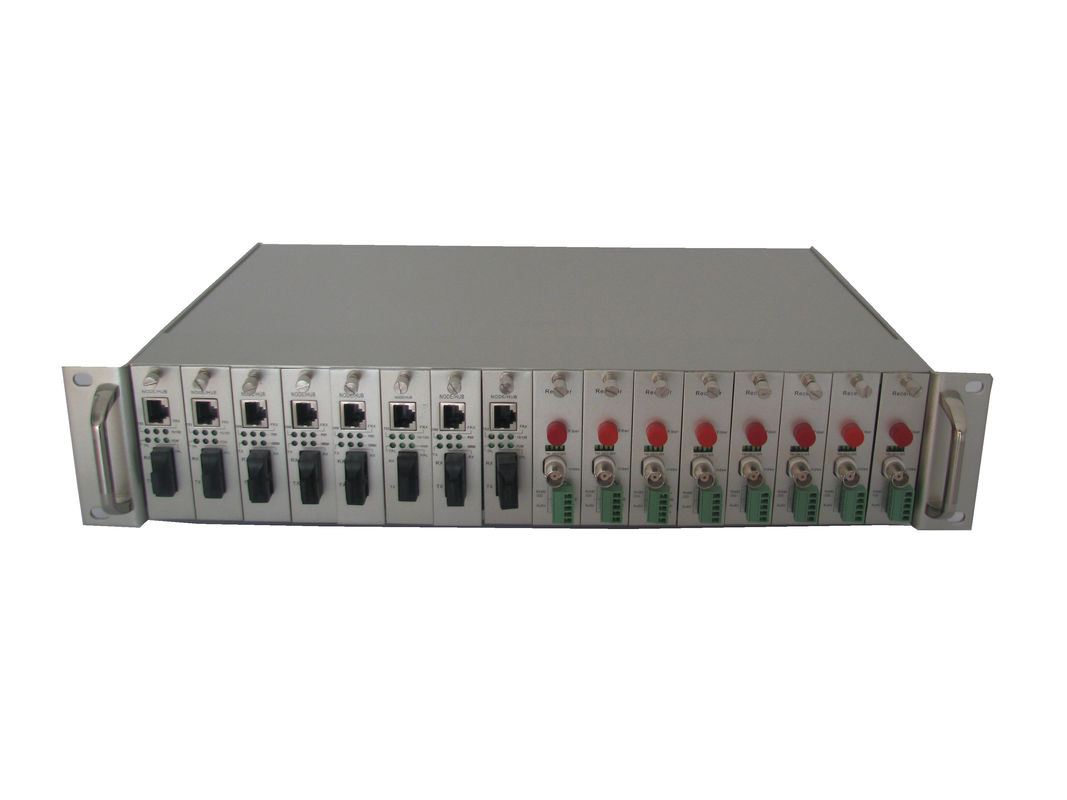

19 - Inch Standard 2U 16-Slot Single Power Rack Mount,Rack Mount Media Converter
Overview
The NF-1600D 19 inch media converter rack mount chassis is designed to supply 16 slots of various types of
media converter modules at a central location for multiple segments cross connection. Users can transparently
link backbone equipment such as switches, routers to LAN work group segments. Installation is easy, simply slide module into the chassis. All of the modules are hot swappable, thus eliminating costly network downtime. In addition to the internal power supply, a back up supply is available as an optional extra.
Features
1. 19’ 2U rack, easy for focus management
2. 16 slots for media converter module
3. dual /single fiber with bi-direction optional
4. Auto-identify MDI/MDIX
5. Full/half duplex auto negotiation
6. Low power loss and good heat dissipation
7. Stable performance, large capacity of power supply,ease for management and maintenance
Technical Parameters
| Shell Material | Aluminum Alloy |
| Capacity | 16 slots |
| Power |
Input: AC 100 ~ 260V, 50~60HZ Output: DC 5V 12A |
| Power protection | protection from over voltage, over current and short circuit |
| Operating Temp | 0 °C to +70°C |
| Storage Temp | -20 °C to +80 °C |
| Relative Humidity | 5%~95% ( no condensing ) |
| Dimensions | 485mm* 352mm*90mm |
Order Information
| Model No. | Description |
| ND-R1600D | 19",2U,16-Slot,Single Power,Rack Mount |
