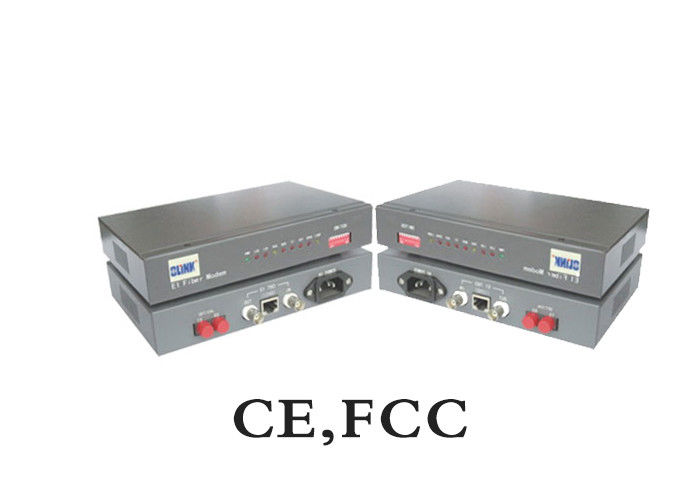

G8.23 Standard MM To Rack Unit Converter E1 Fiber Modem 850nm SC 2km

G8.23 Standard MM To Rack Unit Converter E1 Fiber Modem 850nm SC 2km

G8.23 Standard MM To Rack Unit Converter E1 Fiber Modem 850nm SC 2km

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	NEWBRIDGE
Certification:	FCC,CE
Model Number:	ND - E1 MM/SC

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiation
Packaging Details:	packing can be done by customer's requested, usually used in carton
Delivery Time:	According to the quantiy and stocking , 3-4 working days after payment
Payment Terms:	T/T , Western Union
Supply Ability:	According to the different products , the monthly output is different

Contact Now

Detailed Product Description

Size:	227× 147 ×42mm	Humidity:	5-90%
Power Supply:	DC5V 1A	Standard:	G7.03,G7.04,G8.23
Storage Temperature:	-40℃—70℃	Distance:	2km

E1 fiber modem MM 850nm SC 2KM G8.23 Standard Converter , Rack Mount Media Converter

◆ Transparent transfer E1 to Ethernet interface

◆ Have 2 loop back functions: E1 local loop, E1 external loop

◆ E1 interface compatible with ITU-T G.703,G.704,and G.823.

◆ Support E1 channel hot plug, and auto detect available E1 channels not pause the transmission

◆ E1 Support 75Ω/unbalance impedance or 120Ω/balance

◆ 10M/100M Ethernet, full/half duplex self adapt, support VLAN

◆ Ethernet support AUTO-MDIX

◆ Support Dynamic Ethernet MAC address(4096), having local address filter

Feature

◆ Transparent transfer E1 to Ethernet interface

◆ Have 2 loop back functions: E1 local loop, E1 external loop

◆ E1 interface compatible with ITU-T G.703,G.704,and G.823.

◆ Support E1 channel hot plug, and auto detect available E1 channels not pause the transmission

◆ E1 Support 75Ω/unbalance impedance or 120Ω/balance

◆ 10M/100M Ethernet, full/half duplex self adapt, support VLAN

◆ Ethernet support AUTO-MDIX

◆ Support Dynamic Ethernet MAC address(4096), having local address filter function

Specification

>> E1 (G.703) Interface:

Connector: 2 BNC (75 ohm, unblance)

1RJ45(120 ohm, blance)

Encoding: HDB3

Rate:2.048M bps ±50ppm

Jitter Tolerance: comply with G.823

>> Optical interface:

Connector :SC/FC

Rate:10/100 auto-negotiation

Optical code:CMI

Wavelength:1300nm for multi-mode fiber

1310nm for single-mode fiber

Working Temperature:0—50℃

Storage Temperature: -40℃—70℃

Humidity: 5-90%(non-condensing)

EMI : Comply with FCC part 15 Class A and CE mark

Power supply: AC 100V--260V 50-60Hz, DC 5V,1A

Size: 227× 147 ×42mm (External power supply)

Order info

Part No	Description of product
ND - E1 MM/SC	E1 fiber modem, MM , 850 nm, SC, 2KM
