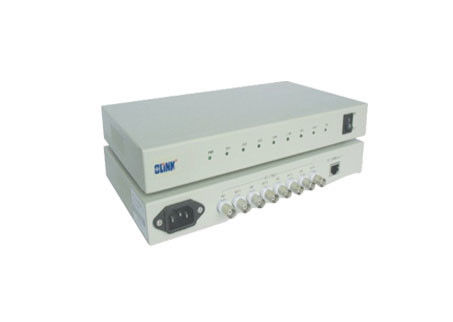

ITU-T G.703 Standard Managed Ethernet Switch 4E1 To LAN Protocol Converter BNC 75Ω

ITU-T G.703 Standard Managed Ethernet Switch 4E1 To LAN Protocol Converter BNC 75Ω

ITU-T G.703 Standard Managed Ethernet Switch 4E1 To LAN Protocol Converter BNC 75Ω

Product Details:

Place of Origin: SHENZHEN,CHINA
Brand Name: NEWBRIDGE
Certification: FCC,CE
Model Number: ND-CON02T

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: packing can be done by customer's requested, usually used in carton
Delivery Time: According to the quantiy and stocking , 3-4 working days after payment
Payment Terms: T/T , Western Union
Supply Ability: According to the different products , the monthly output is different
Contact Now
Detailed Product Description
Impedance: 75Ω Connector: BNC (75Ω), RJ45 (120Ω)
Power Supply: AC 100V~240V Operating Temperature: 0° C ~ 50°C
Storage Temperature: - 40° C ~ 75°C Standard: G.703

4E1 to LAN Protocol Converter BNC (75Ω), RJ45 (120Ω) ITU-T G.703 standard , Managed POE Switch



Feature

◆ Provides conversion from 1--4 E1 channels to 10/100Base-T Ethernet interface
◆ Ethernet transmit transparent through 1-4 E1 channels
◆ Ethernet interface supports half/full duplex auto negotiation, support VLAN
◆ 4 E1 can have 10 ms transmission delay, auto stop transmission when the delay above the limitation
◆ Support flexible setting of 1 to 4 E1 channels, auto detect the number of E1 channels and time-delay, select available E1 channels when reset
◆ Have pseudo random code test function, easy for the installation and maintenance
◆ Have Ethernet monitor self-reset function





Specification

>> E1 interface
Standard: E1 interface compatible with G.703 standard.
Coding: HDB3
Impedance: 75Ω (unbalance), 120Ω (balance)
Connector: BNC (75Ω), RJ45 (120Ω)
Jitter Performance: According to G.742 and G.823
Clock: internal clock, line clock.

>> 10M/100M Base-T
Interface Rate 10/100Mbps
MAC address capability 4096
Interface character match IEEE802.3, IEEE802.1Q (VLAN)

Power Supply :AC 100V -240V 50-60HZ ,DC 5V,1A
Operating Temperature: 0° C to + 50°C
Storage Temperature: - 40° C to + 75°C
Humidity: 5%-95% Non-Condensing





Order info

Part No Description of product
ND-CON02T 4E1 to LAN protocol converter
