| Place of Origin: | SHENZHEN,CHINA |
| Brand Name: | NEWBRIDGE |
| Certification: | FCC,CE |
| Model Number: | ND-X920-8FX8TX-SFP |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | packing can be done by customer's requested, usually used in carton |
| Delivery Time: | According to the quantiy and stocking , 3-4 working days after payment |
| Payment Terms: | T/T , Western Union |
| Supply Ability: | 3000pcs per month |
| Input Power: | 12~48V DC (Terminal Block) | Shell: | IP40 Protect Grade, Metal Shell |
|---|---|---|---|
| Installation: | DIN-Rail Or Wall Mounts | Working Temperature: | -40～+85℃ |
| Dimension (L×W×H): | 157mm× 120mm× 48mm | Product Weight: | 0.7kg |
| Interface: | 8x10/100/1000Base-T Ethernet Port + 8x 1000Mbps SFP Slot |
1. Overview

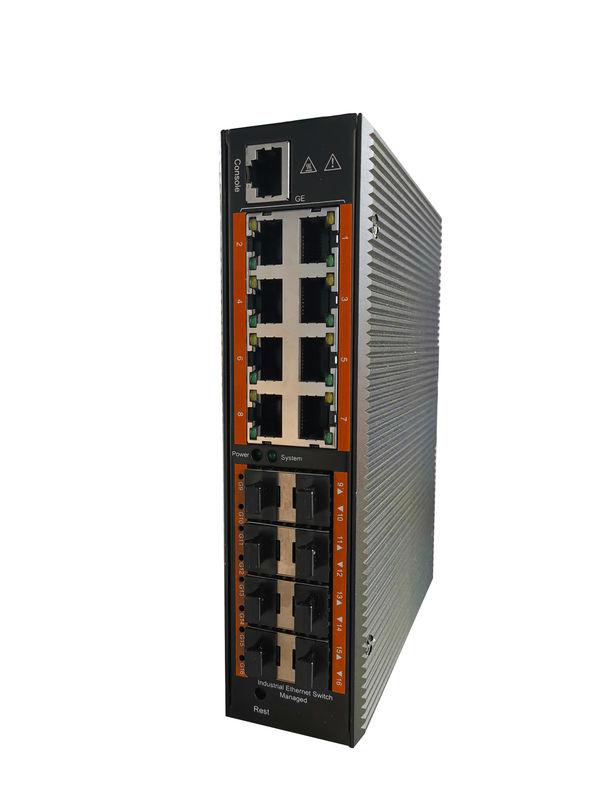

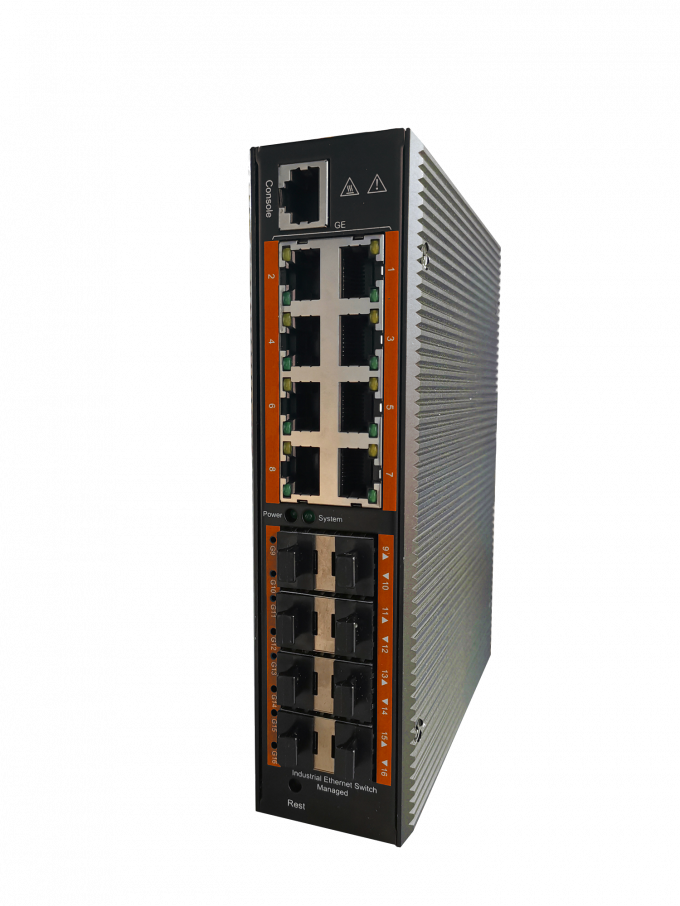

Newbridge® ND-X920-8FX8TX-SFP Industrial Fiber Switches, 8 Port 10/100/1000 Ethernet ports and 8 port 1000Mbps SFP slot, for connecting with devices like computer, switch, hub, server, etc, as well as powering network camera, industrial VoIP phone, wireless AP and other devices.
Specially designed for harsh outdoor applications. Its 6KV network port surge protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted PoE system. Power input also chooses industry-standard types of power
2. Features
|
ND-X920-8FX8TX-SFP |
l 8 Port 10/100/1000Mbps Ethernet , 8 port 1000Mbps SFPslot l Automatic MAC address learning and aging l 10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X l LED indicators for monitoring power/link/activity l Supports 10/100/1000Mbps-Full/Half-duplex l Supports Wall-mount and DIN-Rail installation for lightning protection l Supports Daisy-Chain connection l Supports Broadcast Storm Control l Transmission data max. Support:1518 bytes l Super lightening protection, IP40 protection. l Excellent heat elimination without cooling fan. l Redundant dual DC power inputs. l Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City. l Harsh industrial environment or higher requirement l -40℃-85℃ operating temperature range. l 3-Year Warranty
|
3. Specifications
|
Product Name |
8 Port 10/100/1000M Industrial Ethernet Switch |
| Product Model | ND-X920-8FX8TX-SFP |
| Interface | 8x10/100/1000Base-T Ethernet port + 8x 1000Mbps SFP Slot |
|
Network Protocols |
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; |
|
Network Media |
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter) |
|
Fiber Media |
Multi-mode: 2KM Single-mode: 20/40/60/80KM Interface:8*SFP |
|
Performance Specification |
Bandwidth: 32Gbps Packet Buffer Memory:2M 10 Mbps Packet Forwarding Rate:14880 pps/port 100Mbps Packet Forwarfding Rate:148800 pps/port 1000Mbps Packet Forwarding Rate:1488000pps/port MAC Address Table: 16K Switching delay: <3us |
| Forwarding Mode | Store-and-Forward |
| Protection | 6KV Lightening protection, IP40 protection |
| LED Indicators | Power: PWR; Link; Link/Act |
|
Power Supply |
Input Power: 12~48VDC (Terminal Block) Input Power:2* 12~48VDC(Dual power redundancy backup) Power Consumption : <5W Connectors : Phoenix terminal Overload protection :20A Reverse polarity protection : 30s Alarm contact : No |
| Other Specifications | |
|
Working Environment |
Working temperature: -40～85℃ ; Storage temperature: -45～85℃ Relative Humidity: 5%~95 %( no condensation) |
|
Industry Standard |
FCC CFR47 Part 15,EN55022/CISPR22, Class A EMS: IEC61000-4-2 (ESD): ±8kV (contact), ±15kV (air) IEC61000-4-3 (RS): 10V/m (80MHz-2GHz) IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s) IEC (EN) 61000-4-8:support IEC 60068-2-27(Shock):support IEC 60068-2-32(Freefall):support IEC 60068-2-6(Vibration):support |
| Shell | IP40 protect grade, metal shell |
| Installation | DIN-Rail or Wall mounts |
|
Packing List |
1×Industrial Ethernet Switch (plus terminal block) 1×User Manual/Certificate of quality/Warranty card 1×DIN-Rail mounting kit |
|
Certification |
CE mark, commercial; FCC Part 15 Class B; VCCI Class B EN 55022 (CISPR 22), Class B |
| MTBF | 300,000 hours |
|
Weight & Size |
Product Weight: 0.7 KG Product size (L×W×H): 157mm× 120mm× 48mm |
| Warranty | 3-years |
4. Order Information
| Part No | Description of product | Unit |
| ND-X920-8FX8TX-SFP | 8*1000Mbps SFP slot 8*10/100/1000 Base-Tx Non-managed Fiber Switches ,Industrial , aluminum alloy, DIN Rail, DC12~48V power supply ,Wide temperature (-40°C-85°C),CE-FCC-RoHs - DC power supply is not included by default. | pc |
