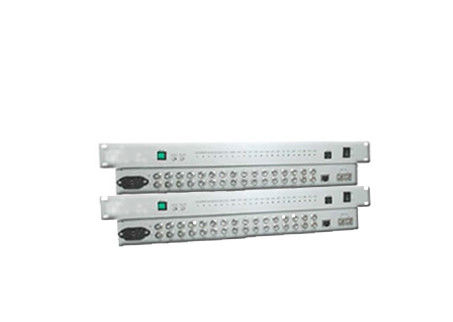

16 E1 PDH Multiplexer Managed POE Switch , Managed Switch Supporting PoE

16 E1 PDH Multiplexer Managed POE Switch , Managed Switch Supporting PoE

16 E1 PDH Multiplexer Managed POE Switch , Managed Switch Supporting PoE

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	NEWBRIDGE
Certification:	FCC,CE
Model Number:	ND-480-LH-F24

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiation
Packaging Details:	packing can be done by customer's requested, usually used in carton
Delivery Time:	According to the quantiy and stocking , 3-4 working days after payment
Payment Terms:	T/T , Western Union
Supply Ability:	According to the different products , the monthly output is different

Contact Now

Detailed Product Description

Size:	482×200×45mm	Distance:	60km
Power Supply:	DC+24V	Operating Temperature:	0° C ~ 50°C
Port:	FC	Standard:	G.703/G.823/G.742

16 E1 PDH Multiplexer FC DC+24V 60KM G.703 Standard , Managed POE Switch

Feature

◆ Multiplex 16E1 into one fiber channel to transmit

◆ Offer 1 optional 10/100Mbps Ethernet channel

◆ RS232 asynchronous interface, for management

◆ Complete alarm function and state indicator

◆ Support the local/remote E1 loop back

◆ E1 Line code: HDB3, compliant to G.703, G.823 and G.742

◆ E1 channel support both 75ohm & 120ohm impedance

Specification

>> E1 Port

Port number: 16

Bit rate: 2.048Mbps (+/-100ppm)

Impedance: 75ohm or 120ohm

Line Code: HDB3, compliant with ITU-T G.703

>> OPtical Port

Bit rate: 150Mb/s+/-50ppm

Wavelength: 1310nm, 1550nm

Connector: FC/SC

>> power supply

Input voltage:When -48V, -40V ～ -60V (DC) is allowed

When ~220V, 175V ～ ~264V (AC) is allowed.

Power Consumption :less than 15 watts

Operating Temperature: 0° C to + 50°C

Storage Temperature: - 40° C to + 75°C

Humidity: 5%-95% Non-Condensing

Size: 482×200×45mm

Order info

Part No	Description of product
ND-480-LH-F24	16 E1 PDH Multiplexer,FC,DC+24V, 60KM
