IP40 Protect Grade Managed PoE Switch 6 Port Metal Shell 12~48V DC Terminal Block

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	NEWBRIDGE
Certification:	FCC,CE
Model Number:	ND-X820M-2FX6TX

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiation
Packaging Details:	packing can be done by customer's requested, usually used in carton
Delivery Time:	According to the quantiy and stocking , 3-4 working days after payment
Payment Terms:	T/T , Western Union
Supply Ability:	3000pcs per month

Contact Now

Detailed Product Description

Input Power:	12~48V DC (Terminal Block)	Shell:	IP40 Protect Grade, Metal Shell
Installation:	DIN-Rail Or Wall Mounts	Working Temperature:	-40～+85℃
Dimension (L×W×H):	170mm× 160mm× 50mm	Product Weight:	0.9kg
Interface:	6 Port 10/100Mbps Ethernet Port + 2 100M SC Port

6 Port managed Industrial POE Ethernet Switch 6 PoE+ 2 SC Ports

1. Overview

Newbridge® ND-X820M-2FX6TX-SC Industrial Fiber switches, 8 Port 10/100Mbps Ethernet ports and 2 port 100Mbps SC Port, it uses store-forward architecture, fanless and energy-saving design. The advantage of product are small, convenient and easy to maintain. The product design complies with the Ethernet standard, adding lightning protection, anti-static protection measures. It applies to the wide range of operating temperature from -40℃ ~ +85℃ with stable and reliable performance. The device can be widely applied to various broadband data transmission fields such as intelligent transportation, telecommunications, security, financial securities, customs, shipping, power, water conservancy and oil fields.

2. Features

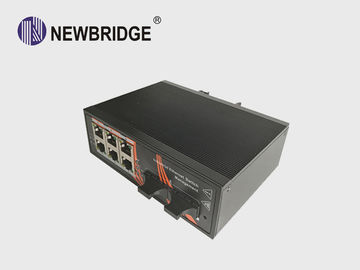

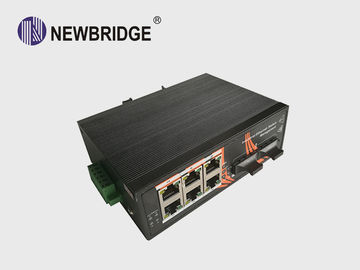

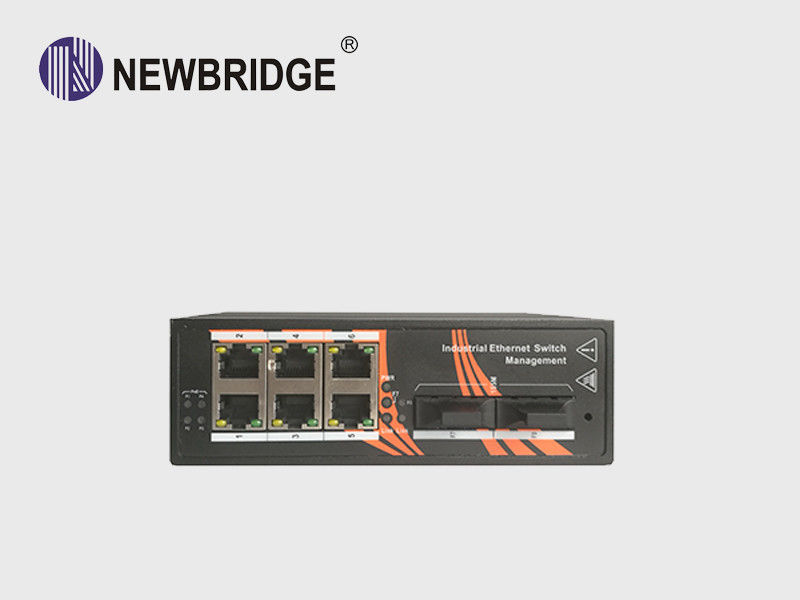

IP40 Protect Grade Managed PoE Switch 6 Port Metal Shell 12~48V DC Terminal Block

ND-X820M-2FX6TX-SC

l 8 Port 10/100Mbps Ethernet port + 2 100M SC port

l Automatic MAC address learning and aging

l Automatically support IGMP (Multicasting)

l 10/100Mbps Auto-negotiation , auto-MDI-MDI-X, Full/Half-duplex

l LED indicators for monitoring power/link/activity

l Supports Wall Mounting and DIN-Rail installation

l Supports Daisy-Chain connection

l Supports Broadcast Storm Control

l Supports G.8032 Ring protection

l Supports QoS and ensuring the transmission of VoIP packets;

l Supports IPv4

l Super lightening protection, IP40 protection.

l Excellent heat elimination without cooling fan.

l Redundant dual DC power inputs.

l Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.

l Harsh industrial environment or higher requirement

l 6KV port Lightning protection

l -40℃~+85℃ operating temperature range.

3. Specifications

Product Name	6 Port 10/100M Managed Industrial Fiber Switches
Product Model	ND-X820M-2FX6TX-SC
Interface	6x 10/100Base-T Ethernet port + 2x 100M SC port + 1 Console port
Network Protocols	IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x
Network Media	10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter)
Fiber Media	Multi-mode: 2KM Single-mode: 20/40/60/80KM Interface:2*SC
Performance Specification	Bandwidth: 1.6Gbps Packet Buffer Memory:2Mbits 10 Mbps Packet Forwarding Rate:14880 pps/port 100Mbps Packet Forwarfding Rate:148800 pps/port MAC Address Table: 8K Forwarding Delay: <4us
Forwarding Mode	Store-and-Forward
Protection	6KV Lightening protection, IP40 protection
LED Indicators	Power: PWR; Link; Link/Act
Power Supply	Input Power: 12~48VDC (Terminal Block) Input Power:2* 12~48VDC(Dual power redundancy backup) Working Consumption : <5W Connectors : Phoenix terminal Overload protection :20A Reverse polarity protection : 120s Alarm contact : No

Layer 2 Switching
Spanning Tree Protocol (STP)	Standard Spanning Tree (STP) 802.1d Rapid Spanning Tree (RSTP) 802.1w Multiple Spanning Tree (MSTP) 802.1s
G.8032 ERPS	<20ms ring protection for industrial high reliable application
Aggregation	Link Aggregation Control Protocol (LACP) IEEE 802.3ad; Up to 7 groups ; Up to 14 ports per group
VLAN	Support up to 4K VLANs simultaneously (out of 4096 VLAN IDs) ; Port-based VLAN; IEEE 802.1Q tag-based VLAN
IGMP v1/v2 snooping	IGMP limits bandwidth-intensive multicast traffic to only the requesters; Supports 256 multicast groups
GMRP	supports GARP multicast registration protocol
MAC	Locks MAC Addresses to ports; Learned MAC address limiting;
QOS	Based on 802.1p (COS) classification; Based on DSCP classification Based on the source IP, destination IP, port number classification Support SP, WRR, DRR scheduling strategy; Support traffic speed limit CAR
MPLS	MPLS supports static LSP Support VPN MPLS
Routing Protocols	IPv4 software static routing IPv6 software static routing
LLDP	supports LLDP link discovery protocol
System management	User add / delete user; User login, operation, status, event log Device reset, configuration save/restore, upgrade management, time setting
Security
Secure Shell (SSH) Protocol	SSH secures Telnet traffic in or out the switch, SSH v1 and v2 are supported
Secure Sockets Layer (SSL), HTTPS	SSL encrypts the http traffic, allowing advance secure access to the browser- based management GUI in the switch
Port Security	Locks MAC Addresses to ports, and limits learned MAC addresses
DHCP Snooping	Prevent unauthorized configuration and use of IP addresses, while providing support for IP Source Guard and ARP detection
ACLs	Support for up to 256 entries; Drop or rate limitation based on source and destination MAC, VLAN ID or IP address, protocol, port, differentiated services code point (DSCP) / IP precedence, TCP/ UDP source and destination ports, 802.1p priority, Ethernet type, Internet Control Message Protocol (ICMP) packets, IGMP packets, TCP flag
IP Source Guard	Prevents datagram with spoofed addresses from being in the network
ARP Inspection	Prevent ARP spoofing attacks and ARP
Storm control	Prevents traffic on a LAN from being disrupted by a broadcast, multicast,or unicast storm on a port

Management (Web/ SSL, SSH, ping, Trivial File Transfer Protocol (TFTP), SNMP, Syslog)
Web GUI interface	Built-in switch configuration utility for browser-based device configuration (HTTP/ HTTPs). Supports configuration, system dashboard, maintenance, and monitoring
Dual Image	Dual image provides independent primary and secondary OS files for backup while upgrading
Firmware upgrade	Web browser upgrade (HTTP/ HTTPs) and TFTP; Upgrade through console port
Port mirroring	Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported.
Other management	Single IP management; HTTP/HTTPs; SSH; RADIUS; DHCP Client; SNTP; cable diagnostics; ping; syslog; Telnet client (SSH secure support)
Other Specifications
Working Environment	Working temperature: -40～+85℃ ; Storage temperature: -40～+85℃ Relative Humidity: 5%~95 %( no condensation)
Industry Standard	FCC CFR47 Part 15,EN55022/CISPR22, Class A EMS: IEC61000-4-2 (ESD): ±8kV (contact), ±15kV (air) IEC61000-4-3 (RS): 10V/m (80MHz-2GHz) IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5 (Surge): Power Port: ±4kV/DM, ±6kV/CM; Data Port: ±4kV IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s) IEC (EN) 61000-4-8:support IEC 60068-2-27(Shock):support IEC 60068-2-32(Freefall):support IEC 60068-2-6(Vibration):support
Shell	IP40 protect grade, metal shell
Installation	DIN-Rail or Wall mounts
Packing List	1×Industrial PoE Switch (plus terminal block) 1×User Manual/Certificate of quality/Warranty card 1×DIN-Rail mounting kit
Certification	CE mark, commercial; FCC Part 15 Class B; VCCI Class B EN 55022 (CISPR 22), Class B
MTBF	300,000 hours
Weight & Size	Product Weight: 0.9 KG Product size (L×W×H): 170mm× 160mm× 50mm
Warranty	3-years

4. Order Information

Part No	Description of product	Unit
ND-X820M-2FX6TX-SC	2100Base-FX,610/100 Base-Tx Managed Fiber Switch ,SC port,Industrial , aluminum alloy, DIN Rail, DC12~48V power supply ,Wide temperature (-40°C-85°C) ,support WEB management/SNMP/VLAN .DC power supply is not included by default.	pc
