4A B Building Zhuao Industrial Park Gushu Xixiang Baoan District Shenzhen,China,518126 | info@newbridge.com.cn |
Place of Origin: | SHENZHEN,CHINA |
Brand Name: | NEWBRIDGE |
Certification: | FCC,CE |
Model Number: | ND-X920-08TX |
Minimum Order Quantity: | 1PC |
---|---|
Price: | Negotiation |
Packaging Details: | packing can be done by customer's requested, usually used in carton |
Delivery Time: | According to the quantiy and stocking , 3-4 working days after payment |
Payment Terms: | T/T , Western Union |
Supply Ability: | 3000pcs per month |
Input Power: | 12~48V DC (Terminal Block) | Shell: | IP40 Protect Grade, Metal Shell |
---|---|---|---|
Installation: | DIN-Rail Or Wall Mounts | Working Temperature: | -40~+85℃ |
Dimension (L×W×H): | 143mm× 101mm× 44mm | Product Weight: | 0.65kg |
Interface: | 8x10/100/1000Base-T Ethernet Port |

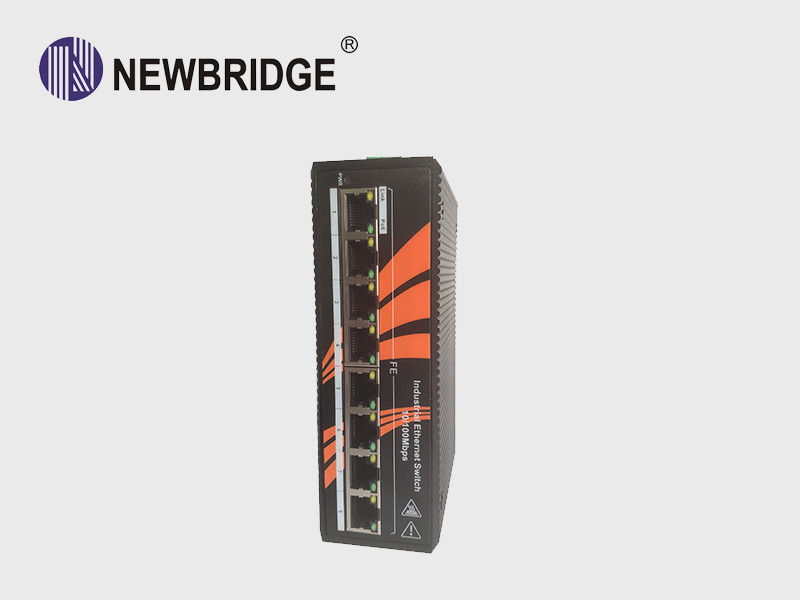

unmanaged 8 Port Aluminum alloy 10/100/1000M Gigabit Ethernet Industrial Switch
1. Overview
Newbridge® ND-X920-08TX Industrial Ethernet Switches, 8 Port 10/100/1000Mbps Ethernet ports ,for connecting with devices like computer, switch, hub, server, etc, as well as powering network camera, industrial VoIP phone, wireless AP and other devices.
Specially designed for harsh outdoor applications. Its 6KV network port surge protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted PoE system. Power input also chooses industry-standard types of power
2. Features
ND-X920-08TX |
l 8 Port 10/100/1000Mbps Ethernet RJ45 , l Automatic MAC address learning and aging l 10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X l LED indicators for monitoring power/link/activity l Supports 10/100/1000Mbps-Full/Half-duplex l Supports Wall-mount,DIN-Rail installation l Supports Daisy-Chain connection l Supports Broadcast Storm Control l Supports Relay output for power failure l Transmission Packet max. Support:1518 bytes l Super lightning protection, IP40 protection. l Excellent heat elimination without cooling fan. l Redundant dual DC power inputs. l Harsh industrial environment or higher requirement l -40℃-85℃ operating temperature range. l 3-Year Warranty
|
3. Specifications
Product Name | 8 Port 10/100/1000Base-TX Industrial Ethernet Switches |
Product Model | ND-X920-08TX |
Interface | 8x10/100/1000Base-T Ethernet port |
Network Protocols |
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; |
Network Media |
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter) |
Performance Specification |
Bandwidth: 16Gbps Packet Buffer Memory:2M 10 Mbps Packet Forwarding Rate:14880 pps/port 100Mbps Packet Forwarfding Rate:148800 pps/port 1000Mbps Packet Forwarding Rate:1488000pps/port MAC Address Table: 4K |
Forwarding Mode | Store-and-Forward |
Protection | Lightning protection, IP40 protection |
LED Indicators | Power: PWR; Link; Link/Act |
Power Supply |
Input Power: 12~48VDC (Terminal Block) Input Power:2* 12~48VDC(Dual power redundancy backup) Power Consumption : <5W Connectors : Phoenix terminal Overload protection :20A Reverse polarity protection : 30s Alarm contact : No |
4. Order Information
Part No | Description of product | Unit |
ND-X920-08TX | 8*10/100/1000 Base-Tx Non-managed Switches ,Industrial , aluminum alloy, DIN Rail, DC12~48V power supply ,Wide temperature (-40℃-85℃),CE-FCC-RoHs - DC power supply is not included by default. | pc |
