4A B Building Zhuao Industrial Park Gushu Xixiang Baoan District Shenzhen,China,518126 | info@newbridge.com.cn |
Place of Origin: | SHENZHEN,CHINA |
Brand Name: | NEWBRIDGE |
Certification: | FCC,CE |
Model Number: | ND-20GDF-BD |
Minimum Order Quantity: | 1PC |
---|---|
Price: | Negotiation |
Packaging Details: | packing can be done by customer's requested, usually used in carton |
Delivery Time: | According to the quantiy and stocking , 3-4 working days after payment |
Payment Terms: | T/T , Western Union |
Supply Ability: | According to the different products , the monthly output is different |
Brand: | NEWBRIDGE | Power Supply: | +3.3V And +5V |
---|---|---|---|
Distance: | 300m,10km,40km,80km | Connector: | LC |
Type: | 10G Dual Fiber/WDM | Data Rate: | 10G |

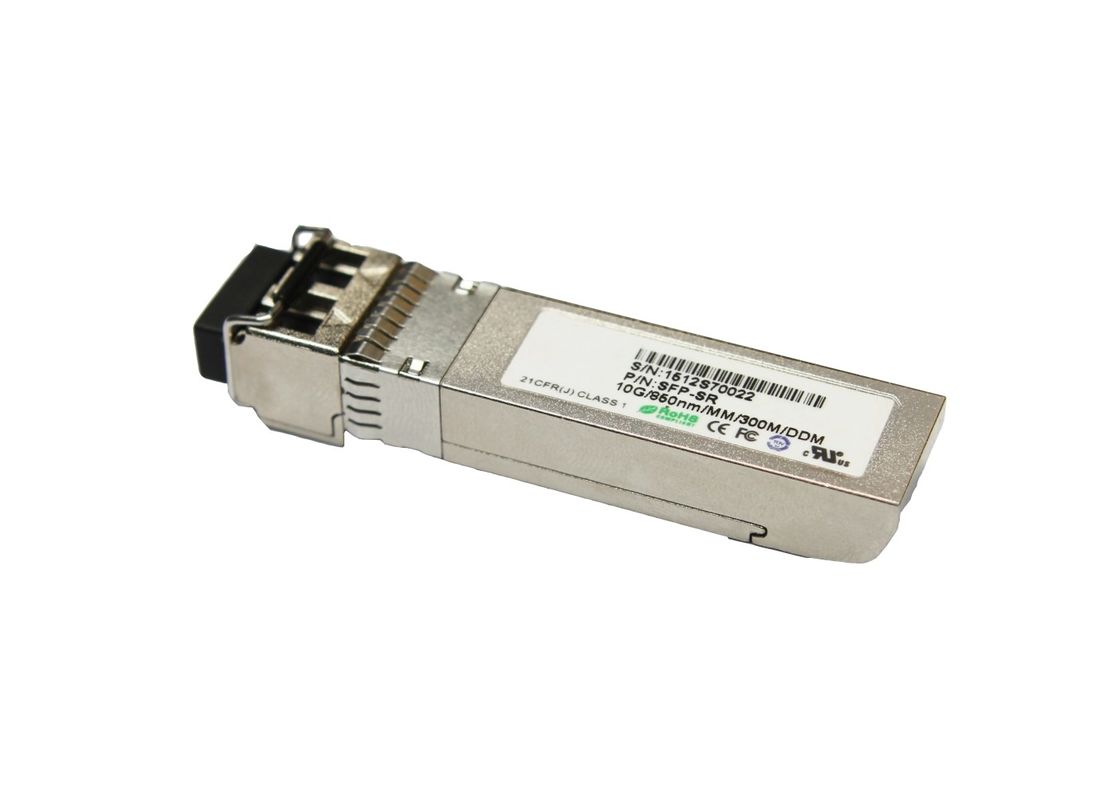

SFP Transceiver Module , SFP+-10G-SR,10G 850nm 300m DDM
Specifications
1. 80km dwdm sfp+
2. DWDM SFP+ ZR
3. CE,ROHS,FCC Certification
4. Single modules
5. 10GBASE DWDM Modules
6. COM 10G DWDM 1529.55nm SFP+-ZR LC Arista compatible SFP-10G-DZ-29.55
Features
Compliant with SFF-8413 and IEE802.3ae
Suitable for use in 100GHz channel spacing DWDM systems
Data rate selectable ≤4.25Gbps or 9.95Gbps to 10.3Gbps bit rates
Cooled EML transmitter and APD receiver
link length up to 80km
Low Power Dissipation 1.4W Typical (Maximum:2W)
-5ºC to 70ºC Operating Case Temperature
Single 3.3V power supply
Diagnostic Performance Monitoring of module temperature, supply
Voltages, laser bias current, transmit optical power, receive optical power
RoHS compliant and lead free
Applications
10G Ethernet
10G Fiber Channel (with/without FEC)
