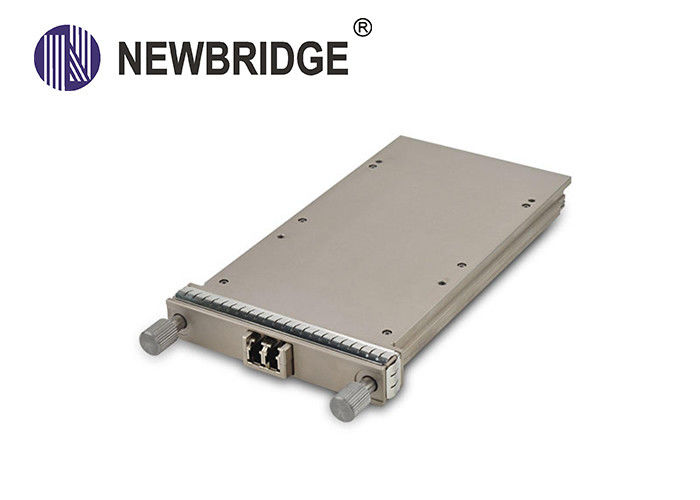

Hot Pluggable CFP Fiber Transceiver Module 103Gb/S MPO 850nm VCSEL/PIN Multimode

Hot Pluggable CFP Fiber Transceiver Module 103Gb/S MPO 850nm VCSEL/PIN Multimode

Hot Pluggable CFP Fiber Transceiver Module 103Gb/S MPO 850nm VCSEL/PIN Multimode

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	NEWBRIDGE
Certification:	FCC,CE
Model Number:	NDCP-100G-SR10

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiation
Packaging Details:	packing can be done by customer's requested, usually used in carton
Delivery Time:	According to the quantiy and stocking , 3-4 working days after payment
Payment Terms:	T/T , Western Union
Supply Ability:	According to the different products , the monthly output is different

Contact Now

Detailed Product Description

Fiber:	Single Fiber	Device Type:	Optical SFP Module
Data Rate:	100G	Operating Temperature:	0°C To 70°C
Power Supply:	+3.3V	Low Power Consumptionor:	<8W

Features

Operate at 10.3125Gbps per channel
MPO-12 receptacles
Up to 100m over OM3, 150m over OM4
850mm VCSEL array transmitter and PIN array receiver
Compliant with IEEE802.3ba 100GBASE-SR10
Support inter-operate with IEEE802.3ae 10GBASE-SR modules
Compliant with CFP MSA

^² Single 3.3V Power Supply and Power dissipation <8W

Commercial case temperature range: 0℃ to 70℃
RoHS 6 compliant

Applications

100GBE and 10GBE interconnects

Ordering Information:

Hot Pluggable CFP Fiber Transceiver Module 103Gb/S MPO 850nm VCSEL/PIN Multimode

Part Number	Data Rate	Distance	Wavelength	Laser	Fiber	DDM	Connector	Temperature

SHCP-100G-SR10	100Gb/s	150m	850nm	VCSEL/PIN	MM	Yes	MPO-12	0~ 70°C

Hot Pluggable CFP Fiber Transceiver Module 103Gb/S MPO 850nm VCSEL/PIN Multimode

Output is coupled into a 50/125μm multi-mode fiber.
Filtered, measured with a PRBS 2³¹-1 test pattern @10.3125Gbps
Minimum average optical power measured at BER less than 1E-12, with a 2³¹-1 PRBS

Regulatory Compliance

	Item		Test Method		Performance
	Electrostatic Discharge (ESD) to		MIL-STD-883C Method 3015.7		Class 1 (>1.5kV) – Human Body Model
	the Electrical Pins		MIL-STD-883C Method 3015.7		Class 1 (>1.5kV) – Human Body Model
	the Electrical Pins


	Electrostatic Discharge (ESD)		LV 4(Air discharge: 15KV;
	Electrostatic Discharge (ESD)	IEC 61000-4-2	Contact discharge: 8 KV
	Immunity	IEC 61000-4-2	Contact discharge: 8 KV
	Immunity		Performance criterion: B
			Performance criterion: B

		CISPR22 ITE Class B
	Electromagnetic Interference	FCC Class B	Compliant with standards
	(EMI)	CENELEC EN55022	Compliant with standards
	(EMI)	CENELEC EN55022
		VCCI Class 1

			Typically show no measurable effect from a 3V/m
	Immunity	IEC61000-4-3 Class 2	field swept from 80 to 1000MHz applied to the
			transceiver without a chassis enclosure.

		CDRH21-CFR 1040
	Safety	EN/IEC 60825-1	Class 1 Laser product
	Safety	EN/IEC 60825-2	Class 1 Laser product
		EN/IEC 60825-2
		EN/IEC 60950-1

		BS EN 1122: 2001
	RoHS Compliance	US EPA METHOD 3050B	Pb <1000ppm; Cr6+ <1000ppm; Hg <1000ppm
	RoHS Compliance	US EPA METHOD 3052	PBB <1000ppm; PBDE <1000ppm; Cd <100ppm
		US EPA METHOD 3052	PBB <1000ppm; PBDE <1000ppm; Cd <100ppm
		US EPA METHOD 3060A

Features

Operate at 10.3125Gbps per channel
MPO-12 receptacles
Up to 100m over OM3, 150m over OM4
850mm VCSEL array transmitter and PIN array receiver
Compliant with IEEE802.3ba 100GBASE-SR10
Support inter-operate with IEEE802.3ae 10GBASE-SR modules
Compliant with CFP MSA

^² Single 3.3V Power Supply and Power dissipation <8W

Commercial case temperature range: 0℃ to 70℃
RoHS 6 compliant

Applications Hot Pluggable CFP Fiber Transceiver Module 103Gb/S MPO 850nm VCSEL/PIN Multimode

100GBE and 10GBE interconnects

Ordering Information:

Hot Pluggable CFP Fiber Transceiver Module 103Gb/S MPO 850nm VCSEL/PIN Multimode

Part Number	Data Rate	Distance	Wavelength	Laser	Fiber	DDM	Connector	Temperature

SHCP-100G-SR10	100Gb/s	150m	850nm	VCSEL/PIN	MM	Yes	MPO-12	0~ 70°C

Hot Pluggable CFP Fiber Transceiver Module 103Gb/S MPO 850nm VCSEL/PIN Multimode
