1.25Gb/s BiDi SFP Transceiver Module Simplex LC/SC Connector RoHS Compliant

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	NEWBRIDGE
Certification:	FCC,CE
Model Number:	NDFP-GE-B20

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiation
Packaging Details:	packing can be done by customer's requested, usually used in carton
Delivery Time:	According to the quantiy and stocking , 3-4 working days after payment
Payment Terms:	T/T , Western Union
Supply Ability:	According to the different products , the monthly output is different

Contact Now

Detailed Product Description

Fiber:	Single Fiber	Device Type:	Optical SFP Module
Data Rate:	1.25G	Operating Temperature:	0°C To 70°C
Power Supply:	+3.3V	Low Power Consumptionor:	<1W

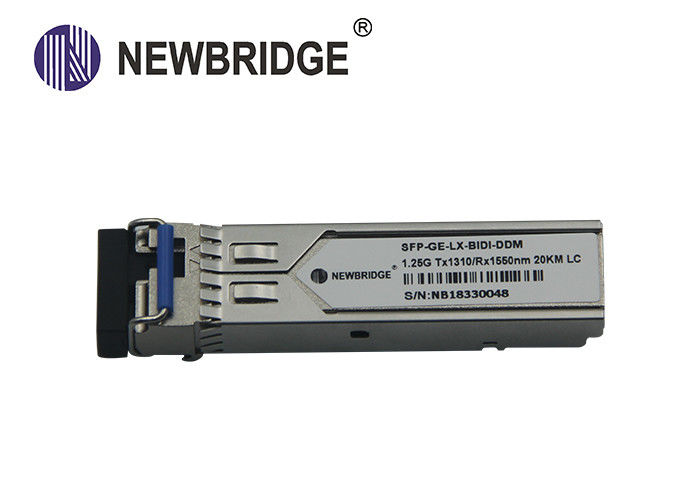

NDFP-GE-B20 high performance, cost-effective 1.25G BiDi SFP transceiver complies with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). It provides Digital diagnostics functions via a 2-wire serial interface as specified in SFF-8472. It adopts high-performance FP/DFB transmitter and high-sensitivity PIN receiver, provides up to 14dB link budge for Gigabit Ethernet applications up to 20km on a single core single mode fiber.

Features:

² Up to 1.25Gb/s Data Links

² Hot-Pluggable

² Simplex LC connector; SC optional

² 1310nm FP or 1490/1550nm DFB transmitter, PIN photo-detector

² 20km on a single core SMF

² 2-wire interface for management specifications compliant

with SFF 8472 digital diagnostic monitoring interface

² Power Supply :+3.3V

² Power consumption<1W

² Temperature Range: 0~ 70°C, -40°C to 85°C/-5°C to 85°C available

² RoHS compliant

Applications:

² 1000Base-LX Ethernet

² Metro/Access Networks

² 1G Fibre Channel

² Other Optical Links

Ordering Information:

Part Number	Data Rate	Distance	Wavelength	Laser	Fiber	DDM	Connector
SHFP-GE-B20-35	1.25Gb/s	20km	TX1310nm/RX1550nm	FP/PIN	SM	Yes	Simplex LC
SHFP-GE-B20-53	1.25Gb/s	20km	TX1550nm/RX1310nm	DFB/PIN	SM	Yes	Simplex LC
SHFP-GE-B20-35-SC	1.25Gb/s	20km	TX1310nm/RX1550nm	FP/PIN	SM	Yes	Simplex SC
SHFP-GE-B20-53-SC	1.25Gb/s	20km	TX1550nm/RX1310nm	DFB/PIN	SM	Yes	Simplex SC
SHFP-GE-B20-34	1.25Gb/s	20km	TX1310nm/RX1490nm	FP/PIN	SM	Yes	Simplex LC
SHFP-GE-B20-43	1.25Gb/s	20km	TX1490nm/RX1310nm	DFB/PIN	SM	Yes	Simplex LC
SHFP-GE-B20-34-SC	1.25Gb/s	20km	TX1310nm/RX1490nm	FP/PIN	SM	Yes	Simplex SC
SHFP-GE-B20-43-SC	1.25Gb/s	20km	TX1490nm/RX1310nm	DFB/PIN	SM	Yes	Simplex SC

“-E” for extended temperature -5°C to 85°C;

“-I” for extended temperature -40°C to 85°C.

Absolute Maximum Ratings

Parameter	Symbol	Min.	Typical	Max.	Unit
Storage Temperature	T_S	-40		+85	°C
Supply Voltage	V_CCT, R	-0.5		4	V
Relative Humidity	RH	0		85	%

Recommended Operating Environment:

Parameter		Symbol	Min.	Typical	Max.	Unit
Case operating Temperature	Industrial	T_C	-40		85	°C
	Extended		-5		85	°C
	Commercial		0		+70	°C
Supply Voltage		V_CC	3.135		3.465	V
Supply Current		Icc			300	mA
Inrush Current		I_surge			Icc+30	mA
Maximum Power		P_max			1	W

Electrical Characteristics (TOP = 0 to 70 °C, VCC = 3.135 to 3.465 Volts)

Parameter	Symbol	Min.	Typical	Max.	Unit	Note
Transmitter Section:
Input differential impedance	R_in	90	100	110	W	1
Single ended data input swing	V_i_{n PP}	250		1200	mVp-p
Transmit Disable Voltage	V_D	Vcc – 1.3		Vcc	V	2
Transmit Enable Voltage	V_EN	Vee		Vee+ 0.8	V
Transmit Disable Assert Time	T_dessert			10	us
Receiver Section:
Single ended data output swing	Vout,pp	300		800	mv	3
LOS Fault	V_losfault	Vcc – 0.5		V_{CC_}_host	V	5
LOS Normal	V_{los nor}_m	V_ee		V_ee+0.5	V	5
Power Supply Rejection	PSR	100			mVpp	6

Notes: 1. AC coupled. 2. Or open circuit. 3. Into 100 ohm differential termination. 4. 20 – 80 %

5. LOS is LVTTL. Logic 0 indicates normal operation; logic 1 indicates no signal detected.

6. All transceiver specifications are compliant with a power supply sinusoidal modulation of 20 Hz to 1.5MHz up to specified value applied through the power supply filtering network shown on page 23 of the Small Form-factor Pluggable (SFP) Transceiver Multi-Source Agreement (MSA), September 14, 2000.

Optical Parameters (T_OP = 0 to 70°C, VCC = 3.135 to 3.465 Volts)

Parameter		Symbol	Min.	Typical	Max.	Unit	Note
Transmitter Section:
Center Wavelength	SHFP-GE-B20-35	λ_c	1290	1310	1330	nm
	SHFP-GE-B20-34		1290	1310	1330
	SHFP-GE-B20-53		1530	1550	1570
	SHFP-GE-B20-43		1470	1490	1510
Spectral Width(RMS)		σ_RMS			4	nm
Optical Output Power		P_out	-9		-3	dBm	1
Extinction Ratio		ER	9			dB
Optical Rise/Fall Time		t_r / t_f			260	ps	2
Relative Intensity Noise		RIN			-120	dB/Hz
Total Jitter Contribution		TX Δ TJ			0.284	UI	3
Eye Mask for Optical Output		Compliant with IEEE802.3 z (class 1 laser safety)
Receiver Section:
Optical Input Wavelength	SHFP-GE-B20-35	λ_c	1530	1550	1570	nm
	SHFP-GE-B20-34		1470	1490	1510
	SHFP-GE-B20-53		1290	1310	1330
	SHFP-GE-B20-43		1290	1310	1330
Receiver Overload		P_ol	-3			dBm	4
RX Sensitivity		Sen			-23	dBm	4
RX_LOS Assert		LOS_A	-35			dBm
RX_LOS De-assert		LOS_D			-25	dBm
RX_LOS Hysteresis		LOS _H	0.5			dB
General Specifications:
Data Rate		BR		1.25		Gb/s
Bit Error Rate		BER			10^-12
Max. Supported Link Length on 9/125μm SMF@1.25Gb/s		L_MAX		20		km
Total System Budget		LB	14			dB

Ø Pin Function Definitions

Pin No	Name	Function	Plug Seq	Notes
1	VeeT	Transmitter Ground	1	1
2	TX Fault	Transmitter Fault Indication	3
3	TX Disable	Transmitter Disable	3	2
4	MOD-DEF2	Module Definition	2	3
5	MOD-DEF1	Module Definition 1	3	3
6	MOD-DEF0	Module Definition 0	3	3
7	Rate Select	Not Connected	3	4
8	LOS	Loss of Signal	3	5
9	VeeR	Receiver Ground	1	1
10	VeeR	Receiver Ground	1	1
11	VeeR	Receiver Ground		1
12	RD-	Inv. Received Data Out	3	6
13	RD+	Received Data Out	3	6
14	VeeR	Receiver Ground	3	1
15	VccR	Receiver Power	2	1
16	VccT	Transmitter Power	2
17	VeeT	Transmitter Ground	1
18	TD+	Transmit Data In	3	6
19	TD-	Inv. Transmit In	3	6
20	VeeT	Transmitter Ground	1

Notes: 1. Circuit ground is internally isolated from chassis ground.

2. Laser output disabled on TDIS >2.0V or open, enabled on TDIS <0.8V.

3. Should be pulled up with 4.7k - 10 kohms on host board to a voltage between 2.0V and 3.6V. MOD_DEF(0) pulls line low to indicate module is plugged in.

4. Rate select is not used

5. LOS is open collector output. Should be pulled up with 4.7k – 10 kohms on host board to a voltage between 2.0V and 3.6V. Logic 0 indicates normal operation; logic 1 indicates loss of signal.

6. AC Coupled

Ø SFP Module EEPROM Information and Management

The SFP modules implement the 2-wire serial communication protocol as defined in the SFP -8472. The serial ID information of the SFP modules and Digital Diagnostic Monitor parameters can be accessed through the I²C interface at address A0h and A2h. The memory is mapped in Table 1. Detailed ID information (A0h) is listed in Table 2. And the DDM specification at address A2h. For more details of the memory map and byte definitions, please refer to the SFF-8472, “Digital Diagnostic Monitoring Interface for Optical Transceivers”. The DDM parameters have been internally calibrated.
