Product Details:

Place of Origin: SHENZHEN,CHINA
Brand Name: NEWBRIDGE
Certification: FCC,CE
Model Number: ND6210

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: packing can be done by customer's requested, usually used in carton
Delivery Time: According to the quantiy and stocking , 3-4 working days after payment
Payment Terms: T/T , Western Union
Supply Ability: According to the different products , the monthly output is different
Contact Now
Detailed Product Description
Model: ND6210 SDI Signal Range: 0.8V P-p
SDI Impedance: 75 Ohms Power Supply: 5~12DC
Storage Temperature: -30°C ~ 70°C / -22°F ~158°F Dimension: 112x 117x 25 Mm / 4.40x 4.46 X 0.98 Inches

3G SDI Fiber Optic Transceiver 75ohms , Convenient HD Multimode Transceiver

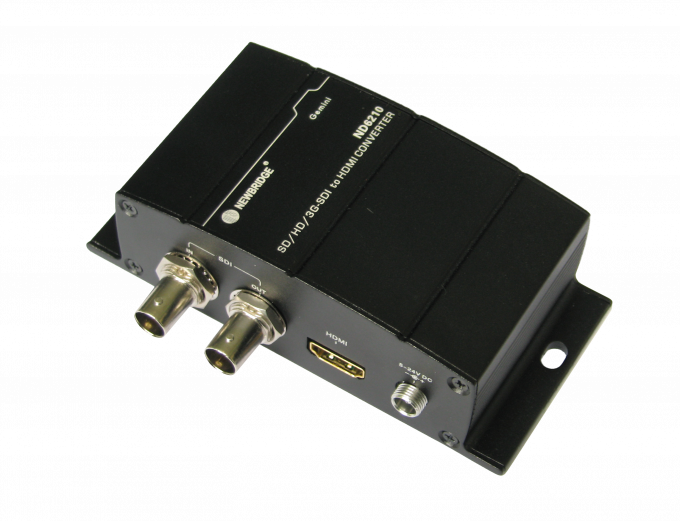

1. Overview

Newbridge® ND6210 converter is an equipment which is exclusive using in converting single channel SDI signal to HDMI signal . It integrates SDI transmitter and HDMI demodulator which conveniently converts SDI signal to HDMI signal, at the mean time, it will separate and convert SDI signal ‘s audio signal ,and then it will embed it to HDMI signal synchronously to realize the video and audio transmitting synchronously.
The device is designed to be able to controlled switch ,User can choose HDMI output or DVI output by it.in the mean time,this equipment has one channel loop back function in SDI signal output,User can monitoring expediently in this locality.



2. Features

3G SDI Fiber Optic Transceiver 75ohms , Convenient HD Multimode Transceiver

ND6210

l Support SDI input format: 480i, 576i, 720p30/50/60, 1080p24/25/30, 1080i 50/60, 1080p50/60.

  • Support SMPTE 425M(A level and B level),SMPTE424M SMPTE292M,SMPTE259M-C.
  • Carry 1 channel SDI signal looping out.
  • Automatically embed SDI audio signal to HDMI signal.
  • HDMI port support digital DVI signal.
  • Can choose HDMI output or DVI output

l Automatically detect the HDMI EDID information adaptive HDMI best mode

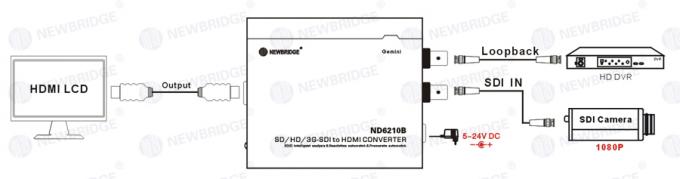

3.Application Diagram

3G SDI Fiber Optic Transceiver 75ohms , Convenient HD Multimode Transceiver

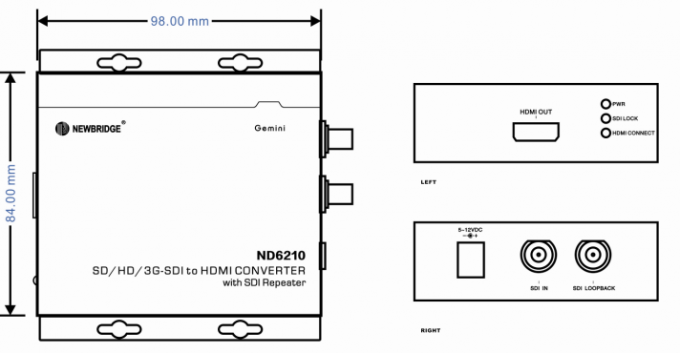

4. Dimensions

3G SDI Fiber Optic Transceiver 75ohms , Convenient HD Multimode Transceiver

5. Specifications

Model NB6210
Input Interface Type 1x BNC SDI
Input Signal SD-SDI (270Mbps), HD-SDI (1.485Gbps), 3G-SDI (2.97Gbps)
Support Input Format

SD: 525i @ 59.94Hz, 625i @ 50Hz

HD: 720p @ 23.98/24Hz/25Hz/29.97Hz/30Hz/50Hz / 60Hz

1080i @ 50Hz / 59.94Hz / 60Hz

1080p @23.98Hz/24Hz/25Hz/29.97Hz/30Hz

3G:1080p @ 50Hz / 60Hz

SDI Signal Range 0.8V p-p
SDI Impedance 75 ohms
SDI Coupling Type AC Coupling
SDI Loop Out Interface 1x BNC SDI
HDMI/DVI Output Interface 1x HDMI
Frequency Bandwidth 165MHz/ up to standard with HDCP :HDMI 1.3
Power Supply 5~12DC
Power Consumption 3~5 Watts
Operating Temperature -10°C ~ 60°C / 14°F ~ 140°F
Storage Temperature -30°C ~ 70°C / -22°F ~158°F
Relative Humidity 20~90% RH (Non-condensation)
Dimension 112x 117x 25 mm / 4.40x 4.46 x 0.98 inches
Weight 280g

6. Order Information

Part No Description of product Unit
ND6210 SD/HD/3G-SDI to HDMI Converter pcs
