Model: | ND6810P | SDI Signal Range: | 0.8V P-p |
---|---|---|---|
SDI Impedance: | 75 Ohms | Power Supply: | DC 12V, 1A |
Storage Temperature: | -30°C ~ 70°C / -22°F ~158°F | Dimension: | 158 X 120x 36 Mm / 6.22 X 4.72 X 1.42 Inches |
Weight: | 300g |
Automatical 3G Fiber Optic Transceiver Support All Type SDI Resolution
1. Overview

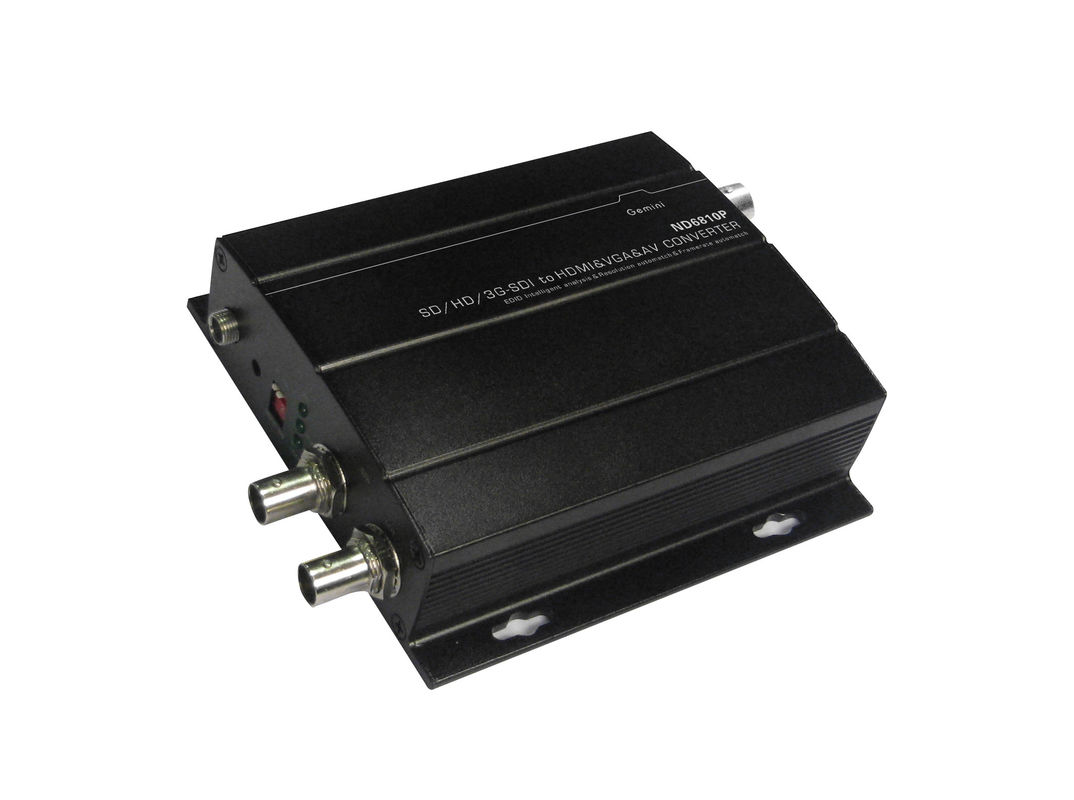

Newbridge® ND6810P SD/HD/3G-SDI to HDMI & VGA & AV Converter converts single channel SDI signal to HDMI signal and VGA signal and AV(CVBS signal). It integrates SDI Cable equalizer and re-clocker to enhance video performance and stability. Simultaneously it also separates and converts the audio signal of SDI, then embed it to HDMI signal or VGA Signal or AV signal . Then outputanalog audio DACs. It supports multiple resolution up to 1920x1080@60HZ. It is without scaler, while it supports the most popular resolutions to ensure high compatibility with wide brands of PC and HDTV. It provides cheaper solution of connecting SDI to HDTV and VGA terminal.
2.Features
| l Support all type SDI resolution: l SMPTE 425M (A level and B level), SMPTE424M, SMPTE292M, SMPTE259M-C. l Carry 1 channel SDI signal loop out. l Support for OSD menu operation interface l Automatically detect the HDMI EDID information adaptive HDMI best mode l Support all formats asymmetric conversion l The signal lost blue screen warning l VGA output format can be specified 720p/1080p l Automatically embed SDI audio signal to HDMI signal. l User selectable output format (HDMI and VGA and AV) l Intelligent adaptation of PAL / NTSC |
3.Application Diagram
4. Dimensions
5. Specifications
Model | ND6810P |
Input Interface | 1x BNC SDI |
Input Signal Type | SD-SDI (270Mbps), HD-SDI (1.485Gbps), 3G-SDI (2.97Gbps) |
Support Input Format | SD: 525i @ 59.94Hz, 625i @ 50Hz HD: 720p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz 720p @ 50Hz / 59.94Hz / 60Hz 1080i @ 50Hz / 59.94Hz / 60Hz 1080p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz 3G: 1080p @ 50Hz / 59.94Hz / 60Hz |
SDI Signal Range | 0.8V p-p |
SDI Impedance | 75 ohms |
SDI Coupling Type | AC Coupling |
Max. Input Coax Length | Belden 1694A SD-SDI 400m / 1300ft ; HD-SDI 200m / 600ft ; 3G-SDI 140m / 450ft |
SDI Loop Out Interface | 1x BNC SDI |
HDMI/DVI Output Interface | 1x HDMI 1.3 |
Frequency Bandwidth | 165MHz/ up to standard with HDCP :HDMI 1.3 |
VGA Output | 1x VGA |
AV (CVBS) | 1 x BNC –F |
Power Supply | DC 12V, 1A |
Power Consumption | 3~6 Watts |
Operating Temperature | -10°C ~ 60°C / 14°F ~ 140°F |
Storage Temperature | -30°C ~ 70°C / -22°F ~158°F |
Relative Humidity | 20~90% RH (Non-condensation) |
Dimension | 158 x 120x 36 mm / 6.22 x 4.72 x 1.42 inches |
Weight | 300g |
6. Order Information
Part No | Description of product | Unit |
ND6810P | SD/HD/3G-SDI to HDMI & VGA & AV Converter | pcs |
