60Hz HDMI Fiber Optic Transceiver 300g , Single Mode Transceiver SD SDI 400m 1300ft

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	NEWBRIDGE
Certification:	FCC,CE
Model Number:	ND6325

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiation
Packaging Details:	packing can be done by customer's requested, usually used in carton
Delivery Time:	According to the quantiy and stocking , 3-4 working days after payment
Payment Terms:	T/T , Western Union
Supply Ability:	According to the different products , the monthly output is different

Contact Now

Detailed Product Description

Model:	ND6325	SDI Signal Range:	0.8V P-p
SDI Impedance:	75 Ohms	Power Supply:	5v~24v DC
Storage Temperature:	-30°C ~ 70°C / -22°F ~158°F	Dimension:	158 X 120x 36 Mm / 6.22 X 4.72 X 1.42 Inches

60Hz HDMI Fiber Optic Transceiver 300g , Single Mode Transceiver SD SDI 400m 1300ft

1. Overview

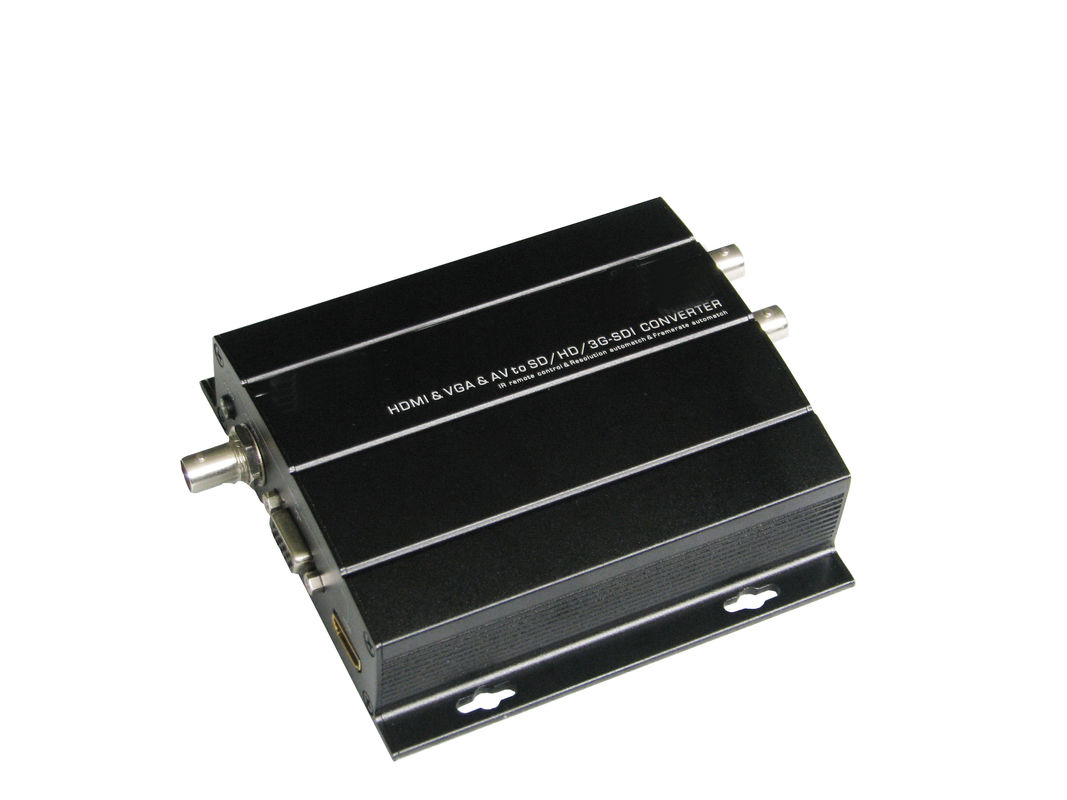

Newbridge® ND6325 HDMI & VGA & AV to SD/HD/3G-SDI Converts a single channel HDMI signals or VGA signals or AV(CVBS) signal to SD/HD/3G-SDI signals. It integrates SDI Cable equalizer and re-clocker to enhance video performance and stability. Simultaneously, it also Integrates and converts the audio signals of CABS or VGA, then embed it to SDI signal .It supports multiple resolution up to 1920x1080@60HZ. It is without scaler, while it supports the most popular resolutions to ensure high compatibility with wide brands of PC and HDTV. It provides cheaper solution of connecting HDTV and PC and AV(CVBS) to SDI

2．Features

60Hz HDMI Fiber Optic Transceiver 300g , Single Mode Transceiver SD SDI 400m 1300ft

ND6325

l Support all type SDI resolution

l SMPTE 425M (A level and B level), SMPTE424M, SMPTE292M, SMPTE259M-C.

l Carry 2 channel SDI signal out.

l Support for OSD menu operation interface

l Automatically detect the HDMI EDID information adaptive HDMI best mode

l Support all formats asymmetric conversion

l The signal lost blue screen warning

l VGA output format can be specified 720p/1080p

l Automatically embed SDI audio signal to HDMI signal.

l User selectable output format

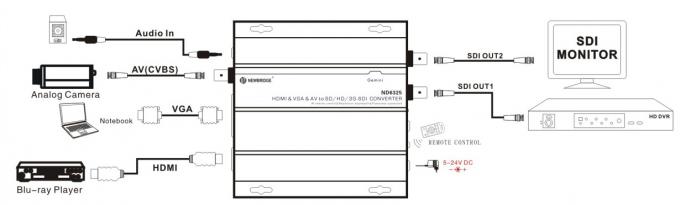

3．Application Diagram

60Hz HDMI Fiber Optic Transceiver 300g , Single Mode Transceiver SD SDI 400m 1300ft

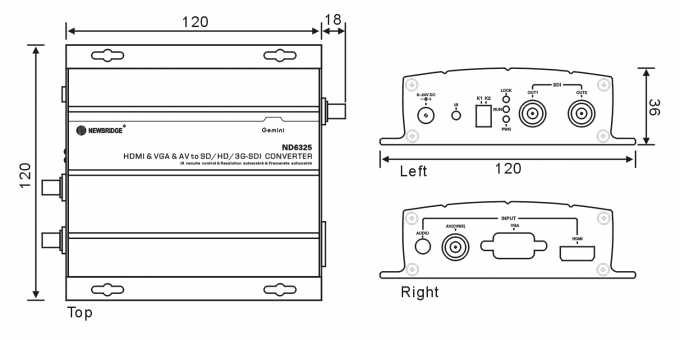

4. Dimensions

60Hz HDMI Fiber Optic Transceiver 300g , Single Mode Transceiver SD SDI 400m 1300ft

ND6325

5. Specifications

Model	ND6325
HDMI Input	1x HDMI
VGA Input	1x VGA
AV (CVBS) Input	1 x BNC –F
Input Signal Type	SD-SDI (270Mbps), HD-SDI (1.485Gbps), 3G-SDI (2.97Gbps)
Support Input Format	SD: 525i @ 59.94Hz, 625i @ 50Hz HD: 720p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz 720p @ 50Hz / 59.94Hz / 60Hz 1080i @ 50Hz / 59.94Hz / 60Hz 1080p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz 3G: 1080p @ 50Hz / 59.94Hz / 60Hz
SDI Signal Range	0.8V p-p
SDI Impedance	75 ohms
SDI Coupling Type	AC Coupling
Max. Output Coax Length	Belden 1694A SD-SDI 400m / 1300ft ; HD-SDI 200m / 600ft ; 3G-SDI 140m / 450ft
SDI Out Interface	2x BNC SDI
Frequency Bandwidth	165MHz/ up to standard with HDCP :HDMI 1.3
Power Supply	5V~24V DC
Power Consumption	3~6 Watts
Operating Temperature	-10°C ~ 60°C / 14°F ~ 140°F
Storage Temperature	-30°C ~ 70°C / -22°F ~158°F
Relative Humidity	20~90% RH (Non-condensation)
Dimension	158 x 120x 36 mm / 6.22 x 4.72 x 1.42 inches
Weight	300g
