Model: | ND6810HV | SDI Signal Range: | 0.8V P-p |
---|---|---|---|
SDI Impedance: | 75 Ohms | Power Supply: | DC 12V, 1A |
Storage Temperature: | -30°C ~ 70°C / -22°F ~158°F | Dimension: | 158 X 120x 36 Mm / 6.22 X 4.72 X 1.42 Inches |

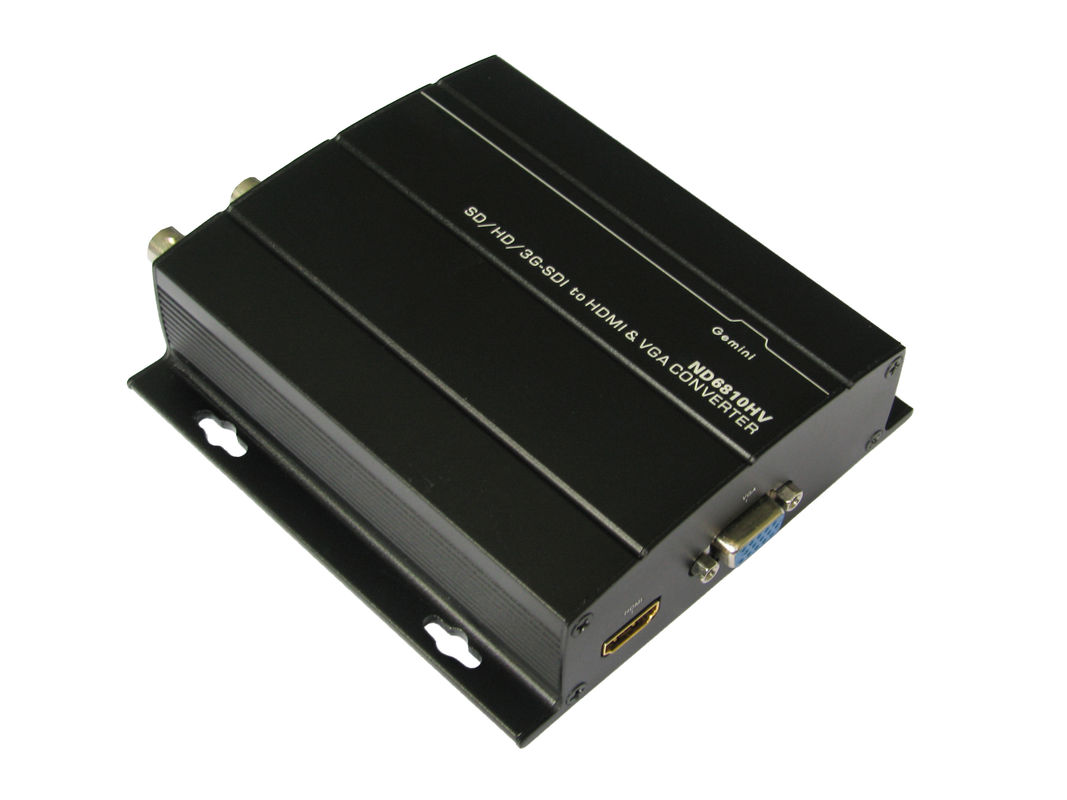

DC 12V 1A Multimode Fiber Transceiver 3G 1080P
1. Overview
Newbridge® ND6810HA SD/HD/3G-SDI to HDMI & AV(CVBS) Converter converts single channel SDI signal to HDMI signal and CVBS signal. It integrates SDI Cable equalizer and re-clocker to enhance video performance and stability. Simultaneously, it also separates and converts the audio signal of SDI, embed it to HDMI signal or AV signal synchronously .Then output analog audio DACs
2.Features
|
l Support all type SDI resolution: SD-SDI:480i,576i HD-SDI:720p24/25/30/50/59.94/60 all frame rate. 1080i all frame rate,1035i all frame rate 1080p all frame rate 3G-SDI:1080p all frame rate Support l SMPTE 425M, SMPTE424M, SMPTE292M, SMPTE259M-C. l Carry 1 channel SDI signal loop out. l Max. cable length (Belden 1694A): SD-SDI 400m/1300ft, HD-SDI 200m/600ft, 3G-SDI l 140m/450ft l Automatically embed SDI audio signal to HDMI signal. l User selectable output format (HDMI and CVBS)
|
3.Application Diagram
4. Dimensions
5. Specifications
Model | ND6810HA |
Input Interface | 1x BNC SDI |
Input Signal Type |
SD-SDI (270Mbps), HD-SDI (1.485Gbps), 3G-SDI (2.97Gbps) |
Support Input Format |
SD: 525i @ 59.94Hz, 625i @ 50Hz HD: 720p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz 720p @ 50Hz / 59.94Hz / 60Hz 1080i @ 50Hz / 59.94Hz / 60Hz 1080p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz 3G: 1080p @ 50Hz / 59.94Hz / 60Hz |
SDI Signal Range | 0.8V p-p |
SDI Impedance | 75 ohms |
SDI Coupling Type | AC Coupling |
Max. Input Coax Length |
Belden 1694A SD-SDI 400m / 1300ft ; HD-SDI 200m / 600ft ; 3G-SDI 140m / 450ft |
SDI Loop Out Interface | 1x BNC SDI |
HDMI/DVI Output Interface | 1x HDMI 1.3 |
Frequency Bandwidth | 165MHz/ up to standard with HDCP :HDMI 1.3 |
AV (CVBS) Output Format | CVBS: PAL / NTSC |
Power Supply | DC 12V, 1A |
Power Consumption | 3~6 Watts |
Operating Temperature | -10°C ~ 60°C / 14°F ~ 140°F |
Storage Temperature | -30°C ~ 70°C / -22°F ~158°F |
Relative Humidity | 20~90% RH (Non-condensation) |
Dimension | 158 x 120x 36 mm / 6.22 x 4.72 x 1.42 inches |
Weight | 300g |
6. Order Information
Part No | Description of product | Unit |
ND6810HA | SD/HD/3G-SDI to HDMI & AV Converter | pcs |
