Impedance: | 75Ω | Power Supply: | DC 5V |
---|---|---|---|
Working Temperature: | - 25 ~ 75 ℃ | Working Humidity: | 10 ~ 60% |
Product Dimension: | 118*82*27mm | Output Video Systems: | PAL/NTSC |
HDMI to Composite / S-Video Converter with L/R Stereo Audio output
Introduction
This converter box is designed to convert HDMI to either Composite Video or S-Video. It allows the devices only equipped HDMI output to be connected to analog TV. It is mostly applied in AV equipment testing.
Feature
★ Input HDMI Resolution:480p(60Hz), 576P(50Hz), 720p(50Hz/60Hz),1080i(50Hz/60Hz), 1080p(50Hz/60Hz)
★ Output Signal: Conposite Video (1.0Vpp), S-Video (Y:1.0Vpp, C:0.3Vpp);
★ Output Video Systems: PAL/NTSC;
★ Output Video Impedance:75 Ω;
★ Compatible with HDMI 1.3 and HDCP;
★ Power Supply: DC 5V;
★ Working Temperature:-25 ℃~75℃
★ Working Humidity: 10%~60%
★ Product Dimension: 118*82*27mm(L*W*H)
Interface Specification

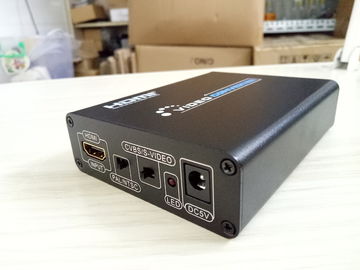

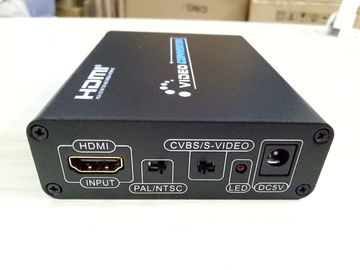

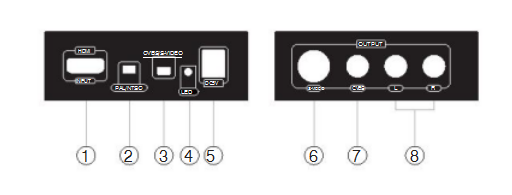

①HDMI In: To connect HD device sources
②PAL/NTSC Switch: select PAL or NTSC
③ CVBS/S-Video Switch: Select Composite Video or S-Video as
④LED: Power indicator
⑤DC 5V: To connect DC 5V power supply

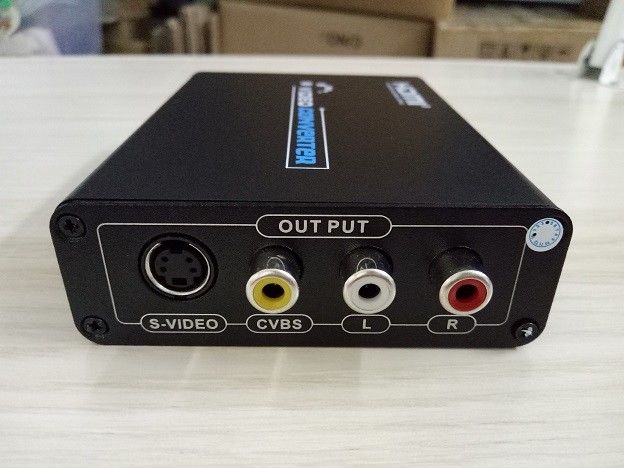

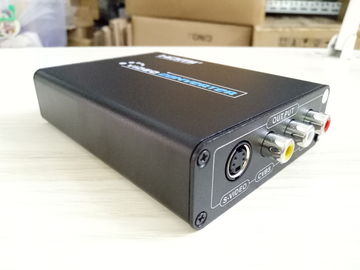

⑥S-Video Out: S-Video output
⑦CVBS Out: Composite Video output
⑧L/R: Audio L/R output
Accessories
Item |
Qty(pcs) |
Remark |
Power Supply |
1 | DC 5V |
AV Cable |
1 | |
S-Video Cable |
1 | |
User Manual |
1 |

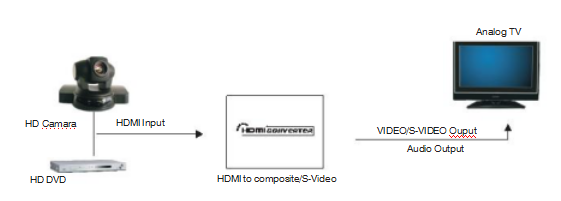

Connection Image
Note:This product doesn’t support simultaneous output of Composite Video and S-Video. Please select either one of them by switch Button on the unit.
