| Power Adapter Voltage: | AC 110V-240V | POE Ethernet Port: | 1～16 Port : 10/100Mbps |
|---|---|---|---|
| SFP Port: | SFP Port: 1000Mbps | Transmission Medium: | Cat5/5e/6 Standard Network Cable |
| Packet Buffer Memory: | 1Mbits | Consumption: | 65W(52V 1.25A) |
| Ethernet Port: | Uplink Port : 10/100Mbps |
1. Overview

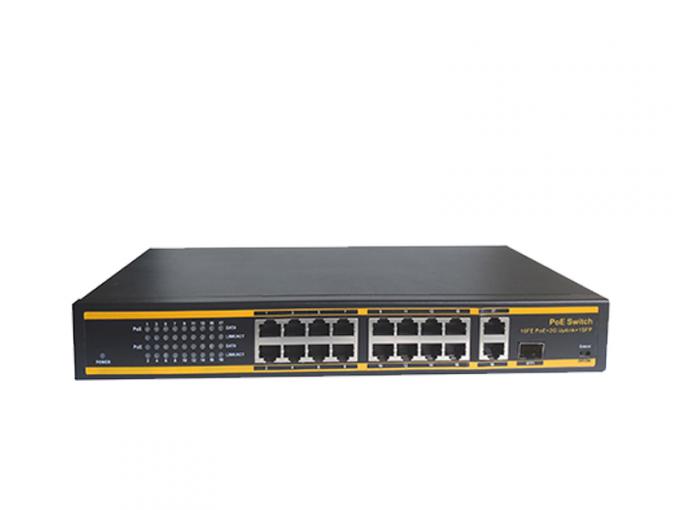

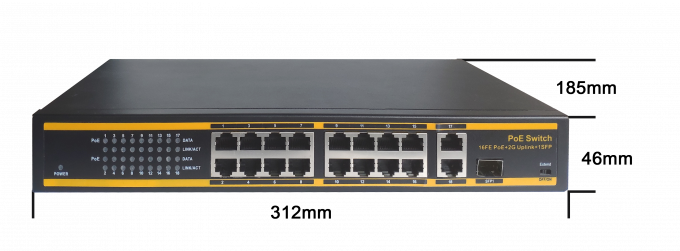

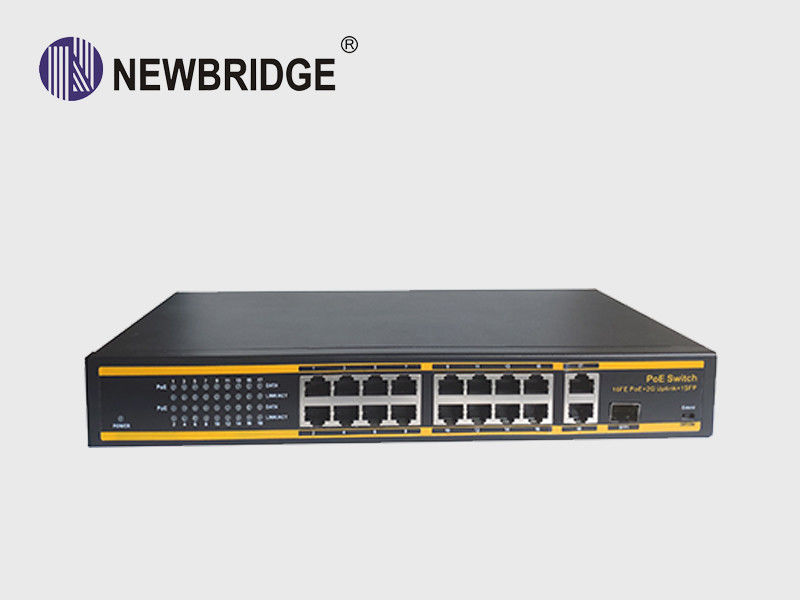

Newbridge® The switch is a compact 16+3 port PoE Switch,With 16 *10/100Mbps PoE Switch, 2* 10/100/1000Mbps Uplink Ports and 1*10/100/1000Mbps SFP Port(combo),13 inch,The 16*PoE ports can automatically detect and provide power for any connected 802.3af/at Powered Device(PD),such as VOIP phones,IP Cameras, All PoE ports support the IEE802.3af/at standard,with a maximum output of 30W each port.
2.Feature
|
|
l 16*10/100Mbps PoE ports, 2*10/100/1000Mbps uplink port,1 1000M SFP combo l 13 inch,Desk type or long hanger up to 19 inch l Support IEEE802.3af/at l Support restrain network storm, VLAN function l Support Max Transmission distance up to 250m with PoE Power l All port supported by MDI/MDIX auto flip and self-negotiation l Built-in power supply; l Maximum power of single PoE port: 30 W;
l Adopts store-and-forward architecture; l Fanless, natural cooling, small,compact and quiet design, suitable for desktop or wall
|

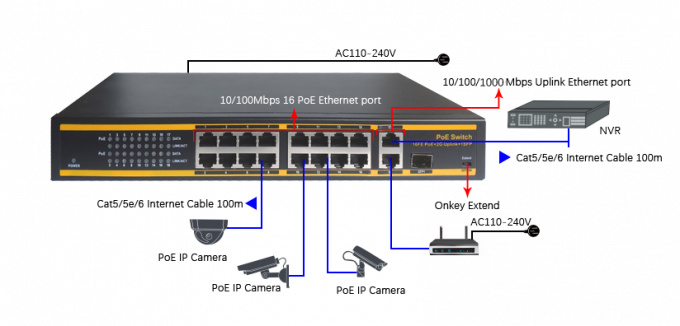

3．Application Diagram
5. Specifications
| Item | Description | ||
| Power | Power Adapter Voltage | AC 110V-240V | |
| Consumption | 250W(52V,4.8A) | ||
|
Network Connector |
Network Port |
POE Ethernet Port | 1～16 Port : 10/100Mbps |
| Ethernet port | Uplink Port : 10/100/1000Mbps | ||
|
SFP Port |
SFP Port: 1000Mbps |
||
|
Transmission Distance |
1～16 Port : 100Mbps:0~100m; 10Mbps: 0~250m; |
||
| Uplink Port : 0 ~ 100m | |||
|
SFP: depends on the optical module(20km/40km...) |
|||
| Transmission Medium | Cat5/5e/6 standard network cable | ||
|
Network Switch |
Network Standard |
IEEE802.3/802.3u, IEEE802.3x,IEEE802.ab |
|
| Switching Capacity | 7.2Gbps | ||
| Packet Buffer Memory | 1Mbits | ||
| Throughput | 5.3568Mbit | ||
| MAC Table | 2K | ||
|
Packet Forwarding Rate |
10Mbps:14880pps/port 100Mbps:148800pps/port 1000Mbps:1488000pps/port |
||
|
Power Over Ethernet |
PoE Standard | IEEE 802.3af/at | |
| PoE Power Supply | End-Span(1/2+;3/6-) | ||
| PoE Power | af=15.4W,at=30W | ||
|
RJ45 port |
Port Function |
Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode | |
|
LED Indicator |
LED Indicator |
LINK/ACT.100Mbps;PoE Status Indicator; Power indicator;Extender | |
|
Environmental |
Working temperature | 0℃~55℃ | |
| Relative Humidity | 20~95% | ||
| Storage temperature | -20℃~70℃ | ||
|
Mechanical |
Dimension (L×W×H) | 312mm*185mm*46mm | |
| Color | Black | ||
| Weight | 2.1kg | ||
6. Order Information
| Part No | Description of product | Unit |
| ND1PD1603FGX | 19 ports switch with 16*10/100M bit PoE ports,2*10/100/1000M Uplink Port and 1*SFP combo,PoE Standard: IEEE 802.3af/at,PoE data & power transmission distance 100meters(100Mbps),250meters(10Mbps) | pc |
