| Place of Origin: | SHENZHEN,CHINA |
| Brand Name: | NEWBRIDGE |
| Certification: | FCC,CE |
| Model Number: | ND-X820-1FX8TX-SC |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | packing can be done by customer's requested, usually used in carton |
| Delivery Time: | According to the quantiy and stocking , 3-4 working days after payment |
| Payment Terms: | T/T , Western Union |
| Supply Ability: | 3000pcs per month |
| Input Power: | 12~48V DC (Terminal Block) | Protection: | 6KV Lightening Protection, IP40 Protection |
|---|---|---|---|
| Installation: | DIN-Rail Or Wall Mounts | Working Temperature: | -40～+85℃ |
| Dimension (L×W×H): | 143mm× 101mm× 44mm | Product Weight: | 0.65kg |
| Interface: | 8x10/100Base-T Ethernet Port + 1x 100Mbps SC Port |
1. Overview

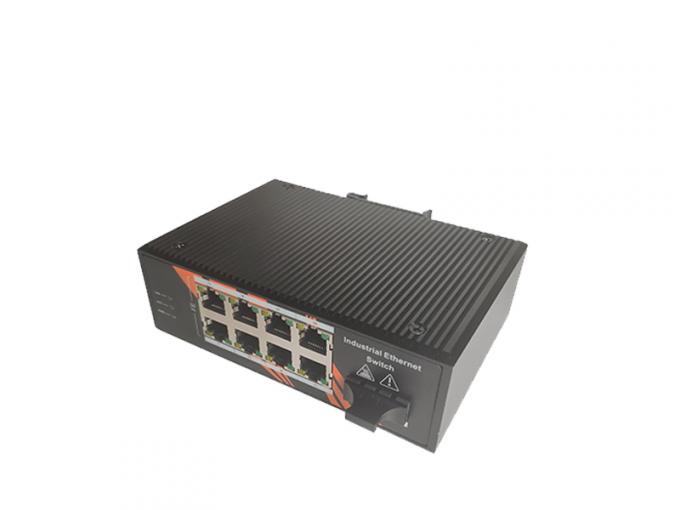

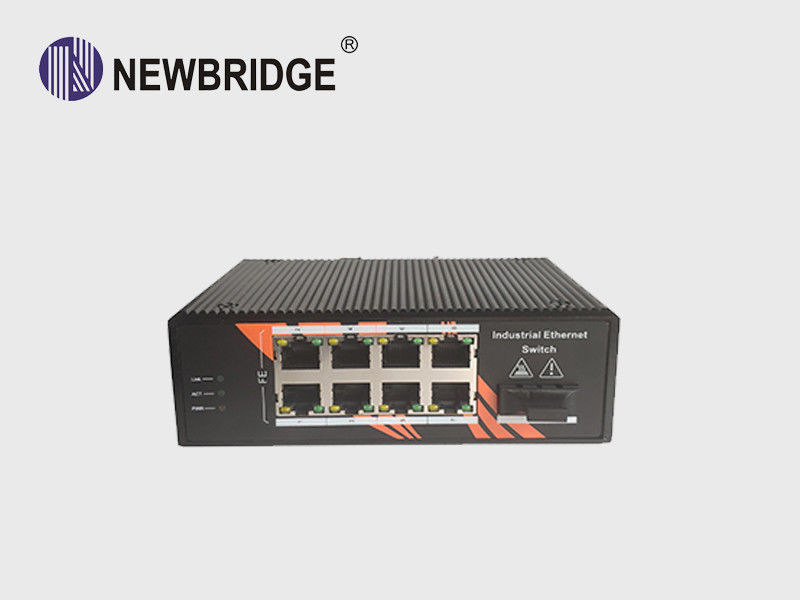

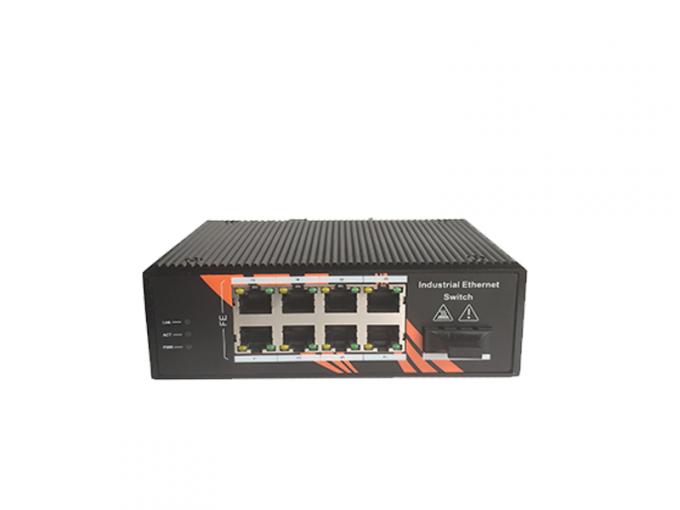

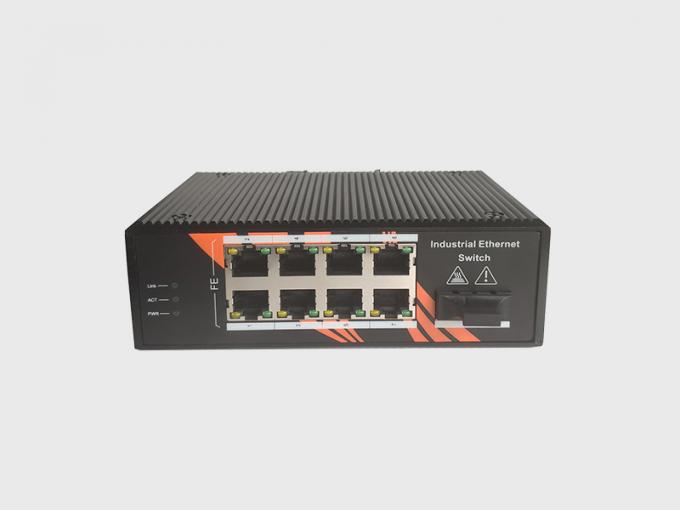

Newbridge®ND-X820-1FX8TX-SC Industrial Ethernet Switches uses store-forward architecture, fanless and energy-saving design. The advantage of product are small, convenient and easy to maintain. The product design complies with the Ethernet standard, adding lightning protection, anti-static protection measures. It applies to the wide range of operating temperature from -40℃ ~ +85℃ with stable and reliable performance. The device can be widely applied to various broadband data transmission fields such as intelligent transportation, telecommunications, security, financial securities, customs, shipping, power, water conservancy and oil fields.
2．Features
|
ND-X820-1FX8TX-SC |
l Automatic MAC address learning and aging l 10/100Mbps Auto-negotiation , auto-MDI-MDI-X l LED indicators for monitoring power/link/activity l Supports 10/100Mbps-Full/Half-duplex l Supports DIN-Rail installation l Supports Daisy-Chain connection l Supports Broadcast Storm Control l Transmission data max. Support:1518 bytes l Super lightening protection, IP40 protection. l Excellent heat elimination without cooling fan. l Redundant dual DC power inputs. l Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City. l Harsh industrial environment or higher requirement l 6KV port Lightning protection l -40℃~+85℃ operating temperature range. l 3-Year Warranty
|
3. Specifications
|
Product Name |
8 Port 10/100Mbps Industrial Fiber Switch |
| Product Model | ND-X820-1FX8TX-SC |
| Interface | 8x10/100Base-T Ethernet port + 1x 100Mbps SC port |
|
Network Protocols |
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX; IEEE802.3ab 100Base-T; IEEE802.3z 100Base-X; IEEE802.3x; |
|
Network Media |
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) |
| Fiber Media |
Multi-mode: 2KM Single-mode: 20/40/60/80KM Interface:SC |
|
Performance Specification |
Bandwidth: 1.8Gbps Packet Buffer Memory:1M 10 Mbps Packet Forwarding Rate:14880 pps/port 100Mbps Packet Forwarfding Rate:148800 pps/port MAC Address Table: 4M Forwarding Delay:<3us |
| Forwarding Mode | Store-and-Forward |
| Protection | 6KV Lightening protection, IP40 protection |
| LED Indicators | Power: PWR; Link; PoE; Link/Act |
|
Power Supply |
Input Power: 12~48VDC (Terminal Block) Input Power:2* 12~48VDC(Dual power redundancy backup) Working Consumption : <5W Connectors : Phoenix terminal Overload protection :20A Reverse polarity protection : 30s Alarm contact : No |
| Other Specifications | |
|
Working Environment |
Working temperature: -40～+85℃ ; Storage temperature: -45～+85℃ Relative Humidity: 5%~95 %( no condensation) |
|
Industry Standard |
FCC CFR47 Part 15,EN55022/CISPR22, Class A EMS: IEC6100-4-2 (ESD): ±8kV (contact), ±15kV (air) IEC6100-4-3 (RS): 10V/m (80MHz-2GHz) IEC6100-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC6100-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC6100-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) IEC6100-4-16 (Common mode conduction): 30V (cont.), 300V (1s) IEC (EN) 61000-4-8:support IEC 60068-2-27(Shock):support IEC 60068-2-32(Freefall):support IEC 60068-2-6(Vibration):support |
| Shell | IP40 protect grade, metal shell |
| Installation | DIN-Rail or Wall mounts |
|
Packing List |
1×Industrial PoE Switch (plus terminal block) 1×User Manual/Certificate of quality/Warranty card 1×DIN-Rail mounting kit |
|
Certification |
CE mark, commercial; FCC Part 15 Class B; VCCI Class B EN 55022 (CISPR 22), Class B |
| MTBF | 300,000 hours |
| Weight & Size |
Product Weight: 0.65KG Product size (L×W×H): 143mm× 101mm× 44mm |
| Warranty | 3-years |
4. Order Information
| Part No | Description of product | Unit |
| ND-X820-1FX8TX-SC | 8*10/100 Base-Tx Non-managed Fiber Switch,1*100M SC port ,Industrial , aluminum alloy, DIN Rail, DC12~48V power supply ,Wide temperature (-40°C-85°C),CE-FCC-RoHS - DC power supply is not included by default. | pc |
